| Marketing Description |

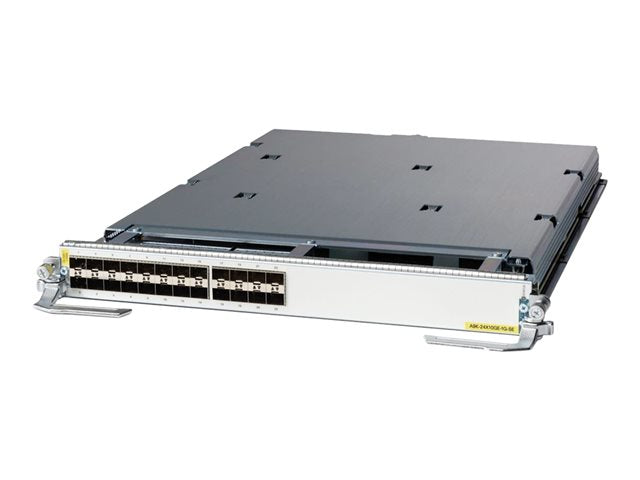

The Cisco ASR 9000 Series 24-Port 10 Gigabit Ethernet Line Cards are fully compatible with all Cisco ASR 9000 Series chassis, route switch processors (RSPs), and line cards. No hardware upgrade to the chassis or cooling system is required. Total bandwidth is dependent on the number and type of RSPs installed.
The line cards, with their synchronization circuitry and dedicated backplane timing traces for accessing the RSP's Stratum-3 subsystem, provide standards-based line-interface functions for delivering and deriving transport-class network timing, allowing support of network-synchronized services and applications such as mobile backhaul and time-division multiplexing (TDM) migration. Recognizing that real-time media dominate next-generation services, Cisco has integrated media-monitoring technology into the Cisco ASR 9000 Series Ethernet line cards. This multimedia technology allows real-time monitoring and statistics collection of real-time video and voice flows, facilitating proactive maintenance and management of today's comprehensive media services. |
| Product Features |
-
Enhanced Small Form-Factor Pluggable (SFP+) interfaces
Provide the capability to mix and match 10-Gigabit Ethernet interface types across a single line card.
-
G.709 and Advanced FEC
Standard G.709 providing transmission-layer operations, administration, and maintenance; G.709 Standard FEC and Advanced FEC for enhanced transmission system performance
-
Video monitoring
It provides real-time monitoring of video flows, including issuance of an alarm upon degradation.
-
Synchronous Ethernet
Derives and provides synchronization from and to Ethernet interfaces, Cisco ASR 9000 Series RSPs, and network synchronization interfaces
|
| General |
| Device Type |
Expansion module |
| Form Factor |
Plug-in module |
| Networking |
| Ports |
10 Gigabit SFP+ / SFP (mini-GBIC) x 24 |
| Connectivity Technology |
Wired |
| Data Link Protocol |
10 Gigabit Ethernet |
| Features |
Flow control, full duplex capability, MPLS support, QoS, NetFlow, VCCV |
| Compliant Standards |
IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ba, ITU-T Y.1731 |
| Expansion / Connectivity |
| Interfaces |
24 x 10GBase-X - SFP/SFP+ |
| Miscellaneous |
| Compliant Standards |
FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EMC, ICES-003 Class A, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, IEC 60825, VCCI Class A, ETSI 300 019, IEC/UL/CSA/EN 60950-1, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2 |
| Software / System Requirements |
| OS Required |
Cisco IOS XR 6.2.1 |
| Dimensions & Weight |
| Width |
4.14 cm |
| Depth |
55.93 cm |
| Height |
36.83 cm |
| Weight |
12.7 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 85% |
| Compatibility Information |
| Designed For |
Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2 |
