| Marketing Description |

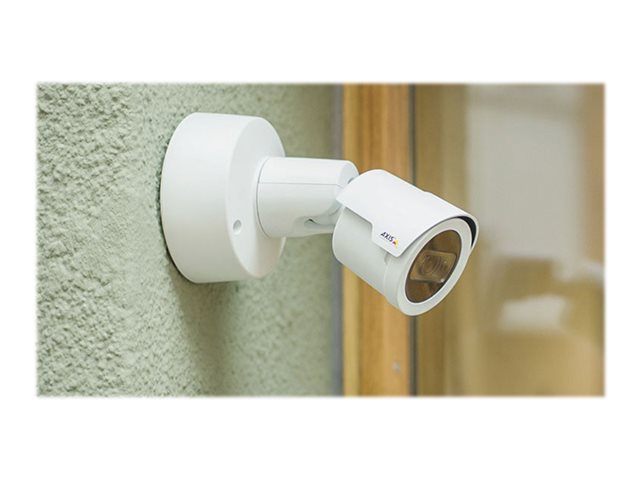

| M2026-LE Mk II Network Camera is a small bullet camera that offers Axis excellence at a surprisingly affordable price. It has built-in IR illumination and 4MP/Quad HD 1440p video quality, and it's a perfect choice when you need small, easy-to-install cameras both outdoors and in. The camera is available in both black and white. |
| Product Features |
-
Affordable Axis excellence
With its built-in IR LEDs and 4 MP / Quad HD 1440p image quality, M2026-LE Mk II delivers high-resolution surveillance even in the dark. A single camera covers a wide 130° horizontal field of view, which helps keep costs low. WDR - Dynamic Capture ensures optimized footage of backlit scenes. And for monitoring long, narrow areas, Axis Corridor Format provides a "portrait"-shaped video stream that maximizes image quality and eliminates bandwidth and storage waste. In addition, Axis Zipstream technology also significantly reduces storage and bandwidth, while ensuring that important details are captured in full image quality. The camera supports video compression in both H.264 and H.265.
-
Top performance in tough environments
M2026-LE Mk II can withstand temperatures as low as -30 °C and as high as 50 °C (-22 ºF to 122 ºF). It comes with an integrated sunscreen for protection against sun and rain. And with IP66 and NEMA 4X ratings, it's resistant to rough weather, dust, sand and salt spray, ice formation and high water pressure.
-
Installation that's as easy as 1, 2, 3
Small, lightweight and factory focused, M2026-LE Mk II is easy - and cost efficient - to install. A spacious, sealed back box, protects the cable and makes service fast and easy. The camera is easy to handle, and its wide field of view ensures coverage wherever you choose to place it: outdoors or in, on walls, ceilings, poles, or in corners.
|
| General |
| Device Type |
Network surveillance camera |
| Connectivity Technology |
Wired |
| Width |
10.1 cm |
| Depth |
10.1 cm |
| Height |
17.4 cm |
| Weight |
500 g |
| Localisation |
Argentina, Australia, China, Korea, Brazil, United Kingdom, United States, Europe |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor - weatherproof |
| Digital Video Format |
MPEG-4, MJPEG, H.264, H.265 |
| Max Digital Video Resolution |
2688 x 1520 |
| Motion Detection |
Yes |
| Exposure Range |
1/5 sec - 1/31500 sec |
| Minimum Illumination |
0.3 lux - colour - F2.2 - 50 IRE
0.06 lux - B&W - F2.2 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
15 m |
| Digital Video Capture Resolution |
320 x 240, 2688 x 1520, 1440p |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, white balance, colour control, progressive scanning, brightness control, Power over Ethernet, sunshield, contrast control, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, Privacy Mask Function, Video Motion Detection Technology, active tampering alarm, digital PTZ function, Text Caption Overlay, password protection, auto tracking, Edge Storage, Zipstream technology, ONVIF (Profile S) support, cross line detection, image overlay |
| Image Sensor |
| Type |
4 MP CMOS 1/3" |
| Lens Construction |
| Type |
M12 mount - fixed focal |
| Focal Length |
2.4 mm |
| Lens Iris |
F/2.2 fixed iris |
| Horizontal Field of View (degree) |
130 |
| Vertical Field of View (degree) |
73 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Compliant Standards |
EN55024, IEC 60529 IP66, EN 61000-6-1, EMC, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK08, VCCI Class A, AS/NZS CISPR 22, RCM, IEC 60950-22, IEC 62471, EN 60950-22, UL 60950-22, KN35, NEMA250 Type 4X, EN 55032 Class A, KCC KN32 Class A, IEEE 802.3af, IEEE 802.3at |
| Colour |
White |
| Power |
| Power Requirements |
PoE Class 3 |
| Power Device |
5.1 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% (non-condensing) |
