| Marketing Description |

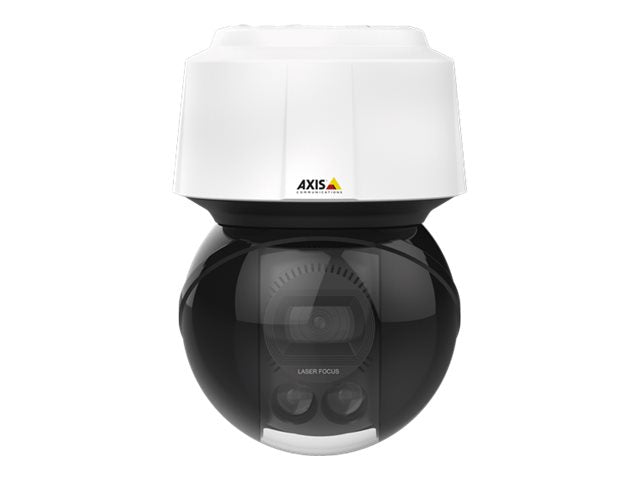

| The Q6155-E PTZ dome network camera uses advanced laser technology to give flawless focus - even in the dark. It is ideal for city surveillance, critical infrastructure and other applications where instant focus on moving objects and fast-changing scenes is needed. |
| Product Features |
-
Always in focus
The Q6155-E's built-in laser makes it a fast focusing PTZ camera. Under difficult circumstances, like scenes with low light, low contrast, or point-shaped light, the Q6155-E really stands out
-
Always in color
The Q6155-E delivers excellent image quality with low noise and great detail in living color. It lets you see above the horizon with the same sharp, clear image quality as below the horizon.
|
| General |
| Device Type |
Network surveillance camera |
| Connectivity Technology |
Wired |
| Width |
16.5 cm |
| Depth |
16.5 cm |
| Height |
25.6 cm |
| Weight |
2.9 kg |
| Camera |
| Type |
Colour - Day&Night - pan / tilt / zoom - outdoor - dustproof / waterproof / vandal-proof |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
720p, 1080p |
| Digital Zoom |
12 |
| Exposure Range |
2 sec - 1/60000 sec |
| Minimum Illumination |
0.15 lux - colour - F1.6 - 30 IRE
0.01 lux - B&W - F1.6 - 30 IRE
0.2 lux - colour - F1.6 - 50 IRE
0.02 lux - B&W - F1.6 - 50 IRE |
| Frame Rate (max) |
60 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Sharpness control, digital image rotation, digital image freeze, white balance, colour control, progressive scanning, brightness control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, 256 preset positions, Electronic Image Stabilizer (EIS), 3D Privacy Mask Function, Video Motion Detection Technology, Lightfinder technology, password protection, auto tracking, Variable Bitrate (VBR), Forensic Capture (120 dB), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Sharpdome technology, laser focus |
| Image Sensor |
| Type |
CMOS 1/2.8" |
| Lens Construction |
| Optical Zoom |
30 x |
| Focal Length |
4.3 mm - 129 mm |
| Lens Iris |
F/1.6-4.7 auto iris |
| Focus Adjustment |
Automatic |
| Horizontal Field of View (degree) |
2.36 - 66.7 |
| Vertical Field of View (degree) |
1.37 - 39.5 |
| Panning |
| Range (degree) |
360 |
| Speed (degree/sec) |
Up to 700 |
| Tilting |
| Range (degree) |
-90 to +20 |
| Speed (degree/sec) |
Up to 500 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous |
| Included Accessories |
AXIS High PoE Midspan (1 port), IP66-rated RJ45 connector kit |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60529 IP66, EN 61000-6-1, FCC Part 15 B, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-30, KCC, IEC 60068-2-27, IEC 60068-2-6, IEC 60825-1, EN 60825-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, ISO 4892-2, IEC 62262 IK08, EN 50121-4, IEC 62236-4, VCCI Class A, AS/NZS CISPR 22, RCM, EN 55022 Class A, KN32, KN35, NEMA250 Type 4X, EN 62368-1, IEC 62368-1, IEC/EN/UL 60950-22 |
| Power |
| Power Requirements |
High PoE |
| Power Device |
Power injector - external AC 120/230 V |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-50 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% |
