| Marketing Description |

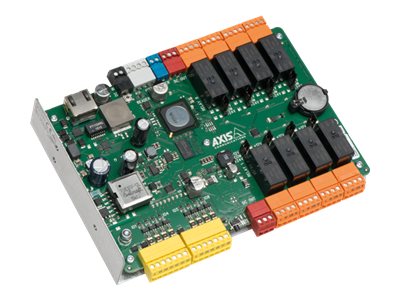

| AXIS A9188 Network I/O Relay Module is an intelligent module with configurable I/Os and relays and supports supervised inputs. With its open platform it offers a high level of integration with AXIS A1001 Network Door Controller and other facility systems, such as elevator control for floor management and HVAC (Heating, ventilation and AC) systems. It can also be used with AXIS Video Hosting System, AXIS Camera Station or third party partner software. The module provides power to I/O devices and can extend the functionality of any Axis product where you need additional I/Os or relays. |
| Product Features |
- 8 I/Os with supervised inputs and configurable levels
- 8 form C relays
- 12 and 24 V DC output
- PoE+ or 12 and 24 V DC input
|
| General |
| Device Type |
Expansion module |
| Form Factor |
Plug-in module |
| Networking |
| Connectivity Technology |
Wired |
| Network / Transport Protocol |
TCP/IP, UDP/IP, NTP, ICMP/IP, ARP, SMTP, FTP, DHCP, DNS, Bonjour, DDNS, RTP, RTCP, SFTP |
| Remote Management Protocol |
SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Features |
DHCP support, ARP support, DiffServ support, IPv6 support, IP address filtering, Quality of Service (QoS), PoE+, IPv4 support, e-mail notification |
| Compliant Standards |
IEEE 802.3af, IEEE 802.1x, IEEE 802.3at, UPnP |
| Processor / Memory |
| RAM |
256 MB |
| Flash Memory |
256 MB |
| Expansion / Connectivity |
| Interfaces |
1 x 100Base-TX (PoE+) - RJ-45 (internal)
8 x digital input/output - terminal block (internal)
8 x relay output - terminal block (internal) |
| Miscellaneous |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, C-Tick Class B, UL 2043, EN 61000-6-2, IEC 60950-1, EN 60950-1, VCCI Class B, EN 50581, AS/NZS CISPR 22 Class B, FCC Part 15 Class B, EN 50130-4 |
| Dimensions & Weight |
| Width |
4.3 cm |
| Depth |
18.6 cm |
| Height |
12 cm |
| Weight |
500 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
55 °C |
| Humidity Range Operating |
20 - 85% (non-condensing) |
