| Marketing Description |

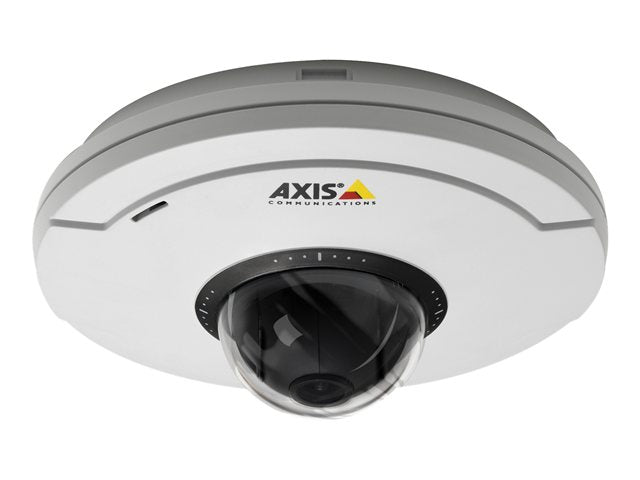

| AXIS M5013 PTZ Dome Network Camera is a palm-sized pan/tilt/zoom camera, affordably priced for remote and discreet monitoring of indoor areas. It's perfect for getting an overview of a store, for checking if shelves are stocked and items are properly promoted, and for getting customer behavior information needed to increase sales. Other sites suitable for AXIS M5013 include banks, hotels, office lobbies, restaurants and warehouses. |
| Product Features |
-
Discreet design with broad coverage
AXIS M5013 PTZ Dome Network Camera is a palm-sized pan/tilt/zoom camera, affordably priced for remote and discreet monitoring of indoor areas. It's perfect for getting an overview of a store, for checking if shelves are stocked and items are properly promoted, and for getting customer behavior information needed to increase sales. Other sites suitable for AXIS M5013 include banks, hotels, office lobbies, restaurants and warehouses.
-
Excellent image quality and multiple video streams
AXIS M5013 provides full frame rate video in SVGA 800 x 600 resolution. It can send multiple H.264 and motion JPEG video streams simultaneously.
-
Protective casing and easy installation on ceilings
With an IP51-rating, the camera is dustproof and protected from dripping water, enabling video to be taken even when a sprinkler system is activated. AXIS M5013 is designed for quick and easy installation. The camera is powered with Power over Ethernet (PoE) using a PoE switch or midspan, which eliminates the need for power cables and reduces installation cost.
-
Audio support and intelligent capabilities
The built-in microphone enables users to listen in remotely and audio to be recorded. Audio detection allows unusual sounds or noise detected during off-hours to trigger alarm events. The microSD/SDHC card slot enables several days of recording on a microSDHC card.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: built-in microphone |
| Camera Mount Type |
Ceiling mount |
| Connectivity Technology |
Wired |
| Width |
13 cm |
| Depth |
13 cm |
| Height |
5.6 cm |
| Weight |
330 g |
| Camera |
| Type |
Colour - pan / tilt / zoom - dustproof / waterproof |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
800 x 600 |
| Digital Zoom |
3 |
| Exposure Range |
1/6 sec - 1/25000 sec |
| Minimum Illumination |
1.4 lux - colour - F1.8 |
| Video Capture |
800 x 600 @ 30 fps |
| RAM |
256 MB |
| Flash Memory |
128 MB |
| Features |
Motion sensor, Backlight Compensation (BLC), sharpness control, white balance, colour control, alarm function, progressive scanning, brightness control, Power over Ethernet, ONVIF support |
| Image Sensor |
| Type |
CMOS 1/4" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
3.6 mm |
| Lens Iris |
F/1.8 |
| Horizontal Field of View (degree) |
45 |
| Panning |
| Range (degree) |
180 |
| Speed (degree/sec) |
Up to 100 |
| Tilting |
| Range (degree) |
90 |
| Speed (degree/sec) |
Up to 100 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS |
| Expansion / Connectivity |
| Interfaces |
1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Compliant Standards |
C-Tick, VCCI Class B ITE, EN55024, EN55022 Class A, CISPR 22, EN 61000-6-1, FCC Part 15 B, ICES-003 Class A, EN 61000-6-2, EN 60950-1, KCC Class A |
| Power |
| Power Requirements |
PoE |
| Software / System Requirements |
| Software Included |
Drivers & Utilities |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
