| Marketing Description |
| The ASR 1002-HX is a compact router that delivers superior bandwidth. The router offers instant-on service capabilities and on-demand crypto capability. |
| Product Features |
-
Robust security
Equipped with IPSec tunnels capable of supporting up to 8000 connections, the Cisco ASR 1002-HX offers a secure and reliable solution for expansive network requirements. Its comprehensive suite of security features, including firewall and VPN support, ensures data integrity and privacy across the network.
-
High performance
The router boasts an impressive ESP bandwidth of 100 Gbps and encryption throughput of up to 25 Gbps, facilitating fast data transmission while maintaining secure connections. This performance level is suitable for businesses requiring fast and secure data processing.
-
Advanced connectivity
With a variety of interfaces including Ethernet 10GBase-X, Ethernet 1000Base-X, and management ports, the Cisco ASR 1002-HX ensures versatile connectivity options. Its modular design allows for easy expansion, meeting the evolving needs of modern networks.
-
Efficient power management
Featuring hot-plug internal power supplies with redundancy and a power capacity of 500 watts, the Cisco ASR 1002-HX ensures uninterrupted service and operational efficiency. This design supports the demands of high-availability network environments.
-
Comprehensive compliance
The router meets a wide range of compliance standards, including FCC, EN, IEC, and more, ensuring its suitability for global deployment. This compliance underscores the router's reliability and safety in diverse operational conditions.
|
| General |
| Device Type |
Router |
| Enclosure Type |
Front to back airflow rack-mountable - modular - 2U |
| Connectivity Technology |
Wired |
| Data Link Protocol |
10 Gigabit Ethernet |
| Performance |
ESP bandwidth: 100 Gbps
Encryption throughput: up to 25 gbps |
| Capacity |
IPSec tunnels: 8000 |
| Network / Transport Protocol |
IPSec |
| Features |
NAT support, DPI, ACL support, QoS, NetFlow, DSCP support, ISSU, DNA support |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, VCCI Class A, AS/NZS CISPR 22, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386 |
| RAM |
16 GB (installed) / 16 GB (max) |
| Status Indicators |
Power, active, standby, status |
| Expansion / Connectivity |
| Interfaces |
8 x 1000Base-X - SFP (mini-GBIC)
8 x 10GBase-X - SFP+
Management: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Management: 1 x console - RJ-45
Management: 1 x auxiliary - RJ-45
USB: 2 x 4 pin USB Type A
USB: 1 x console |
| Expansion Slots |
1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) |
0 (installed) / 1 (max) |

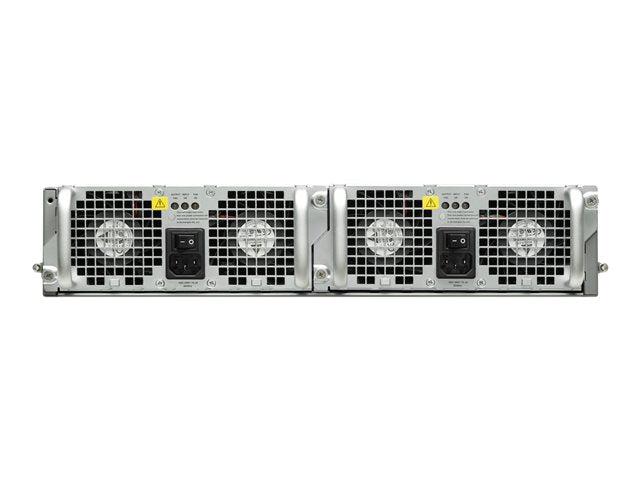

| Power |
| Power Device |
Internal power supply - hot-plug - 500 Watt |
| Power Redundancy |
Yes |
| Installed Qty |
2 (installed) / 2 (max) |
| Miscellaneous |
| Included Accessories |
Ethernet Port Adapter (EPA) blank cover, faceplate blank cover |
| Software / System Requirements |
| OS Required |
Cisco IOS XE 16.2.1S |
| Dimensions & Weight |
| Width |
43.94 cm |
| Depth |
48.9 cm |
| Height |
8.89 cm |
| Weight |
15.45 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - 90 days - response time: 10 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 85% |
| Compatibility Information |
| Designed For |
P/N: L-LIC-DNA-ADD |
