| Marketing Description |

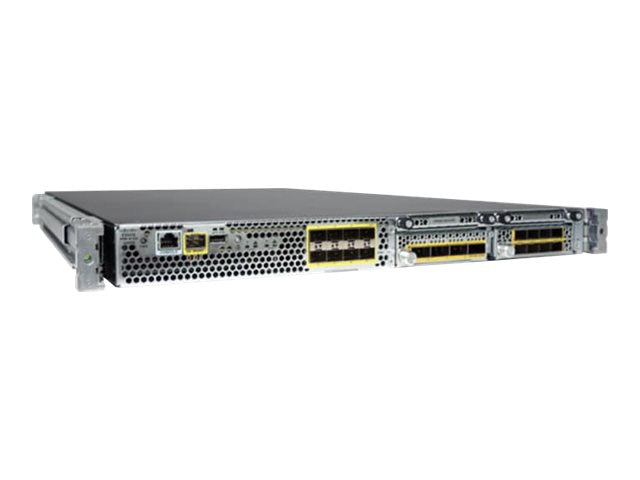

| Stop more threats with the fully integrated next-generation firewall (NGFW) appliance. The 4100 Series’ 1-rack-unit size is ideal at the Internet edge and in high-performance environments. It shows you what’s happening on your network, detects attacks earlier so you can act faster, and reduces management complexity. |
| Product Features |
-
Threat-focused NGFW
Get granular application control. Protect against malware. Gain insight into and control over threats and vulnerabilities. Shrink time to detection and remediation. Reduce complexity with a single management interface.
-
Performance and density optimized
Key capabilities include support for 1/10/40 Gigabit Ethernet interfaces, up to 60 Gbps stateful firewall throughput, low latency, and a 1RU form factor.
-
Integrates with Cisco and third-party solutions
Further strengthen your defenses. Share intelligence, context, and policy controls by integrating other Cisco networking and security solutions.
-
Unified management
Reduce complexity and simplify operations. Consolidate all security functions in a single management interface. It automatically prioritizes security events, recommends tailored security protections, and tracks and contains malware infections.
|
| General |
| Device Type |
Security appliance |
| Height (Rack Units) |
1U |
| Width |
42.9 cm |
| Depth |
75.4 cm |
| Height |
4.4 cm |
| Weight |
13.6 kg |
| Processor / Memory / Storage |
| Hard Drive |
400 GB |
| Networking |
| Form Factor |
Rack-mountable |
| Connectivity Technology |
Wired |
| Data Link Protocol |
10 Gigabit Ethernet |
| Network / Transport Protocol |
TCP/IP, UDP/IP, IPSec, DNS, FTP, IMAP4, SMTP |
| Remote Management Protocol |
HTTP |
| Performance |
NGFW throughput: 12.5 Gbps
Maximum throughput FW + AVC + IPS (1024B): 12.5 Gbps
Maximum throughput FW + AVC (1024B): 14 Gbps
IPSec VPN throughput (1024B TCP w/Fastpath): 6.5 Gbps
Stateful inspection firewall throughput: 40 Gbps
Multiprotocol stateful firewall throughput: 30 Gbps
IPsec VPN throughput (450B UDP L2L test): 9 Gbps
NGIPS throughput (1024B): 15 Gbps
Firewall throughput: 25 Gbps
Firewall latency (64-byte UDP): 3.5 µs |
| Capacity |
New connections per second: 400000
Concurrent firewall connections: 10000000
Maximum VPN peers: 10000
Security contexts: 10
Maximum number of appliances (per cluster): 16 |
| Features |
High Availability, URL filtering, hot swappable 6 fans, Application Visibility and Control (AVC), Intrusion Prevention System (IPS), firewall protection, VPN load-balancing, firewall clustering |
| Expansion / Connectivity |
| Expansion Slots |
2 (total) / 2 (free) x expansion slot |
| Interfaces |
8 x 10Gb Ethernet - SFP+
1 x 1000Base-T (management) - SFP (mini-GBIC)
1 x serial - RJ-45
1 x USB 2.0 - Type A |
| Miscellaneous |
| Included Accessories |
Rack rails kit |
| Compliant Standards |
AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1, GB 4943, FCC CFR47 Part 15, FCC Class A certified, AS/NZS CISPR22 Class A, CISPR 22 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, KN22 Class A, CNS 13438 Class A, EN 300 386, TCVN 7189, CISPR 24, EN55024, KN24, TVCN 7317 |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Provided |
1100 Watt |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
