| Marketing Description |

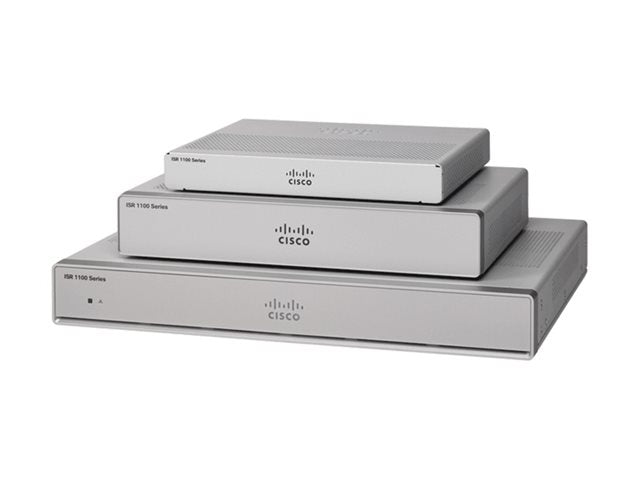

| The Cisco 1116 ISR 4-port LTE (EMEAR and North America) with a small form factor is best suited for small and midsize businesses, enterprise branches, and as customer premises equipment in managed services environments; it can be used in ATMs, retail stores, and kiosks. The C1116-4PLTEEA model comes with four LAN ports and supports Power over Ethernet (PoE) and PoE+ to power branch devices such as IP phones and cameras. It has high performance with Gigabit Ethernet packet forwarding capabilities and the multicore architecture has separate cores for the data plane and control plane so your network ensures an optimized user experience. You can easily deploy this router with zero-touch provisioning using the plug-and-play capability. This model is configured for EMEAR and North America. |
| Product Features |
-
Lightweight, compact size with low power consumption
It can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.
-
High performance to run concurrent services
High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.
-
Consistent, high application performance levels
The router can run multiple services simultaneously with minimal performance degradation.
|
| General |
| Device Type |
Router - 4-port switch (integrated) |
| Enclosure Type |
Desktop |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Encryption throughput: 250 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol |
SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm |
DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method |
RADIUS |
| Features |
CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM |
| Compliant Standards |
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM |
4 GB |
| Flash Memory |
4 GB |
| Status Indicators |
Status |
| Communications |
| Type |
DSL modem |
| Digital Signaling Protocol |
ADSL2, VDSL2+ |
| Protocols & Specifications |
ITU G.992.1 (G.DMT) Annex B, ITU G.993.2, ITU G.992.5 Annex B, ITU G.992.3 Annex B, ITU G.992.5 Annex J, ITU G.992.3 Annex J |
| Expansion / Connectivity |
| Interfaces |
WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP
LAN: 2 x 1000Base-T - RJ-45
LAN: 1 x 1000Base-T (PoE+) - RJ-45
LAN: 1 x 1000Base-T (PoE) - RJ-45
USB 3.0: 1 x console
WAN: 1 x VDSL2 / ADSL2+ |
| Power |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Localisation |
Middle East, Africa, North America, Russia, Europe |
| Dimensions & Weight |
| Width |
32.3 cm |
| Depth |
23 cm |
| Height |
4.2 cm |
| Weight |
2.59 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
65 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
