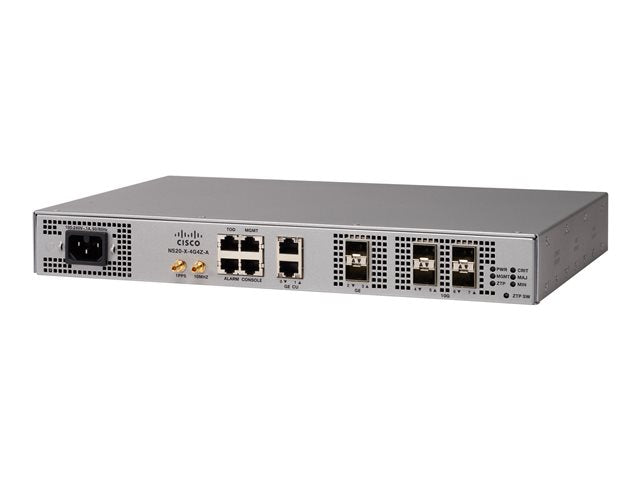

CISCO NCS 520 4xGE 4x10GE Commercial Temp AC захранване

CISCO NCS 520 4xGE 4x10GE Commercial Temp AC захранване

CISCO
Код KXG0136789

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Описание

CISCO NCS 520 4xGE 4x10GE Commercial Temp AC power supply

Manufacturer CISCO
Manufacturer Part No N520-4G4Z-A

General
Device Type Network management device
Height (Rack Units) 1U
Width 31 cm
Depth 22.9 cm
Height 4.45 cm
Weight 2.82 kg
Networking
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol OAM
Features Quality of Service (QoS), 3 fans, built-in ASIC, Connectivity Fault Management (CFM), Synchronous Ethernet (SyncE), Ethernet Virtual Connections (EVC), TrustAnchor module, secure JTAG, runtime defenses
Compliant Standards IEEE 802.1ag, IEEE 1588v2
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45
2 x 1000Base-X - SFP (mini-GBIC)
4 x 1000Base-X/10GBase-X - SFP+
Miscellaneous
MTBF 493,420 years
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 50121-4, GR-1089-CORE, VCCI Class A, KN24, GR-63-CORE, KN22 Class A, GR-1244-CORE, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, KN 61000-4-2, KN 61000-4-11, KN 61000-4-6, KN 61000-4-8, ANSI T1.101, KN 61000-4-5, KN 61000-4-4, KN 61000-4-3, SR-3580 NEBS Level 3, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, EN 300386 Class A, ETSI EN 300 019-2-3, AS/NZS 60950-1:2003, GR-3108, ETSI EN 300 019-1-2, ETSI EN 300 019-3-2, ETSI EN 300 753, ITU-T G.8264, ITU-T G.8265.1, ITU-T G.8275.1, ITU-T G.8275.2, IEEE 1588-2008
Power
Power Device Internal power supply
Installed Qty 1
Max Supported Qty 1
Voltage Required AC 120/230 V (50 - 60 Hz)
Software / System Requirements
OS Provided Cisco IOS XE Polaris
Manufacturer Warranty
Service & Support Limited warranty - advance parts replacement - 90 days - response time: 10 days
Environmental Parameters
Min Operating Temperature 0 °C
Humidity Range Operating 5 - 95% (non-condensing)
