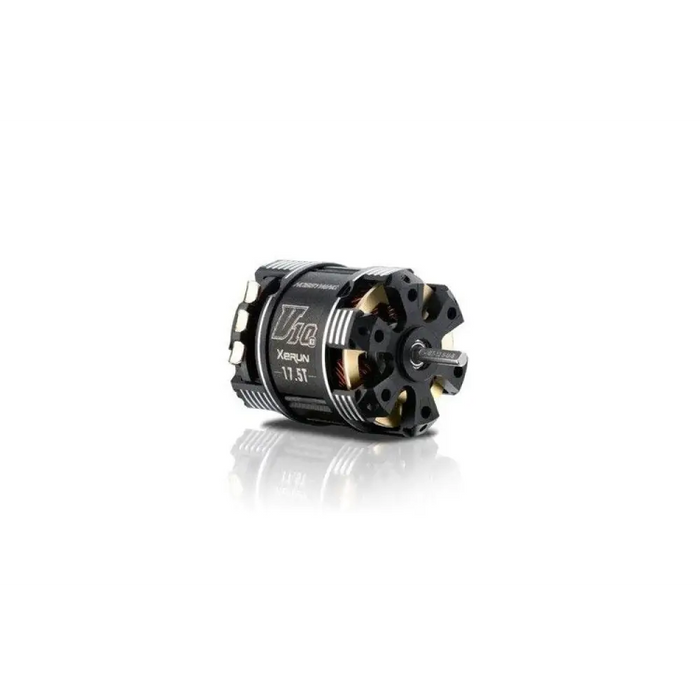

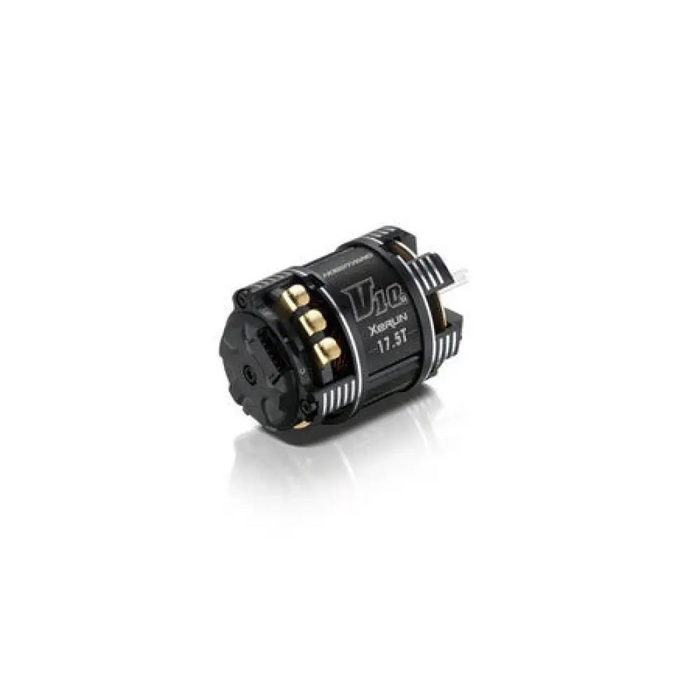

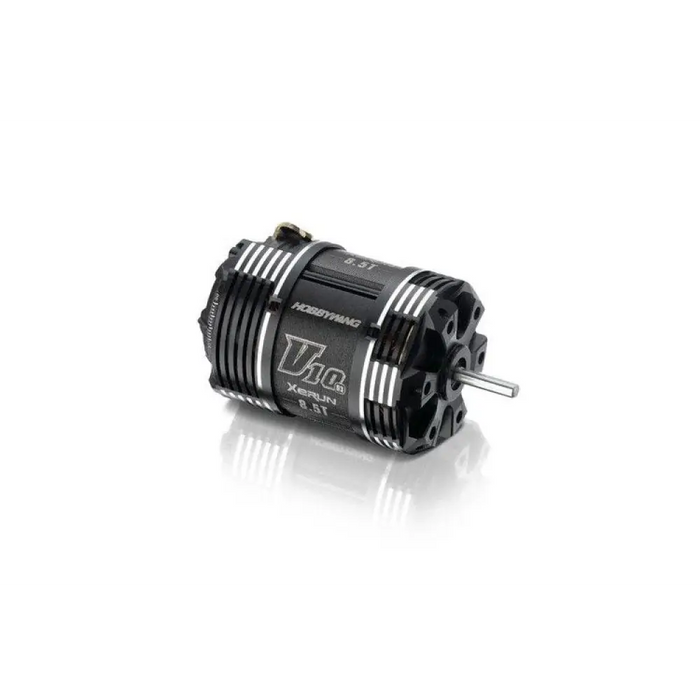

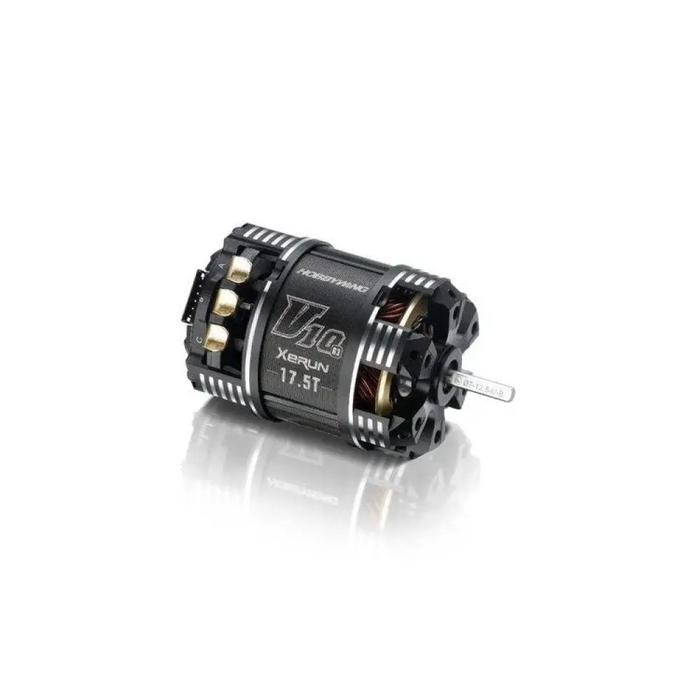

Hobbywing Xerun V10 G3 6.5T 5120KV безчетков мотор

Hobbywing Xerun V10 G3 6.5T 5120KV безчетков мотор

Hobbywing
Код KXG0148511

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Описание

table {

border-collapse: collapse;



width: 100%;

}






th, td {




padding: 8px;

text-align: left;

border-bottom: 1px solid #ddd;

}



tr:hover{background-color:#f5f5f5}

-->
Even better performance
Hobbywing G3 engines are the successor to the well-known V10 G2 versions. The new Stock and Modified versions of the engines feature a completely new design that translates into lighter weight and better performance. The Stock Spec models have higher torque and KV values by 4% and 16%, respectively, compared to the V10 G2 Stock Spec engines. The high speed and torque will make your model a secret weapon in Stock class racing.




Linearity of operation

The built-in high-precision hall sensor, combined with the precision and balance of the rotor, guarantee unbelievable linearity of engine operation.Super lightweight



The G3 Modified and Stock motor weigh only 161 g and 132 g, respectively. The weight has been reduced by 11% and 21%, respectively, compared to the V10 G2 sinuosity. With less weight, drivers can easily adjust the balance of their vehicles.

Asymmetrical bearings



To increase load carrying capacity, the size of the front bearing on the G3 engine has been increased by 26% compared to the G2 version. To reduce drag, the rear bearing has been reduced by 6%. The asymmetrical design will make the engine run much smoother and more stable.

Excellent heat dissipation

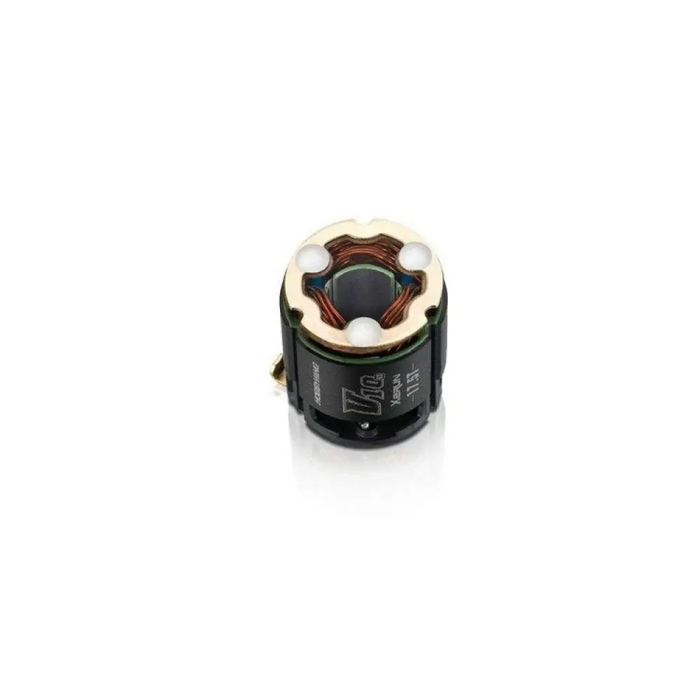

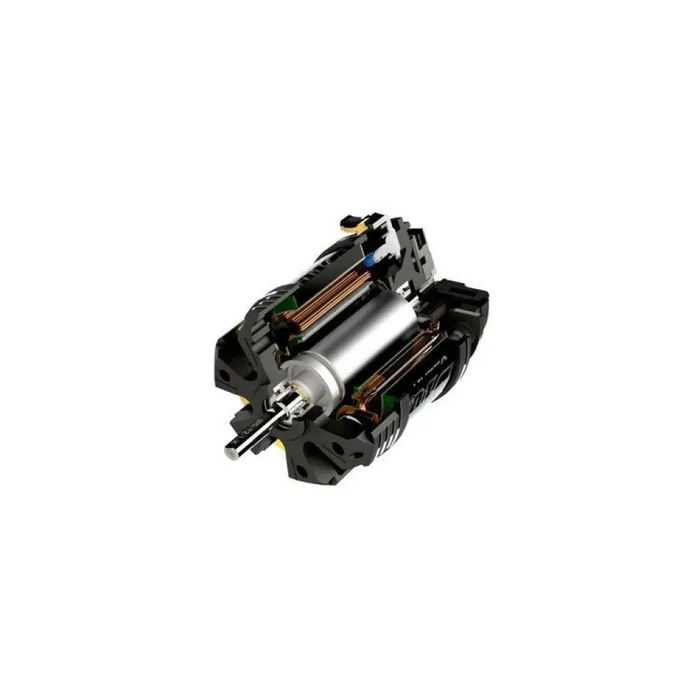

Special housing design keeps the stator core exposed to the air to maximize cooling. Large openings* on the front and rear end plates guarantee excellent heat dissipation from the engine.
* Note that 5.5T~8.5T engines are typically used in off-road vehicles, so the factory end plates have small holes Two different end plates
End plates with large holes used on 3.5T~5.0T and 10.5T~21.5T engines provide excellent engine heat dissipation for on-road vehicles. End plates with small holes applied to 5.5T~8.5T engines prevent sand or other debris from entering, preventing damage to engines on off-road vehicles.

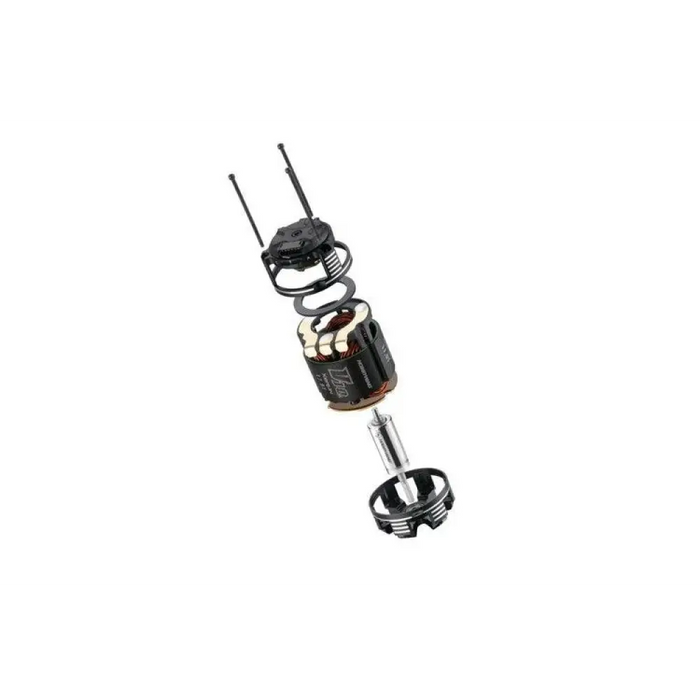

Users can purchase any end plates and install them in their engines according to their needs. Unfoldable design
The unit's design allows it to be disassembled for regular cleaning and maintenance, extending the life of the engine and maintaining its effectiveness .
Smoothly adjustable timing Mechanical timing allows for extremely precise and smooth value adjustments. Anti-slip lines on the back of the motor guarantee the stability of the selected settings.

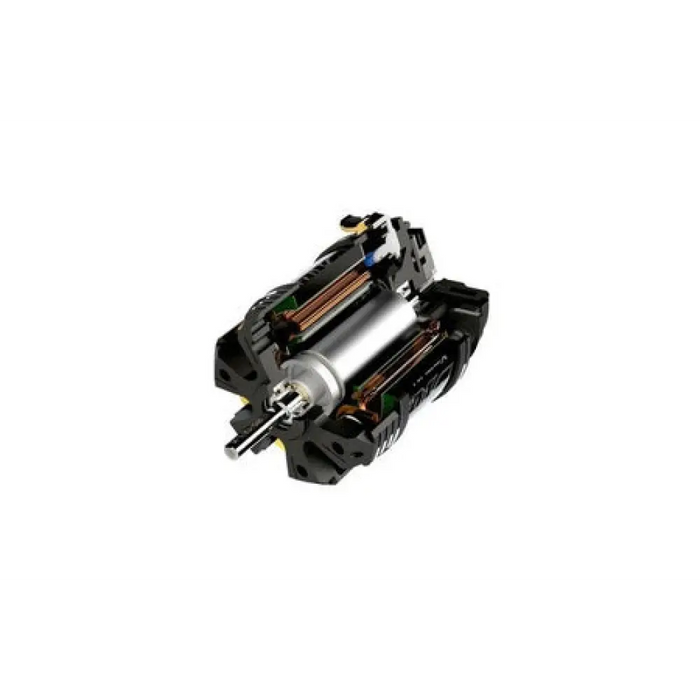

High quality components The use of a high-quality stator core, heat-resistant pure copper coil and rotor, top-quality bearings with high strength and precision, and solder fields with high current resistance guarantee great performance and durability.
Specifications Model:
30401109 KV:
5120 LiPo power supply:
2S Number of coils:
6,5 T Weight
164 g Diameter
35.9 mm Length
51.2 mm Shaft length
