| General |
| Printer Type |

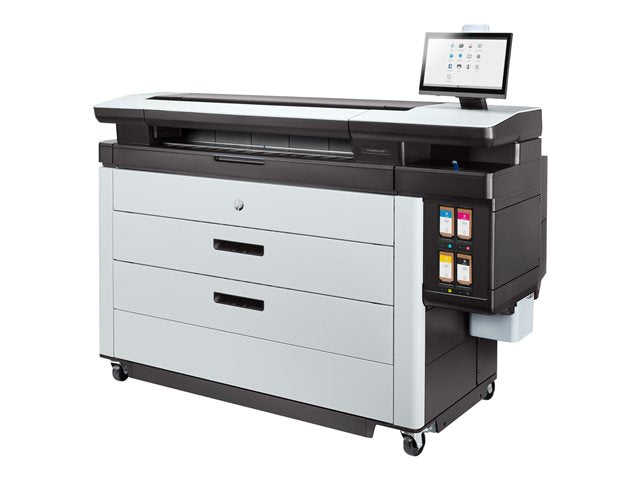

40" large-format printer - page wide array - colour |
| Localisation |
English, German, French, Italian, Spanish / Europe |
| Printer |
| Inkjet Technology |
HP PageWide |
| Ink Palette Supported (Colours) |
4-ink - pigment cyan, pigment magenta, pigment yellow, pigment black |
| Ink Cartridge Configuration |
4 cartridges (1 each: pigment cyan, pigment magenta, pigment yellow, pigment black) |
| Print Speed |
Up to 18 ppm - A0 (841 x 1189 mm)
Up to 18 ppm - ANSI E (864 x 1118 mm)
Up to 18 ppm - ARCH E (914.4 x 1219.2 mm)
Up to 30 ppm - A1 (594 x 841 mm)
Up to 30 ppm - ANSI D (559 x 864 mm)
Up to 30 ppm - ARCH D (609.6 x 914.4 mm) |
| Built-in Devices |
Touch screen, Stacker |
| Preview Screen Size |
15.6" |
| Connectivity Technology |
Wired |
| Interface |
USB 2.0 host |
| Max Resolution (B&W) |
1200 x 1200 dpi |
| Max Resolution (Colour) |
1200 x 1200 dpi |
| PostScript Support |
Included |
| First Print Out Time B/W |
18 sec |
| First Print Out Time Colour |
18 sec |
| Language Simulation |
HP GL/2, JPEG, TIFF, PDF 1.7, PostScript 3 |
| Printer Features |
Automatic roll switching, Hard Disk Drive Encryption |
| Processor |
| Processor |
Intel Core i5 |
| RAM |
| RAM Installed (Max) |
16 GB |
| Technology / Form Factor |
DDR4 SDRAM |
| Storage |
| Hard Drive |
628 GB |
| Media Handling |
| Media Type |
Poster board, bond paper, recycled paper, tyvek banner, film |
| Max Media Size |
Roll (10.16 cm x 200 m) |
| Media Sizes |
A1 (594 x 841 mm), A0 (841 x 1189 mm), ANSI E (864 x 1118 mm), ANSI D (559 x 864 mm), ARCH D (609.6 x 914.4 mm), ARCH E (914.4 x 1219.2 mm), Roll (10.16 cm x 200 m) |
| Media Thickness Range |
0.4 mm |
| Media Weight |
70 g/m² - 200 g/m² |
| Media Weight (lbs) |
19 lbs - 53 lbs |
| Total Media Capacity |
2 rolls |
| Media Feeders |
1 x manual - 2 rolls |
| Max Media Capacity |
6 rolls |
| Networking |
| Networking |
Print server |
| Expansion / Connectivity |
| Connections |
1 x USB 2.0 host - 4 pin USB Type A |
| Miscellaneous |
| Features |
256-bit AES security |
| Compliant Standards |
FCC, ICES, EMC, RCM, VCCI, KC, RoHS, WEEE, REACH, IEC 60950-1+A1+A2, IEC 62368-1 Second Edition, CSA, LVD, EN 60950-1, EN 62368-1, EAC |
| Power |
| Power Device |
Power supply |
| Frequency Required |
50/60 Hz |
| Power Consumption Operational |
370 Watt |
| Power Consumption Stand by |
120 Watt |
| Power Consumption Sleep |
1 Watt |
| Software / System Requirements |
| Software Included |
HP Web JetAdmin, HP Embedded Web Server, HP Partner Link |
| Environmental Standards |
| ENERGY STAR |
Yes |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 90 days
Limited warranty - printhead - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% |
| Sound Emission (Idle) |
36 dBA |
| Sound Emission (Operating) |
60 dBA |
| Dimensions & Weight |
| Width |
1.955 m |
| Depth |
78.5 cm |
| Height |
1.637 m |
| Weight |
448 kg |
| Dimensions & Weight (Shipping) |
| Width (Shipping) |
2.257 m |
| Depth (Shipping) |
1.04 m |
| Height (Shipping) |
1.578 m |
| Weight (Shipping) |
577 kg |
