| Marketing Description |

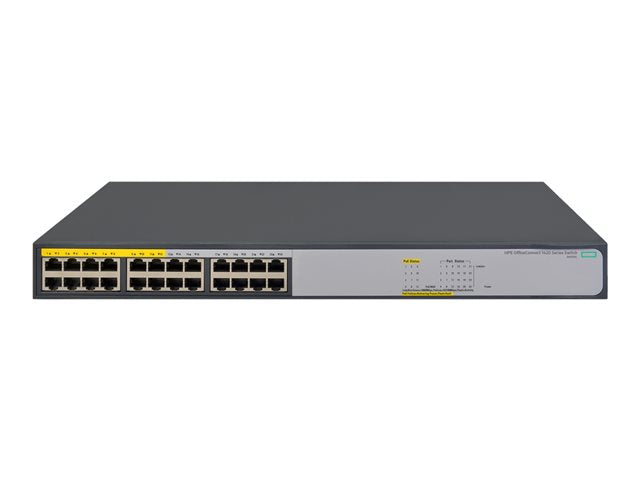

| The HPE 1420 switch series consists of unmanaged Gigabit Ethernet switches, for small businesses and others looking for plug-and-play basic Layer 2 connectivity for their network. |
| Product Features |
-
High-performance, cost-effective and easy to deploy
The HPE 1420 switch series offers small businesses and others Layer 2 Gigabit Ethernet switching with unmanaged affordability and plug-and-play simplicity. Unmanaged switches are economical offerings, ideal for locations needing only basic Layer 2 switching in a flat single tier network.
-
Automated features for hands-off operation
All models are plug-and-play with zero configuration and no required ongoing administration.
|
| General |
| Device Type |
Switch - 24 ports - unmanaged |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
12 x 10/100/1000 (PoE+) + 12 x 10/100/1000 |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
124 W |
| Performance |
Throughput (64-byte packet size): up to 35.7 Mpps
Switching capacity: 48 Gbps |
| MAC Address Table Size |
8192 entries |
| Jumbo Frame Support |
9216 bytes |
| Features |
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, QoS, fanless, 512KB packet buffer, DSCP support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Flash Memory |
1 MB |
| Expansion / Connectivity |
| Interfaces |
12 x 1000Base-T RJ-45 PoE+
12 x 1000Base-T RJ-45 |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| MTBF |
69.9 years |
| Compliant Standards |
CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, CISPR 22, CSA 22.2 No. 60950, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A |
| Dimensions & Weight |
| Width |
44 cm |
| Depth |
23.8 cm |
| Height |
4.4 cm |
| Weight |
3.3 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - lifetime - response time: next business day
Technical support - phone consulting - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 95% (non-condensing) |
