| Marketing Description |

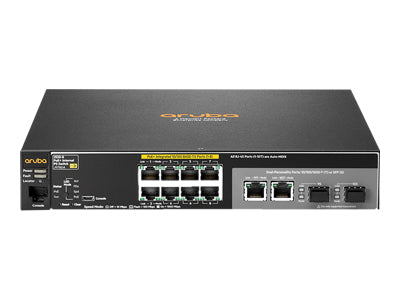

The HPE 2530 switch series delivers cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, these Gigabit and Fast Ethernet switch delivers full Layer 2 capabilities, enhanced access security, traffic prioritization, and IPv6 host support.
The switch series is easy to use, deploy, and manage via SNMP, CLI, and Web GUI. It offers flexible wall, table, and rack mounting; quiet operation with fanless and variable speed fan models; and improved power savings, with features such as IEEE 802.3 az (Energy Efficient Ethernet). |
| Product Features |
-
Robust security
Equipped with RADIUS, Secure Shell v.2 (SSH2), and TACACS+ authentication methods alongside SSL encryption, this switch ensures secure network access and data transmission.
-
High performance
With a throughput of 4.1 Mpps and a switching capacity of 5.6 Gbps, the device supports high-speed data processing and efficient traffic management.
-
Versatile connectivity
Features 8 Fast Ethernet ports, 2 Gigabit SFP ports, and 2 10/100/1000 ports, providing a range of connectivity options for various network needs.
-
Advanced networking
Supports ARP, ACL, BOOTP, DHCP, IPv6, and VLAN among other features, facilitating complex network configurations and enhanced functionality.
-
Efficient power management
PoE+ capability allows the switch to power devices over Ethernet, reducing cable clutter and power infrastructure costs.
|
| General |
| Device Type |
Switch - 8 ports - Managed |
| Enclosure Type |
Desktop, rack-mountable, wall-mountable 1U |
| Subtype |
Fast Ethernet |
| Ports |
8 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000 |
| Power Over Ethernet (PoE) |
PoE+ |
| Performance |
Throughput: 4.1 Mpps
Switching capacity: 5.6 Gbps |
| Capacity |
MAC addresses: 16000 |
| MAC Address Table Size |
16000 entries |
| Jumbo Frame Support |
9220 bytes |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI |
| Encryption Algorithm |
SSL |
| Authentication Method |
RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features |
Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, MSTP support, ACL support, QoS, STP Root Guard, LLDP support, CoS, GARP |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor |
1 x ARM: 800 MHz |
| RAM |
256 MB DDR3 SDRAM |
| Flash Memory |
128 MB |
| Expansion / Connectivity |
| Interfaces |
2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x SFP (mini-GBIC)
1 x management RJ-45
8 x 10Base-T/100Base-TX - RJ-45 PoE+ |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Compliant Standards |
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1 |
| Dimensions & Weight |
| Width |
25.4 cm |
| Depth |
15.95 cm |
| Height |
4.45 cm |
| Weight |
910 g |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
15 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
15 - 90% (non-condensing) |
