| Marketing Description |

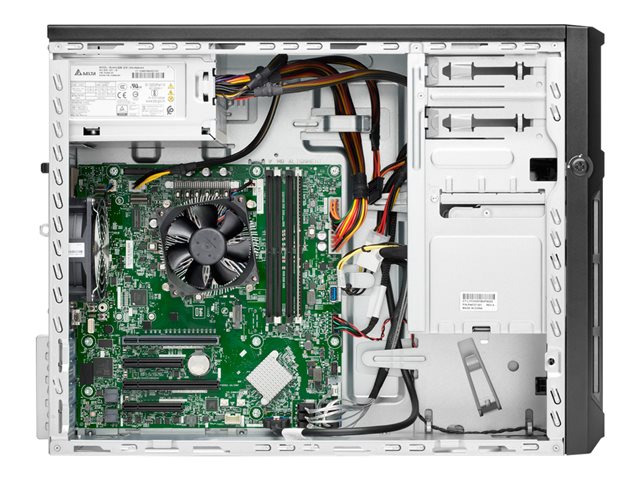

| The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost. |
| Product Features |
-
Robust performance
Equipped with an Intel Xeon E-2314 processor and 16 GB of DDR4 SDRAM, this server delivers reliable performance and fast data processing, making it suitable for small to medium-sized business applications.
-
Expandable storage options
With four 3.5" LFF internal expansion bays and support for RAID 0, 1, 10, and 5 configurations, the HPE ProLiant ML30 Gen10 Plus Entry offers flexible storage solutions to meet the growing needs of your business.
-
Comprehensive connectivity
This server features a broad range of connectivity options including two Gigabit Ethernet ports, six USB 3.0 ports, and dedicated VGA, ensuring seamless integration into existing networks and easy peripheral connection.
-
Enhanced security features
The Trusted Platform Module (TPM 2.0) security chip and various compliance standards including ACPI 6.3 and UEFI, provide a secure foundation to protect sensitive data and prevent unauthorized access.
|
| General |
| Type |
Server |
| Product Form Factor |
Tower - 4U |
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability |
1-way |
| Hot-Swap Bays Qty |
4 |
| Localisation |
Region: Europe |
| Processor / Chipset |
| CPU |
Intel Xeon E-2314 |
| Clock Speed |
2.8 GHz |
| Max Turbo Speed |
4.5 GHz |
| Number of Cores |
Quad-Core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| CPU Upgradability |
Upgradable |
| Processor Main Features |
Intel Turbo Boost Technology 2 |
| Chipset Type |
Intel C256 |
| Cache Memory |
| Installed Size |
L3 Cache - 8 MB |
| Cache Per Processor |
8 MB |
| RAM |
| Installed Size |
16 GB (installed) / 128 GB (max) |
| Technology |
DDR4 SDRAM - ECC |
| Effective Memory Speed |
3200 MHz |
| Rated Memory Speed |
3200 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
4 (Total) / 3 (empty) |
| Features |
Unbuffered |
| Configuration Features |
1 x 16 GB |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID |
| Controller Interface Type |
SATA 6Gb/s |
| Channel Qty |
6 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Video Interfaces |
VGA |
| Networking |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Ethernet Controller |
Broadcom BCM5720 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol |
IPMI 2.0, SMASH CLP, SNMP 3 |
| Remote Management Controller |
Integrated Lights-Out 5 |
| Features |
PXE support |
| Expansion / Connectivity |
| Bays |
4 (total) / 4 (free) x internal 3.5" LFF |
| Slots |
1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x4 mode)
2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height (x4 mode)
1 (total) / 1 (free) x M.2 Card (PCIe x2 and SATA mode) |
| Interfaces |
1 x VGA
1 x LAN (Gigabit Ethernet)
1 x LAN (Gigabit Ethernet) / HPE iLO
6 x USB 3.0 (1 front, 4 rear, 1 internal)
1 x USB 2.0 (1 in front) |
| Miscellaneous |
| Included Accessories |
Non-hot plug non-redundant system fan, HPE standard heatsink |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
EMC, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3, UEFI, TLS v1.2 |
| Power |
| Device Type |
Power supply |
| Installed Qty |
1 |
| Voltage Required |
AC 100-120/200-240 V |
| Power Provided |
350 Watt |
| 80 PLUS Certification |
80 PLUS Gold |
| Efficiency |
92% |
| Operating System / Software |
| Software |
HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - parts - 3 years - response time: next business day
Limited warranty - parts and labour - 1 year - on-site - response time: next business day |
| Dimensions & Weight |
| Width |
17.5 cm |
| Depth |
47.5 cm |
| Height |
36.83 cm |
| Weight |
10.1 kg |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
8 - 90% RH (non-condensing) |
| Sound Emission |
27 dBA |
