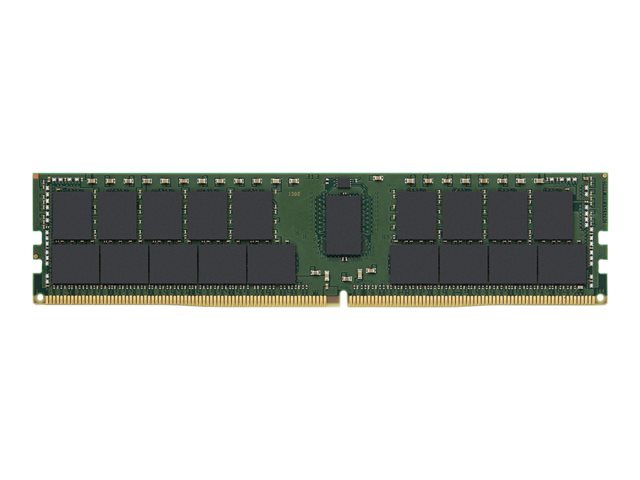

KINGSTON 32GB 3200MHz DDR4 ECC Reg CL22 DIMM 2Rx4 Hynix D Rambus

KINGSTON 32GB 3200MHz DDR4 ECC Reg CL22 DIMM 2Rx4 Hynix D Rambus

Kingston
Код KXG0140749

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Описание

KINGSTON 32GB 3200MHz DDR4 ECC Reg CL22 DIMM 2Rx4 Hynix D Rambus

Manufacturer KINGSTON
Manufacturer Part No KSM32RD4/32HDR

Marketing Description
Kingston's KSM32RD4/32HDR is a 4G x 72-bit DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered with parity, 2R x 4, ECC, memory module, based on thirty-six 2G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2 V. Each 288-pin DIMM uses gold contact fingers.
Product Features
  • Functionality and operations comply with the DDR4 SDRAM datasheet
  • Bi-directional differential data strobe
  • Supports ECC error correction and detection
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive
  • Per DRAM addressability is supported
  • Write CRC is supported at all speed grades
General
Capacity 32 GB
Upgrade Type Generic
Width 133 mm
Height 31.3 mm
Memory
Type DRAM memory module
Technology DDR4 SDRAM
Form Factor DIMM 288-pin
Module Height (inch) 1.23
Speed 3200 MHz (PC4-25600)
Latency Timings CL22 (22-22-22)
Data Integrity Check ECC
Features Temperature monitoring, dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), sixteen banks, Data Cyclic Redundancy Check (CRC) support, registered with parity
Module Configuration 4096 x 72
Chips Organization 1024 x 4
Voltage 1.2 V
Lead Plating Gold
Miscellaneous
Compliant Standards RoHS, JEDEC
Manufacturer Warranty
Service & Support Limited lifetime warranty (Russia - 10 years)
