| Marketing Description |

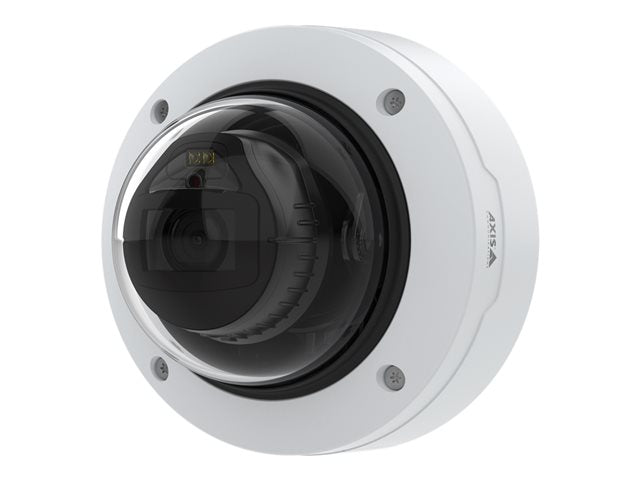

| Based on advanced Axis system-on-chip (SoC), AXIS P3268-LV offers excellent image quality and advanced analytics based on deep learning on the edge. Packed with cybersecurity features, this unobtrusive fixed dome is ideal for versatile surveillance. |
| Product Features |
-
Excellent image quality
AXIS P3268-LV delivers outstanding image quality and forensic details in brilliant 4K at up to 60 fps. With a varifocal 9 mm lens for wide-area surveillance, it offers a field of view of 100-53 degrees. Thanks to lightfinder 2.0 and forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you'll enjoy sharp and clear footage in complete darkness without the need for extra lighting. Furthermore, Axis zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
-
Deep learning analytics on the edge
Based on ARTPEC-8, the advanced Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Thanks to AXIS object analytics, it offers detection and classification of humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
-
Versatile and high performance
This easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this powerful dome camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio via edge-to-edge technology |
| Audio Formats |
LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Form Factor |
Dome |
| Camera Mount Type |
Wall mount, ceiling mount |
| Connectivity Technology |
Wired |
| Width |
14.9 cm |
| Depth |
14.9 cm |
| Height |
10.7 cm |
| Weight |
800 g |
| Camera |
| Type |
Colour - Day&Night - fixed - indoor |
| Digital Video Format |
H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG |
| Max Digital Video Resolution |
3840 x 2160 |
| Motion Detection |
Yes |
| Video Modes |
4K |
| Exposure Range |
1/5 sec - 1/8500 sec |
| Minimum Illumination |
0.14 lux - colour - F1.5 - 50 IRE
0 lux - B&W - F1.5 - 50 IRE |
| Infrared LEDs |
Yes |
| Infrared Distance |
40 m |
| Digital Video Capture Resolution |
3840 x 2160, 160 x 90 |
| Frame Rate (max) |
30 frames per second |
| RAM |
2 GB |
| Flash Memory |
8 GB |
| Features |
Remote zoom, remote focus, IR Corrected lens, Forensic WDR, Lightfinder 2.0 technology, digital PTZ function, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), video streaming indicator, 180° image rotation, 270° image rotation, 90° image rotation, brightness control, compression, contrast control, Corridor mode, day/night threshold, defogging, distortion correction function, dynamic text, exposure zone, image mirror, image overlay, Privacy Mask Function, saturation control, sharpness control, white balance, simplex audio, Axis device ID, Axis Edge Vault, brute force delay protection, centralised certificate management, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, secure keystore, signed firmware, signed video, user access log, VAPIX support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, human detection, Vehicle Detection, OptimizedIR, memory card encryption, NAS-Ready, up to 2 view areas |
| Image Sensor |
| Type |
8 MP PS RGB CMOS 1/1.8" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2 x |
| Focal Length |
4.3 mm - 8.6 mm |
| Lens Iris |
F/1.5 auto iris (P-Iris) |
| Min Focus Distance |
50 cm |
| Horizontal Field of View (degree) |
53 - 100 |
| Vertical Field of View (degree) |
30 - 54 |
| Panning |
| Range (degree) |
-190 to +190 |
| Tilting |
| Range (degree) |
-10 to +80 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack
Digital input/output - terminal block |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Drill hole template, RESISTORX T20 screw bit, terminal block connectors, cable gaskets, connector guard |
| Compliant Standards |
PVC-free, BFR-free, CFR free, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, EMC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KN32 Class A, KCC KN35, RCM, AS/NZS CISPR 32 Class A, VCCI Class A, CAN/CSA C22.2 No. 62368-1 ThirdEdition, IEC/EN/UL 62368-1, IEC/EN 62471, IS13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK10, NIST SP500-267 |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
PoE Plus Class 3 |
| Power Device |
5.5 Watt |
| Software / System Requirements |
| Software Included |
AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 85% RH (non-condensing) |
