| Marketing Description |

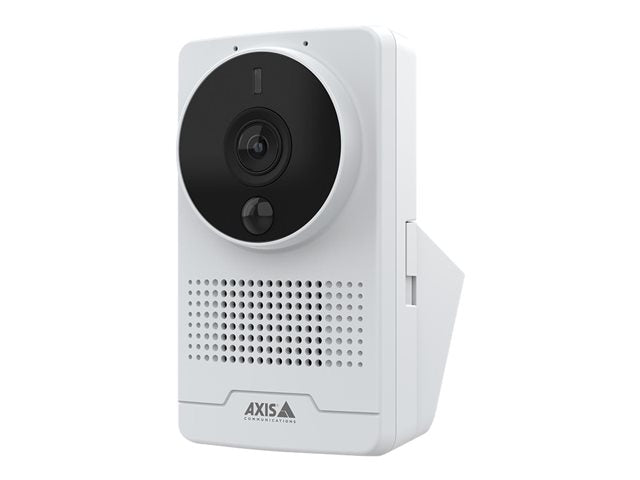

| Ideal for small stores and residential care, this compact, easy-to-install camera offers two-way audio and great image quality - around the clock. It supports advanced analytics based on deep learning on the edge. |
| Product Features |
-
Ensure privacy and security
This fully featured camera is designed with privacy and security in mind. It features a tally LED to indicate video streaming or recording. And, with AXIS Live Privacy Shield, it's easy to remotely monitor activities while protecting privacy. Furthermore, AXIS M1075-L is packed with built-in cybersecurity features to help prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed.
-
Video - and audio too
AXIS M1075-L offers HDTV 1080p resolution with two-way audio and great image quality. Thanks to an IR-corrected lens, you'll enjoy professional-quality video both day and night. It features a built-in speaker and dual microphones. Plus, voice enhancer ensures great two-way audio communication. And, with support for Session Initiation Protocol (SIP), it's easy to integrate with IP-systems. Furthermore, this easy-to-install box camera can be mounted in corners for complete coverage with a 103° field of view.
-
Extended possibilities
This compact camera includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics based on deep learning on the edge. Thanks to AXIS Object Analytics including time in area feature (beta), it lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering. With passive infrared (PIR) sensor, it can detect movement even in total darkness. And, an HDMI port lets you display live video on a public viewing monitor. Furthermore, this camera offers support for PoE and includes both an I/O and USB port for optional wifi-dongle.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability, built-in microphone, built-in speaker |
| Audio Formats |
LPCM, AAC-LC, G.711, PCM, ADPCM, OPUS |
| Form Factor |
Box |
| Camera Mount Type |
Wall mount |
| Connectivity Technology |
Wired |
| Width |
6 cm |
| Depth |
9.3 cm |
| Height |
10.5 cm |
| Weight |
153 g |
| Localisation |
United States, United Kingdom, Korea, Japan, India, Europe, China, Brazil, Argentina, Australia |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
1/5 sec - 1/19000 sec |
| Minimum Illumination |
0.18 lux - colour - F2.0 - 50 IRE
0.04 lux - B&W - F2.0 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
18 m |
| Digital Video Capture Resolution |
1920 x 1080, 320 x 240, 1280 x 960, 640 x 360 |
| Frame Rate (max) |
30 frames per second |
| RAM |
1 GB |
| Flash Memory |
512 MB |
| Features |
Lightfinder technology, Wide Dynamic Range (WDR), progressive scanning, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), saturation control, contrast control, brightness control, sharpness control, 180° image rotation, 270° image rotation, 90° image rotation, compression, Corridor mode, exposure mode, exposure zone, image mirror, image overlay, white balance, polygon privacy mask, full duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VoIP support, human detection, Vehicle Detection, Line Crossing Detection, Face Recognition, secure boot, IP address filtering, aluminium housing, plastic housing, PIR detection |
| Image Sensor |
| Type |
RGB CMOS 1/2.9" |
| Lens Construction |
| Type |
M12 mount - fixed focal |
| Focal Length |
3.16 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
103 |
| Vertical Field of View (degree) |
55 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, SSH, SIP, LLDP, MQTT, Zeroconf, Syslog |
| Alarm Inputs Qty |
1 |
| Alarm Outputs Qty |
1 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
USB
Micro-HDMI |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Wall mount kit, terminal block connectors |
| Compliant Standards |
AES-256, Common Criteria EAL4+, IEEE 802.1x, TLS v1.3, IEEE 802.1ar, TLS v1.2, X.509, BFR-free, CFR free, PVC-free, IEEE 802.3af, IEEE 802.3at, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, AS/NZS CISPR 32 Class A, RCM, VCCI Class A, CAN/CSA C22.2 No. 62368-1 ThirdEdition, IEC/EN/UL 62368-1, IEC 62471, NIST SP500-267 |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
PoE Class 3 |
| Power Device |
5.4 Watt |
| Software / System Requirements |
| Software Included |
AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user licence, AXIS Companion, AXIS Camera Station |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
35 °C |
| Relative Humidity (operating) |
10 - 85% RH (non-condensing) |
