| Marketing Description |

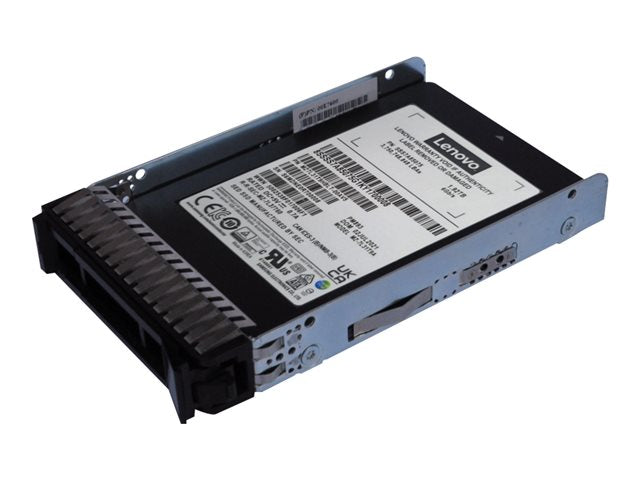

The ThinkSystem PM893 Read Intensive SATA SSDs are general-purpose SSDs based on the Samsung PM893 platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the PM893 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions. |
| Product Features |
-
Enhanced durability
With an MTBF of 2,000,000 hours and equipped with Dynamic Thermal Guard protection, this solid state drive offers exceptional durability and reliability for continuous operation in challenging environments.
-
High-speed performance
Boasting an internal data rate of 560 MBps for reading and 530 MBps for writing, alongside 4KB random reads of 98000 IOPS and writes of 31000 IOPS, the drive ensures swift and efficient data access and transfer.
-
Advanced data protection
Features such as Advanced ECC Engine, End-to-end data protection, and Power Loss Protection (PLP) safeguard your data from corruption and loss, ensuring data integrity and security.
-
Optimized for efficiency
With a power consumption of only 2.2 watts during read operations and 3.2 watts during write operations, this SSD combines high performance with energy efficiency, reducing operational costs.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
7.68 TB |
| NAND Flash Memory Type |
3D triple-level cell (TLC) |
| Form Factor |
2.5" |
| Interface |
SATA 6Gb/s |
| Features |
End-to-end data protection, Dynamic Thermal Guard protection, Advanced ECC Engine, Power Loss Protection (PLP), Samsung V6 128-layer TLC V-NAND, S.M.A.R.T. |
| Width |
70 mm |
| Depth |
100 mm |
| Height |
7 mm |
| Weight |
58 g |
| Performance |
| Drive Writes Per Day (DWPD) |
1 |
| SSD Endurance |
14.016 PB |
| Drive Class |
Read Intensive |
| Drive Transfer Rate |
600 MBps (external) |
| Internal Data Rate |
560 MBps (read) / 530 MBps (write) |
| 4KB Random Read |
98000 IOPS |
| 4KB Random Write |
31000 IOPS |
| Average Latency |
40 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
2.2 Watt (read)
3.2 Watt (write) |
| Miscellaneous |
| Included Accessories |
Hot-plug tray |
| Compliant Standards |
UL, TUV, C-Tick, BSMI, FCC, KCC |
| Dimensions & Weight (Shipping) |
| Shipping Width |
13.3 cm |
| Shipping Depth |
17.4 cm |
| Shipping Height |
6.3 cm |
| Shipping Weight |
433 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) |
1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) |
20 g @ 20-2000 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkSystem SD530 7X21 (2.5")
Lenovo ThinkSystem SN550 7X16 (2.5")
Lenovo ThinkSystem SN550 V2 7Z69 (2.5")
Lenovo ThinkSystem SN850 7X15 (2.5")
Lenovo ThinkSystem SR250 7Y51 (2.5"), 7Y52 (2.5")
Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08 (2.5")
Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5")
Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5")
Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5")
Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5")
Lenovo ThinkSystem SR630 V2 7Z70 (2.5"), 7Z71 (2.5")
Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5")
Lenovo ThinkSystem SR645 7D2X (2.5"), 7D2Y (2.5")
Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5")
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z72 (2.5"), 7Z73 (2.5")
Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5")
Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5")
Lenovo ThinkSystem SR670 7Y36 (2.5"), 7Y37 (2.5")
Lenovo ThinkSystem SR670 V2 7Z22 (2.5"), 7Z23 (2.5")
Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5")
Lenovo ThinkSystem SR850 V2 7D31 (2.5"), 7D32 (2.5")
Lenovo ThinkSystem SR850P 7D2F (2.5")
Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5")
Lenovo ThinkSystem SR860 V2 7Z59 (2.5"), 7Z60 (2.5")
Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5")
Lenovo ThinkSystem ST250 7Y45 (2.5"), 7Y46 (2.5")
Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10 (2.5")
Lenovo ThinkSystem ST650 V2 7Z74 (2.5"), 7Z75 (2.5") |
