| Marketing Description |

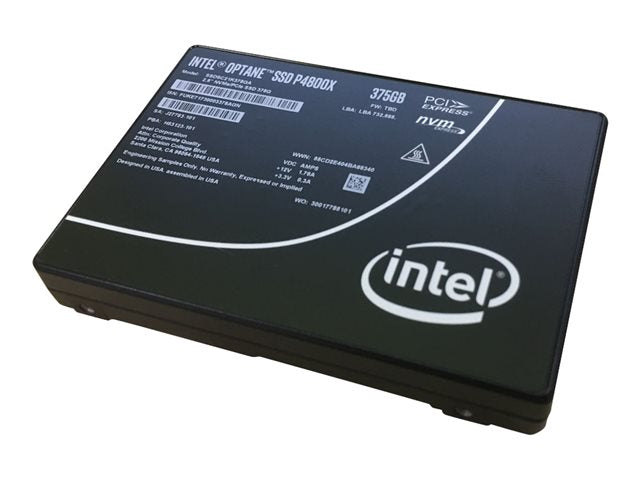

The ThinkSystem U.2 Intel P4800X Performance NVMe PCIe SSD is the ultimate in high performance solid state drives with ultra-low latency, very high bandwidth, and an endurance of 30 drive writes per day (DWPD), making this drive an excellent storage choice for write-intensive high-performance workloads.
The Intel P4800X SSD is a member of the Intel Optane family of data center solid state devices that are based on Intel-developed 3D XPoint memory, controller, interconnect technology and firmware, all providing significant gains in reducing latency and accelerating systems for workloads demanding large capacity and fast storage. |
| Product Features |
-
Robust durability
Engineered to withstand tough conditions, the Lenovo Intel Optane P4800X Performance SSD has an impressive MTBF of 2,000,000 hours, ensuring reliability and longevity.
-
Exceptional performance
With up to 550,000 IOPS for both 4KB random read and write, and internal data rates of 2.5 GBps (read) and 2.2 GBps (write), this SSD delivers fast performance for demanding applications.
-
Advanced data protection
Features like end-to-end data path protection, enhanced power loss data protection, and thermal throttling safeguard your data, ensuring peace of mind and system stability.
-
Efficient power consumption
Optimized for efficiency, the drive consumes only 8 W during read operations and 13 W during write operations, balancing performance with energy conservation.
-
High capacity and endurance
With a generous 375 GB capacity and an SSD endurance of 20.5 PB, this drive is capable of handling heavy-duty tasks over an extended period without compromise.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
375 GB |
| Form Factor |
2.5" |
| Interface |
U.2 PCIe 3.0 x4 (NVMe) |
| Features |
Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, S.M.A.R.T. |
| Width |
70 mm |
| Depth |
100 mm |
| Height |
15 mm |
| Performance |
| Drive Writes Per Day (DWPD) |
30 |
| SSD Endurance |
20.5 PB |
| Internal Data Rate |
2.5 GBps (read) / 2.2 GBps (write) |
| 4KB Random Read |
550000 IOPS |
| 4KB Random Write |
550000 IOPS |
| Average Latency |
10 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x PCI Express 3.0 x4 (NVMe) - U.2 (SFF-8639) |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
8 Watt (read)
13 Watt (write) |
| Software & System Requirements |
| OS Required |
Red Hat Enterprise Linux 6 x64 Edition, SuSE Linux Enterprise Server 11 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2016, VMware ESXi 6.0, VMware ESXi 6.5 |
| Miscellaneous |
| Compliant Standards |
CSA, UL, C-Tick, BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, KCC Article 11.1 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (operating) |
1000 g @ 0.5 ms |
| Vibration Tolerance (operating) |
2.17 g @ 5-700 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile VX 2U Certified Node (2.5")
Lenovo ThinkAgile VX 2U4N Certified Node (2.5")
Lenovo ThinkAgile VX Certified Node 7Y94 (2.5"), 7Z12 (2.5")
Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5")
Lenovo ThinkAgile VX3720 Appliance 7Y92 (2.5")
Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX7820 Appliance 7Z13 (2.5")
Lenovo ThinkSystem SD530 (2.5")
Lenovo ThinkSystem SN550 (2.5")
Lenovo ThinkSystem SN850 (2.5")
Lenovo ThinkSystem SR630 (2.5")
Lenovo ThinkSystem SR650 (2.5")
Lenovo ThinkSystem SR850 (2.5")
Lenovo ThinkSystem SR860 (2.5")
Lenovo ThinkSystem SR950 (2.5") |
