| Marketing Description |

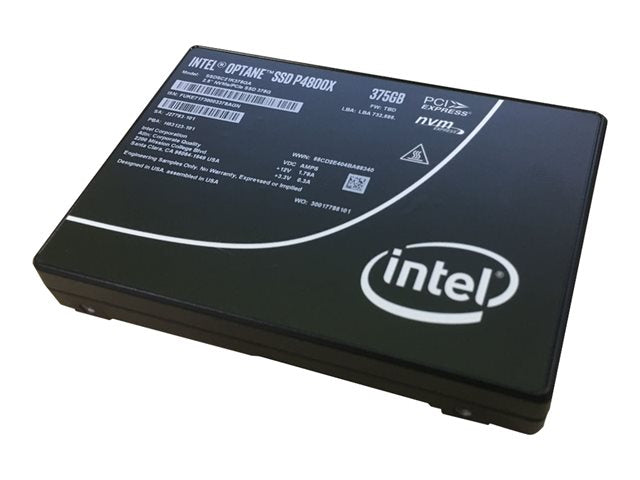

The ThinkSystem U.2 Intel P4800X Performance NVMe PCIe SSD is the ultimate in high performance solid state drives with ultra-low latency, very high bandwidth, and an endurance of 30 drive writes per day (DWPD), making this drive an excellent storage choice for write-intensive high-performance workloads.
The Intel P4800X SSD is a member of the Intel Optane family of data center solid state devices that are based on Intel-developed 3D XPoint memory, controller, interconnect technology and firmware, all providing significant gains in reducing latency and accelerating systems for workloads demanding large capacity and fast storage. |
| Product Features |
-
Robust durability
Engineered to withstand tough conditions, the Lenovo Intel Optane P4800X Performance SSD boasts an impressive MTBF of 2,000,000 hours, ensuring reliability and longevity.
-
Exceptional performance
With 4KB random read and write IOPS of 550,000 and an average latency of just 10 μs, this SSD delivers speed and efficiency for handling demanding workloads.
-
Advanced thermal management
Features such as thermal throttling and enhanced power loss data protection safeguard the drive against overheating, ensuring consistent performance even under high stress.
-
High capacity storage
Offering a generous 750 GB capacity, this SSD provides ample space for large datasets, applications, and more, making it a suitable solution for high-performance computing environments.
-
Energy efficient
Optimized for efficiency, the drive consumes only 10 W during read operations and 15 W during write operations, reducing energy costs and contributing to a greener environment.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
750 GB |
| SSD Technology |
3D Xpoint (Optane) |
| Form Factor |
2.5" |
| Interface |
U.2 PCIe 3.0 x4 (NVMe) |
| Features |
Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, S.M.A.R.T. |
| Width |
70 mm |
| Depth |
100 mm |
| Height |
15 mm |
| Performance |
| Drive Writes Per Day (DWPD) |
30 |
| SSD Endurance |
41 PB |
| Internal Data Rate |
2.5 GBps (read) / 2.2 GBps (write) |
| 4KB Random Read |
550000 IOPS |
| 4KB Random Write |
550000 IOPS |
| Average Latency |
10 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x PCI Express 3.0 x4 (NVMe) - U.2 (SFF-8639) |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
10 Watt (read)
15 Watt (write) |
| Software & System Requirements |
| OS Required |
Red Hat Enterprise Linux 6 x64 Edition, SuSE Linux Enterprise Server 11 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2016, VMware ESXi 6.0, VMware ESXi 6.5 |
| Miscellaneous |
| Compliant Standards |
CSA, UL, C-Tick, BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, KCC Article 11.1 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (operating) |
1000 g @ 0.5 ms |
| Vibration Tolerance (operating) |
2.17 g @ 5-700 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile VX 2U Certified Node (2.5")
Lenovo ThinkAgile VX 2U4N Certified Node (2.5")
Lenovo ThinkAgile VX Certified Node 7Y94 (2.5"), 7Z12 (2.5")
Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5")
Lenovo ThinkAgile VX3720 Appliance 7Y92 (2.5")
Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX7820 Appliance 7Z13 (2.5")
Lenovo ThinkSystem SD530 (2.5")
Lenovo ThinkSystem SR630 (2.5")
Lenovo ThinkSystem SR650 (2.5")
Lenovo ThinkSystem SR850 (2.5")
Lenovo ThinkSystem SR860 (2.5")
Lenovo ThinkSystem SR950 (2.5") |
