| Marketing Description |

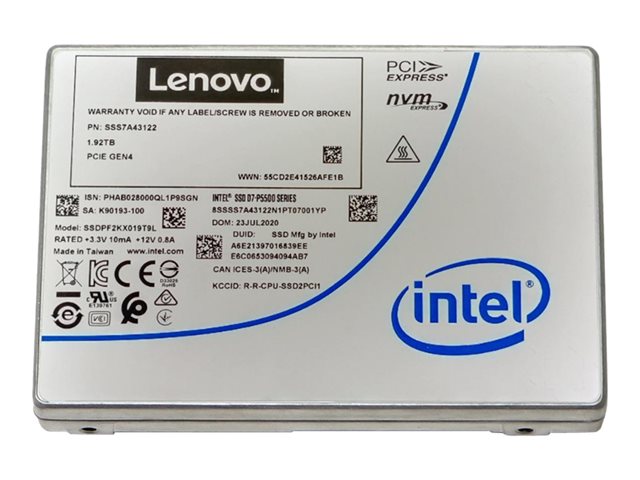

| The Intel SSD D7-P5500 Series Entry NVMe SSDs are general-purpose yet high-performance drives with a PCIe 4.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. |
| Product Features |
-
Robust durability
Engineered to withstand tough conditions, this solid state drive features end-to-end data path protection, thermal monitoring, and thermal throttling to ensure reliability and stability under high workloads.
-
High-speed performance
With an internal data rate of up to 3.5 GBps for reading and 1.7 GBps for writing, coupled with 400,000 IOPS for 4KB random reads and 59,000 IOPS for 4KB random writes, this drive delivers exceptional speed and efficiency for any task.
-
Advanced technology
Leveraging 96-layer 3D NAND technology, this SSD offers a generous 1.92 TB capacity while ensuring low latency and high endurance, with an SSD endurance of 3.5 PB and an average latency of just 10 μs.
-
Environmental resilience
Designed to operate across a wide range of temperatures from 0°C to 70°C and withstand humidity levels from 5 - 90% (non-condensing), ensuring performance stability in diverse operating conditions.
-
Comprehensive compatibility
Meets a broad spectrum of compliance standards including S.M.A.R.T., RoHS 2011/65/EU, and more, ensuring wide compatibility and high standards of safety and environmental responsibility.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
1.92 TB |
| NAND Flash Memory Type |
3D triple-level cell (TLC) |
| Form Factor |
2.5" |
| Interface |
U.2 PCIe 4.0 x4 (NVMe) |
| Features |
96-layer 3D NAND technology, End-to-end data path protection, Thermal throttling, Thermal Monitoring, S.M.A.R.T. |
| Width |
70 mm |
| Depth |
100 mm |
| Height |
15 mm |
| Weight |
146 g |
| Performance |
| Drive Writes Per Day (DWPD) |
1 |
| SSD Endurance |
3.5 PB |
| Internal Data Rate |
3.5 GBps (read) / 1.7 GBps (write) |
| 4KB Random Read |
400000 IOPS |
| 4KB Random Write |
59000 IOPS |
| Average Latency |
10 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x PCI Express 4.0 x4 U.2 (NVMe) |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
8.5 Watt (read)
15 Watt (write) |
| Miscellaneous |
| Compliant Standards |
FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA60950-1 (2nd Edition), LVD 2006/95/EC, AS/NZS 3584, C-Tick, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 90% (non-condensing) |
| Shock Tolerance (operating) |
1000 g @ 0.5 ms |
| Vibration Tolerance (operating) |
2.17 g @ 5-700 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile HX3330 Appliance 7Z85 (2.5")
Lenovo ThinkAgile HX3331 Certified Node 7D52 (2.5")
Lenovo ThinkAgile MX3330-F Appliance 7D19 (2.5")
Lenovo ThinkAgile MX3331-F Certified Node 7D67 (2.5")
Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5")
Lenovo ThinkAgile VX3331 7Z62 (2.5")
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7330-N Appliance 7Z62 (2.5")
Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5")
Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5")
Lenovo ThinkSystem SD530 7X21 (2.5")
Lenovo ThinkSystem SD630 V2 7D1K (2.5")
Lenovo ThinkSystem SN550 7X16 (2.5")
Lenovo ThinkSystem SN850 7X15 (2.5")
Lenovo ThinkSystem SR250 7Y51 (2.5"), 7Y52 (2.5")
Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5"), 7Y04 (2.5")
Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5")
Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5")
Lenovo ThinkSystem SR630 V2 7Z71 (2.5")
Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5")
Lenovo ThinkSystem SR645 7D2X (2.5")
Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5")
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5")
Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5")
Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5")
Lenovo ThinkSystem SR670 V2 7Z23 (2.5")
Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5")
Lenovo ThinkSystem SR850P 7D2F (2.5"), 7D2G (2.5"), 7D2H (2.5")
Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5")
Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5"), 7X13 (2.5")
Lenovo ThinkSystem ST650 V2 7Z74 (2.5"), 7Z75 (2.5") |
