| Marketing Description |

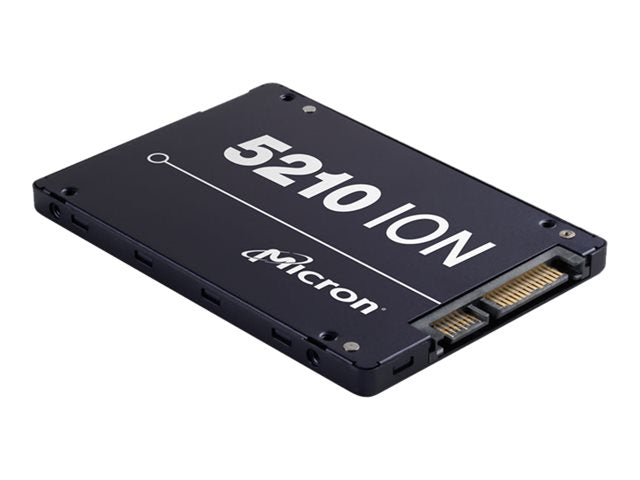

| The 5210 Entry SATA SSDs provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, big data, and media streaming. |
| Product Features |
- High reliability and enhanced ruggedness
- Absence of moving parts to reduce potential failure points in the server
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
1.92 TB |
| Hardware Encryption |
Yes |
| Encryption Algorithm |
256-bit AES |
| NAND Flash Memory Type |
3D quad-level cell (QLC) |
| Form Factor |
2.5" |
| Interface |
SATA 6Gb/s |
| Features |
64-layer 3D NAND technology, S.M.A.R.T. |
| Weight |
70 g |
| Performance |
| Drive Writes Per Day (DWPD) |
0.2 |
| SSD Endurance |
700 TB |
| Drive Transfer Rate |
600 MBps (external) |
| Internal Data Rate |
540 MBps (read) / 260 MBps (write) |
| 4KB Random Read |
70000 IOPS |
| 4KB Random Write |
13000 IOPS |
| Average Latency |
310 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
2.8 Watt (read)
3.9 Watt (write) |
| Miscellaneous |
| Compliant Standards |
Micron Green Standard, EN 55032 Class B, RoHS, FCC CFR47 Part 15 B Class B, UL 60950-1 Second Edition, BSMI CNS 13438, RCM, KCC KN32 Class B, KCC KN35 Class B, RRL, WEEE 2002/96/EC, TUV, IEC 60950, EN 60950, VCCI 2015.04 Class B, IC, CISPR 32 Class B, ICES-003:2016 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) |
1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) |
3.13 g @ 5-800 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile VX3520-G Appliance 7Y94 (2.5")
Lenovo ThinkSystem SD530 7X21 (2.5")
Lenovo ThinkSystem SN550 7X16 (2.5")
Lenovo ThinkSystem SN850 7X15 (2.5")
Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08 (2.5")
Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5")
Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5"), 7Y04 (2.5")
Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5")
Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5")
Lenovo ThinkSystem SR645 7D2X (2.5")
Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5")
Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5")
Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5")
Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5")
Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5"), 7X13 (2.5")
Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10 |
