| Marketing Description |

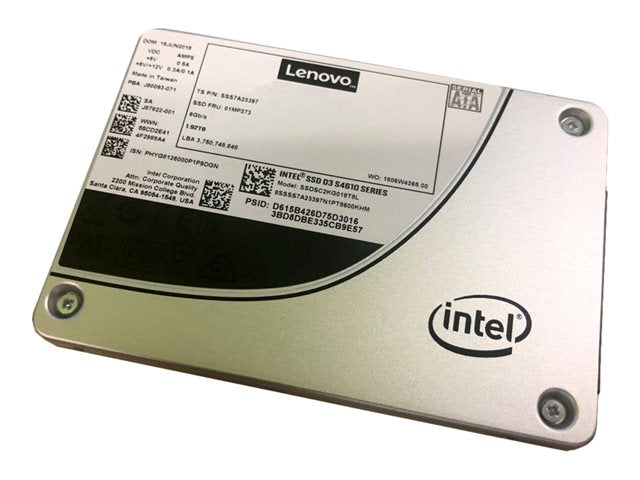

| The Intel S4610 Mainstream are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. |
| Product Features |
-
Enhanced durability
Built to withstand the demands of any environment, the Lenovo S4610 Mainstream SSD features end-to-end data path protection and High Endurance Technology (HET), ensuring data integrity and an SSD endurance of 3 PB.
-
Optimized performance
Experience superior performance with 3D NAND technology, offering a data transfer rate of 600 MBps, and impressive 4KB random read and write IOPS of 90,000 and 46,000, respectively. The drive's average latency of 36 μs and thermal throttling feature maintain optimal operation.
-
Secure data storage
With 256-bit AES hardware encryption, the Lenovo S4610 Mainstream SSD provides secure data storage, safeguarding your data against unauthorized access and ensuring compliance with various regulatory standards.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
480 GB |
| Hardware Encryption |
Yes |
| Encryption Algorithm |
256-bit AES |
| NAND Flash Memory Type |
3D triple-level cell (TLC) |
| Form Factor |
2.5" |
| Interface |
SATA 6Gb/s |
| Features |
High Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, 3D NAND Technology, S.M.A.R.T. |
| Weight |
63 g |
| Performance |
| Drive Writes Per Day (DWPD) |
3.4 |
| SSD Endurance |
3 PB |
| Drive Transfer Rate |
600 MBps (external) |
| Internal Data Rate |
560 MBps (read) / 510 MBps (write) |
| 4KB Random Read |
90000 IOPS |
| 4KB Random Write |
46000 IOPS |
| Average Latency |
36 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
2.9 Watt (typical) |
| Miscellaneous |
| Included Accessories |
Hard drive tray |
| Compliant Standards |
FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN60950-1 (2nd Edition), LVD 2006/95/EC, C-Tick, AS/NZS 3584, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (operating) |
1000 g @ 0.5 ms |
| Vibration Tolerance (operating) |
2.17 g @ 5-700 Hz |
| Vibration Tolerance (non-operating) |
3.13 g @ 5-800 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile HX3321 Certified Node 7Y89 (2.5")
Lenovo ThinkAgile HX3721 Certified Node 7Y88 (2.5")
Lenovo ThinkAgile HX7520 Appliance 7X84 (2.5")
Lenovo ThinkAgile HX7820 Appliance 7Y95 (2.5"), 7Z08 (2.5")
Lenovo ThinkAgile HX7821 Certified Node 7Y96 (2.5"), 7Z09 (2.5")
Lenovo ThinkAgile MX3330-F Appliance 7D19 (2.5")
Lenovo ThinkAgile MX3331-F Certified Node 7D67 (2.5")
Lenovo ThinkAgile VX 1SE Certified Node 7Z58 (2.5")
Lenovo ThinkAgile VX Certified Node 7Y94 (2.5"), 7Z12 (2.5")
Lenovo ThinkAgile VX1320 Appliance 7Z58 (2.5")
Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5")
Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5")
Lenovo ThinkAgile VX3331 7Z62 (2.5")
Lenovo ThinkAgile VX3520-G Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX3720 Appliance 7Y92 (2.5")
Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5")
Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5")
Lenovo ThinkAgile VX7820 Appliance 7Z13 (2.5")
Lenovo ThinkSystem SR250 7Y51 (2.5")
Lenovo ThinkSystem SR530 (2.5")
Lenovo ThinkSystem SR550 (2.5")
Lenovo ThinkSystem SR570 (2.5")
Lenovo ThinkSystem SR590 (2.5")
Lenovo ThinkSystem SR630 V2 7Z71 (2.5")
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5")
Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5")
Lenovo ThinkSystem SR670 7Y37 (2.5")
Lenovo ThinkSystem SR670 V2 7Z23 (2.5")
Lenovo ThinkSystem SR850 V2 7D32 (2.5")
Lenovo ThinkSystem SR860 (2.5")
Lenovo ThinkSystem SR860 V2 7Z60 (2.5")
Lenovo ThinkSystem SR950 (2.5")
Lenovo ThinkSystem ST250 7Y45 (2.5")
Lenovo ThinkSystem ST650 V2 7Z74 (2.5"), 7Z75 (2.5") |
