| Marketing Description |

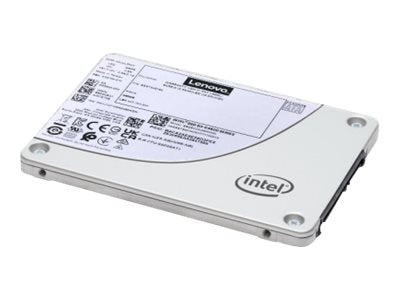

| The design of the S4620 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS. |
| Product Features |
-
Enhanced durability
Built to withstand the rigors of daily use, this solid state drive boasts an impressive MTBF of 2,000,000 hours, ensuring reliability and longevity.
-
High-speed performance
Experience swift data access with internal data rates of up to 550 MBps read and 500 MBps write, complemented by a 4 KB random read of 82,000 IOPS and a 4 KB random write of 50,000 IOPS, making it ideal for mixed-use applications.
-
Robust data protection
Equipped with end-to-end data protection and power loss data protection, this drive ensures the safety of your data even in the event of unexpected power outages.
-
Optimized for harsh environments
Designed to operate in a wide range of temperatures from 0°C to 70°C and withstand humidity levels from 5 to 95% (non-condensing), this SSD is suitable for deployment in diverse operating conditions.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
480 GB |
| NAND Flash Memory Type |
3D triple-level cell (TLC) |
| Form Factor |
2.5" |
| Interface |
SATA 6Gb/s |
| Features |
End-to-end data protection, power loss data protection, S.M.A.R.T. |
| Width |
70 mm |
| Depth |
100 mm |
| Height |
7 mm |
| Weight |
70 g |
| Performance |
| Drive Writes Per Day (DWPD) |
4.7 |
| SSD Endurance |
4.2 PB |
| Drive Class |
Mixed Use |
| Drive Transfer Rate |
600 MBps (external) |
| Internal Data Rate |
550 MBps (read) / 500 MBps (write) |
| 4KB Random Read |
82000 IOPS |
| 4KB Random Write |
50000 IOPS |
| Average Latency |
36 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
2.5" |
| Miscellaneous |
| Compliant Standards |
VCCI, ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, CNS 13438, RoHS 2011/65/EU, EN55022:2006, AS/NZS CISPR22:2009+A1:2010, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, EN 55032:2012, KCC Article 11.1, AS/NZS CISPR 32:2015, EN 55035:2017, FCC Title 47 |
| Pricing Type |
Customer-replaceable Unit (CRU) |
| Dimensions & Weight (Shipping) |
| Shipping Width |
17.4 cm |
| Shipping Depth |
13.3 cm |
| Shipping Height |
6.3 cm |
| Shipping Weight |
434 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) |
1000 g @ 0.5 ms |
| Vibration Tolerance (operating) |
5-700 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5")
Lenovo ThinkSystem SD530 7X21 (2.5")
Lenovo ThinkSystem SN550 7X16 (2.5")
Lenovo ThinkSystem SN850 7X15 (2.5")
Lenovo ThinkSystem SR250 7Y51, 7Y52 (2.5")
Lenovo ThinkSystem SR250 V2 7D7Q
Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08
Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5")
Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5")
Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99
Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02
Lenovo ThinkSystem SR630 V2 7Z71
Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5")
Lenovo ThinkSystem SR645 7D2X, 7D2Y (2.5")
Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73
Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5")
Lenovo ThinkSystem SR665 7D2V, 7D2W (2.5")
Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5")
Lenovo ThinkSystem SR850 V2 7D31 (2.5"), 7D32 (2.5")
Lenovo ThinkSystem SR850P 7D2F (2.5")
Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5")
Lenovo ThinkSystem SR860 V2 7Z59 (2.5"), 7Z60 (2.5")
Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5")
Lenovo ThinkSystem ST250 7Y45 (2.5"), 7Y46 (2.5")
Lenovo ThinkSystem ST250 V2 7D8F
Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10
Lenovo ThinkSystem ST650 V2 7Z74 |
