| Marketing Description |

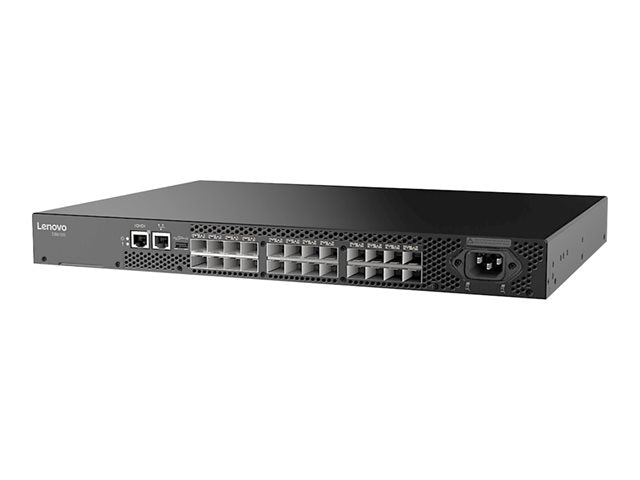

The Lenovo ThinkSystem DB610S FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fiber Channel technology and combining flexibility, simplicity, and enterprise-class functionality to meet the demands of growing flash-based storage environments.
Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S is a compact, 1U rack-mount FC switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.
The DB610S FC SAN Switch features the EZSwitch Setup wizard and can be configured in Access Gateway Mode to simplify deployment. The switch provides full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection. |
| Product Features |
-
Robust performance
With an aggregate throughput of 768 Gbps and a switching latency of just 0.9 µs, the Lenovo ThinkSystem DB610S ensures high-speed data transmission and efficient network traffic management, making it ideal for demanding data center environments.
-
Comprehensive connectivity
Equipped with 32Gb Fiber Channel SFP+ ports, along with management, serial, and USB interfaces, this switch offers versatile connectivity options to meet the diverse needs of modern IT infrastructures.
-
Enhanced security
The Lenovo ThinkSystem DB610S supports multiple authentication methods including FCAP, LDAP, RADIUS, and TACACS+, alongside SSL encryption, providing a secure networking environment by safeguarding against unauthorized access.
-
Optimal environmental adaptability
Designed to operate within a wide range of temperatures and humidity levels, this switch ensures reliable performance in various environmental conditions, from 0°C to 40°C and 10% to 85% humidity (non-condensing).
-
Efficient management and standards compliance
This device is manageable via CLI, SCP, SFTP, SMI-S, and SSH, offering flexibility in remote management. It complies with numerous standards, including CISPR 22, EN 55032, and FCC Part 15 B, ensuring its compatibility and safety in global IT infrastructures.
|
| General |
| Device Type |
Switch - 24 ports - Managed - with Enterprise Software |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Fibre Channel |
| Ports |
24 x 32Gb Fibre Channel SFP+ |
| Performance |
Aggregate throughput: 768 Gbps
Switching latency: 0.9 µs |
| Capacity |
Maximum frame size: 2112 byte
Frame buffers: 2000 |
| Fibre Channel |
FC-DA, FC-FS, FC-GS-4, FC-SB, FC-SB-2, FC-SB-3, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-BB-6, FC-SB-5, FC-FS-4, FC-SW-6, FC-GS-7, FC-PI-6, FC-GS-8, FC-LS-3, FC-SB-6, FC-SW-7, MIB-FA |
| Remote Management Protocol |
SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SCP, SFTP |
| Encryption Algorithm |
SSL |
| Authentication Method |
RADIUS, TACACS+, LDAP, FCAP |
| Features |
Syslog support, IPv6 support, IP address filtering, firmware upgradable, Full Fabric, event log, ACL support, QoS, enviromental monitoring, FEC, RSCN support, Extended Fabric, ISL Trunking, FSPF, FDMI, RBAC, DPS, DLS, RCS, SNS, FCAP, POST, NTP, flow mirroring, DFP, 3+1 redundant fans, TIZ, RRD |
| Expansion / Connectivity |
| Interfaces |
24 x 4/8/16/32Gb Fibre Channel SFP+
1 x management (Gigabit LAN) RJ-45
1 x serial RJ-45
1 x USB |
| Power |
| Power Device |
Internal power supply |
| Power Provided |
150 Watt |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Included Accessories |
24 x 16Gb Fibre Channel SFP+ Short Wave Transceiver |
| Cables Included |
1 x DB-9 to RJ-45 adapter |
| Rack Mounting Kit |
Included |
| Compliant Standards |
VCCI, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC Part 15 B, UL 60950-1, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438, KN32, KN35, CNS 14336-1, EN 55032 |
| Software / System Requirements |
| Software Included |
ISL Trunking, Extended Fabric |
| Dimensions & Weight |
| Width |
42.9 cm |
| Depth |
30.7 cm |
| Height |
4.3 cm |
| Weight |
4.2 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year - response time: next business day
New releases update - 3 years
Technical support - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 85% (non-condensing) |
| Min Storage Temperature |
-25 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
10 - 90% (non-condensing) |
