| Marketing Description |

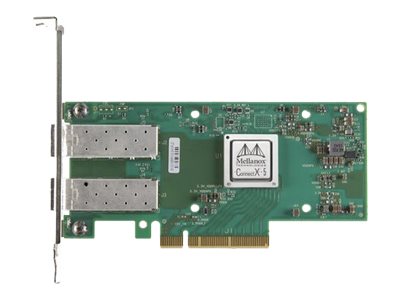

| The ThinkSystem Mellanox ConnectX-5 EN 10/25GbE SFP28 Ethernet adapter is a high-performance 25Gb Ethernet network adapter that offers multiple network offloads including RoCE v2, NVMe over Ethernet and Open vSwitch. |
| Product Features |
-
Cloud and Web 2.0 environments
ConnectX-5 adapter cards enable data center administrators to benefit from better server utilization and reduced costs, power usage, and cable complexity, allowing for more virtual appliances, virtual machines and tenants to co-exist on the same hardware. Cloud and Web 2.0 customers developing platforms on Software Defined Network (SDN) environments are leveraging the Virtual-Switching capabilities of the server operating systems to achieve maximum flexibility. Open vSwitch (OvS) is an example of a virtual switch that allows Virtual Machines to communicate with each other and with the outside world. Traditionally residing in the hypervisor where switching is based on twelve-tuple matching onflows, the virtual switch, or virtual router software-based solution, is CPU-intensive. This can negatively affect system performance and prevent the full utilization of available bandwidth. Mellanox ASAP2 (Accelerated Switching and Packet Processing) technology enables offloading the vSwitch/vRouter by handling the data plane in the NIC hardware, without modifying the control plane. This results in significantly higher vSwitch/vRouter performance without the associated CPU load.
-
Storage environments
NVMe storage devices are gaining popularity by offering very fast storage access. The evolving NVMe over Fabric (NVMe-oF) protocol leverages the RDMA connectivity for remote access. ConnectX-5 offers further enhancements by providing NVMe-oF target offloads, enabling very efficient NVMe storage access with no CPU intervention, and thus improving performance and reducing latency. The embedded PCIe switch enables customers to build standalone storage or Machine Learning appliances. As with earlier generations of ConnectX adapters, standard block and file access protocols leverage RoCE for high-performance storage access. A consolidated compute and storage network achieves significant cost-performance advantages over multi-fabric networks. ConnectX-5 enables an innovative storage rack design, Host Chaining, which enables different servers to interconnect without involving the top-of-rack switch. Leveraging Host Chaining, ConnectX-5 lowers the data center's total cost of ownership by reducing CAPEX (cables, NICs, and switch port expenses). OPEX is also reduced by cutting down on switch port management and overall power usage.
-
Storage environments
NVMe storage devices are gaining popularity by offering very fast storage access. The evolving NVMe over Fabric (NVMe-oF) protocol leverages the RDMA connectivity for remote access. ConnectX-5 offers further enhancements by providing NVMe-oF target offloads, enabling very efficient NVMe storage access with no CPU intervention, and thus improving performance and reducing latency. The embedded PCIe switch enables customers to build standalone storage or Machine Learning appliances. As with earlier generations of ConnectX adapters, standard block and file access protocols leverage RoCE for high-performance storage access. A consolidated compute and storage network achieves significant cost-performance advantages over multi-fabric networks. ConnectX-5 enables an innovative storage rack design, Host Chaining, which enables different servers to interconnect without involving the top-of-rack switch. Leveraging Host Chaining, ConnectX-5 lowers the data center's total cost of ownership by reducing CAPEX (cables, NICs, and switch port expenses). OPEX is also reduced by cutting down on switch port management and overall power usage.
-
Telecommunications
Telecommunications service providers are moving towards disaggregation, server virtualization, and orchestration as key tenets to modernize their networks. Likewise, they're also moving towards Network Function Virtualization (NFV), which enables the rapid deployment of new network services. With this move, proprietary dedicated hardware and software, which tend to be static and difficult to scale, are being replaced with virtual machines running on commercial off-the-shelf (COTS) servers. For telecom service providers, choosing the right networking hardware is critical to achieving a cloud-native NFV solution that is agile, reliable, fast and efficient. Telco service providers typically leverage virtualization and cloud technologies to better achieve agile service delivery and efficient scalability; these technologies require an advanced network infrastructure to support higher rates of packet processing. However, the resultant east-west traffic causes numerous interrupts as I/O traverses from kernel to user space, eats up CPU cycles and decreases packet performance. Particularly sensitive to delays are voice and video applications which often require less than 100ms of latency. ConnectX-5 adapter cards drive extremely high packet rates, increased throughput and drive higher network efficiency through the following technologies; Open vSwitch Offloads (OvS), OvS over DPDK or ASAP2, Network Overlay Virtualization, SR-IOV, and RDMA. This allows for secure data delivery through higher-performance offloads, reducing CPU resource utilization, and boosting data center infrastructure efficiency. The result is a much more responsive and agile network capable of rapidly deploying network services.
|
| General |
| Device Type |
Network adapter |
| Form Factor |
Plug-in card - low profile |
| Interface (Bus) Type |
PCI Express 3.0 x8 |
| Networking |
| Ports |
10/25 Gigabit SFP28 x 2 |
| Connectivity Technology |
Wired |
| Data Link Protocol |
10 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE), 25 Gigabit Ethernet |
| Data Transfer Rate |
25 Gbps |
| Capacity |
Jumbo frame size: 9.6 KB
Virtual functions: 512
Physical functions per port: 8 |
| Network / Transport Protocol |
SRP |
| Features |
MPLS support, TCP/IP offloading, QoS, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, adaptive routing, tagged VLAN, UDP/IP offloading, iSCSI remote boot, HDS, Ethernet remote boot, TSS, NC-SI, VXLAN, NVGRE, XRC transport, DCT, UMR, ODP, OVS Offload, DPDK, iSCSI Extensions over RDMA (iSER), Jumbo Frames support (up to 9600 bytes), Interrupt coalescing, NVMf Offloads, PeerDirect RDMA, 64/66 encoding, Rendezvous protocol offload, MPI Tag Matching, burst buffer offload, In-Network Memory registration-free RDMA memory access, GENEVE support, NVMe-oF |
| Compliant Standards |
IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qau, IEEE 802.3q, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 1149.6 |
| Processor / Memory |
| Processor |
1 x Mellanox ConnectX-5 |
| Expansion / Connectivity |
| Interfaces |
2 x 10Gb Ethernet/25Gb Ethernet - SFP28 |
| Miscellaneous |
| Included Accessories |
Low-profile bracket, full-height bracket |
| Compliant Standards |
VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM |
| Software / System Requirements |
| OS Required |
Microsoft Windows Server 2016, Red Hat Enterprise Linux 8.0, Microsoft Windows Server 2019, SUSE Linux Enterprise Server 15, VMware vSphere Hypervisor 6.5 (ESXi), VMware vSphere Hypervisor 6.7 (ESXi), SUSE Linux Enterprise Server 15 with Xen, Red Hat Enterprise Linux 7.6, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.5 (ESXi) Update 3, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 8.3, VMware vSphere Hypervisor 6.7 (ESXi) Update 2, VMware vSphere Hypervisor 6.7 (ESXi) Update 1, VMware vSphere Hypervisor 6.5 (ESXi) Update 1, VMware vSphere Hypervisor 6.5 (ESXi) Update 2 |
| Dimensions & Weight |
| Depth |
14.2 cm |
| Height |
6.9 cm |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
55 °C |
| Humidity Range Operating |
0 - 90% (non-condensing) |
| Compatibility Information |
| Designed For |
Lenovo ThinkSystem SR630 7X01, 7X02
Lenovo ThinkSystem SR650 7X05, 7X06 |
