| Marketing Description |

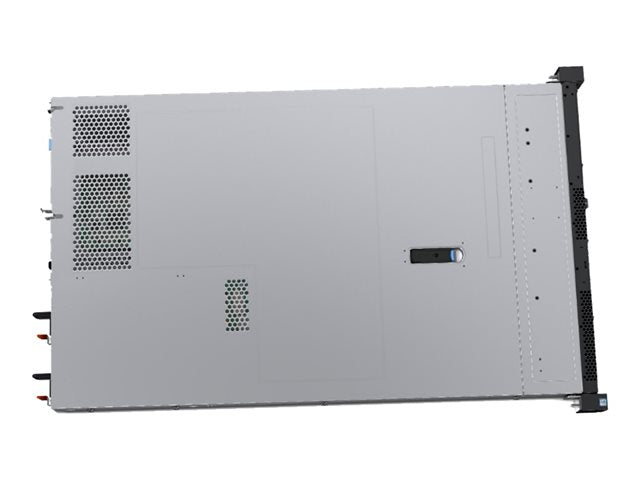

| The 1U Lenovo ThinkSystem SR570 rack server is an excellent fit for Big Data, web serving, and infrastructure scale-out. It's designed for rack environments, that require peak memory and two-socket performance, flexible storage, outstanding value, and intuitive management. It can accelerate compute performance across a wide range of applications with a powerful processor. The SR570's faster memory and greater memory capacity power larger workloads. |
| Product Features |
-
Versatile
Adapt to changing workload requirements and boost I/O throughput with multiple NIC form factors, including LOM, ML2, and 3x PCIe 3.0 slots, as well as replaceable I/O riser cards for varied adapter slot configurations. The SR570 supports hot-swap or simple-swap drive bays. These drive bays support SAS and SATA HDDs and SSDs with up to 12 Gb SAS throughput. Four of the bays can be AnyBay, capable of supporting not only SAS/SATA drives, but also direct-connect NVMe drives for the ultimate in storage performance. The SR570 also supports one or two M.2 drives for faster, more secure OS boot.
-
Reliable and secure
Lenovo servers have been the extremely reliable in the industry. The SR570 is no exception, including many features, that contribute to the reliability and security of the server and your all-important data. As a result, Lenovo's servers enable customer satisfaction among x86 servers. These features result in a powerful, highly adaptable, cost-efficient server with a low TCO.
|
| General |
| Type |
Server |
| Product Form Factor |
Rack-mountable - 1U |
| Embedded Security |
Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Server Scalability |
2-way |
| Hot-Swap Bays Qty |
8 |
| Localisation |
Region: EMEA |
| Processor / Chipset |
| CPU |
Intel Xeon Silver 4216 |
| Clock Speed |
2.1 GHz |
| Max Turbo Speed |
3.2 GHz |
| Number of Cores |
16-core |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| Chipset Type |
Intel C622 |
| Cache Memory |
| Installed Size |
22 MB |
| Cache Per Processor |
22 MB |
| RAM |
| Installed Size |
32 GB (installed) / 512 GB (max) |
| Technology |
DDR4 SDRAM - ECC |
| Effective Memory Speed |
2400 MHz |
| Rated Memory Speed |
2666 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
16 (Total) / 15 (empty) |
| Features |
Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, Patrol Scrubbing, Demand Scrubbing, supports Intel Optane DC Persistent Memory (DCPMM) |
| Configuration Features |
1 x 32 GB |
| RAM Supported |
512 GB registered - ECC
1 TB Load-Reduced - ECC |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name |
ThinkSystem RAID 930-8i |
| Channel Qty |
8 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Buffer Size |
2 GB |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Matrox G200 |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller |
XClarity Controller (XCC) Enterprise |
| Expansion / Connectivity |
| Bays |
8 (total) / 8 (free) x hot-swap 2.5" |
| Slots |
1 (total) / 1 (free) x LAN-on-Motherboard (LOM)
1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile
1 (total) / 1 (free) x PCIe 3.0 x16
M.2 Card |
| Interfaces |
3 x USB 3.0 (1 front, 2 rear)
1 x USB 2.0 (1 in front)
1 x VGA (1 rear)
1 x management - RJ-45
2 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous |
| Included Accessories |
Tool-less rail kit |
| Compliant Standards |
TUV GS, BSMI CNS 13438 Class A, EN55024, EN55022 Class A, CCC, ICES-003 Class A, RoHS, UL 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, EAC, KN22 Class A, NMB-3 Class A, BIS, IEC60950-1, NOM-019, EK1-ITB2000, CNS 14336-1, IEC/EN 60950-1, TR CU 020/2011, TR CU 004/2011, CAN/CSA-C22.2 No. 60950-1, GB4943.1, AS/NZS CISPR22 Class A, EN61000-3-3, EN61000-3-2 |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Provided |
750 Watt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Operating System / Software |
| OS Provided |
No operating system |
| Sustainability Information |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
2.1 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight |
| Width |
43.4 cm |
| Depth |
71.5 cm |
| Height |
4.3 cm |
| Weight |
10.2 kg |
