| Marketing Description |

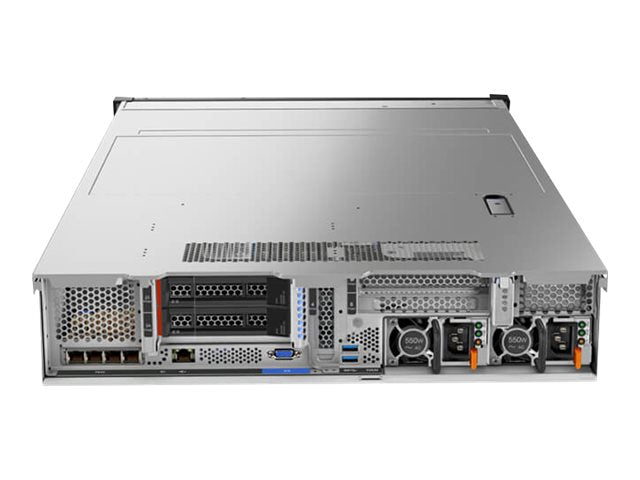

| Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data. |
| Product Features |
-
AnyBay design
The SR650 server features a unique AnyBay design that allows a choice of drive interface types in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives.
-
NVMe PCIe ports
The SR650 server offers onboard NVMe PCIe ports that allow direct connections to the U.2 NVMe PCIe SSDs, which frees up I/O slots and helps lower NVMe solution acquisition costs.
-
Energy efficiency
The SR650 server delivers impressive compute power per watt, featuring 80 Plus Titanium and Platinum redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when connected to a 200 - 240 V AC power source.
-
Lower energy costs
The SR650 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations, which enable customers to lower energy costs, while still maintaining world-class reliability.
|
| General |
| Type |
Server |
| Product Form Factor |
Rack-mountable - 2U |
| Embedded Security |
Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Server Scalability |
2-way |
| Hot-Swap Bays Qty |
8 |
| Localisation |
Region: EMEA |
| Processor / Chipset |
| CPU |
Intel Xeon Silver 4208 |
| Clock Speed |
2.1 GHz |
| Max Turbo Speed |
3.2 GHz |
| Number of Cores |
8-core |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| Chipset Type |
Intel C624 |
| Cache Memory |
| Installed Size |
11 MB |
| Cache Per Processor |
11 MB |
| RAM |
| Installed Size |
32 GB |
| Technology |
DDR4 SDRAM - ECC |
| Effective Memory Speed |
2400 MHz |
| Rated Memory Speed |
2933 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
24 (Total) / 23 (empty) |
| Features |
Registered, mixing of different types of memory modules is not supported, Memory Mirroring, Memory Sparing, Patrol Scrubbing, Demand Scrubbing, slots 13 - 24 are available in two-processor configuration only |
| Configuration Features |
1 x 32 GB |
| RAM Supported |
768 GB registered
1.5 TB Load-Reduced
3 TB 3DS registered |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name |
ThinkSystem RAID 9350-8i |
| Channel Qty |
8 |
| RAID Level |
RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60, JBOD |
| Buffer Size |
2 GB |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Matrox G200e |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Remote Management Controller |
XClarity Controller (XCC) Enterprise |
| Expansion / Connectivity |
| Bays |
8 (total) / 8 (free) x hot-swap 2.5" |
| Slots |
1 (total) / 1 (free) x LAN-on-Motherboard (LOM)
3 (total) / 3 (free) x PCIe 3.0 x16
2 (total) / 2 (free) x PCIe 3.0 x8 |
| Interfaces |
1 x management - RJ-45
3 x USB 3.0 (1 front, 2 rear)
1 x VGA
1 x USB 2.0 (1 in front) |
| Miscellaneous |
| Included Accessories |
Slide tool-less rail kit |
| Compliant Standards |
FCC Part 15 A, ICES-003 Class A, NMB-3 Class A, UL/CSA60950-1, NOM-019, IEC 60950-1, VCCI Class A, AS/NZS CISPR 22, BSMI CNS 13438 Class A, BSMI CNS 14336-1, GB 17625.1, GB 4943.1, GB 9254 Class A, KN22 Class A, KN24, GOST ME01, CB, EK1-ITB2000, EN 60950-1, EN 55022 Class A, EN55024, EN 61000-3-2, EN 61000-3-3, GOST-R 51317.3.2, GOST-R 51317.3.3, GOST-R 51318.22, GOST-R 51318.24, TUV GS, RoHS |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
750 Watt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Operating System / Software |
| OS Provided |
No operating system |
| Sustainability Information |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
3.0 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
72 cm |
| Height |
8.7 cm |
| Weight |
19 kg |
