| Marketing Description |

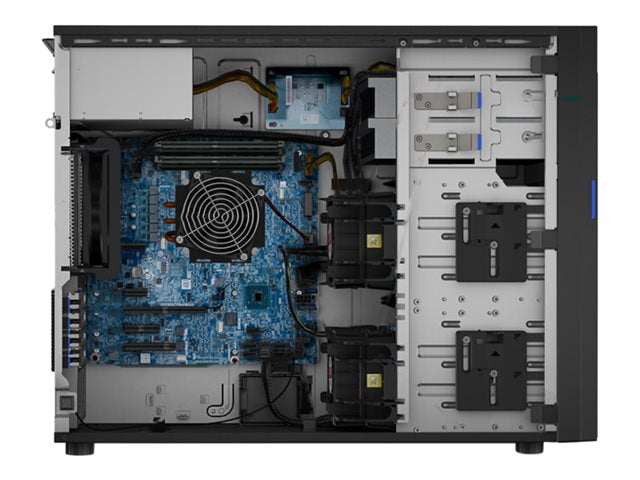

The Lenovo ThinkSystem ST250 is a fully-featured, single-socket, easily-managed rackable tower server for the small-to-medium-sized business (SMB) or remote office/ branch office (ROBO) environment.
The ST250 harnesses enterprise-level server power with the next-generation Intel Xeon processors in tandem with a wide range of storage options. From web serving, system management, and near-side data backup, the ST250 supports several workloads. |
| Product Features |
-
Robust scalability
Designed for businesses seeking to enhance their IT infrastructure, the Lenovo ThinkSystem ST250 offers server scalability powered by an Intel Xeon processor. This setup ensures that your server can handle growing workloads with efficiency.
-
High-speed connectivity
Equipped with Broadcom BCM5720 Ethernet controllers, the system supports Ethernet, Fast Ethernet, and Gigabit Ethernet, ensuring high-speed connectivity and data transfer rates for your business operations. Features like PXE support and teaming support further enhance network management and performance.
-
Advanced security
The Lenovo ThinkSystem ST250 is designed with security in mind, featuring a Kensington security slot and a padlock loop. These features provide physical security options to help protect against theft and unauthorized access, ensuring your data remains safe.
-
Efficient power management
With an 80 PLUS Platinum certification, the power device within the Lenovo ThinkSystem ST250 operates at a high level of energy efficiency. This not only reduces operational costs but also supports a more sustainable IT infrastructure.
-
Expandable storage and connectivity
This server offers a range of expansion options with multiple PCIe slots and M.2 card support, alongside a variety of USB 3.1 Gen 1 and Gen 2, VGA, and serial ports. Such versatility allows for significant flexibility in storage and peripheral connectivity, catering to diverse business needs.
|
| General |
| Type |
Server |
| Product Form Factor |
Tower - 4U |
| Built-in Devices |
Led panel |
| Embedded Security |
Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Server Scalability |
1-way |
| Front Accessible Bays Qty |
2 |
| Hot-Swap Bays Qty |
8 |
| Localisation |
Region: EMEA |
| Processor / Chipset |
| CPU |
Intel Xeon E-2224 |
| Clock Speed |
3.4 GHz |
| Max Turbo Speed |
4.6 GHz |
| Number of Cores |
Quad-Core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| Processor Main Features |
Intel Virtualization Technology, Intel Turbo Boost Technology |
| Chipset Type |
Intel C246 |
| Cache Memory |
| Installed Size |
8 MB |
| Cache Per Processor |
8 MB |
| RAM |
| Installed Size |
16 GB (installed) / 128 GB (max) |
| Technology |
DDR4 SDRAM - ECC |
| Effective Memory Speed |
2666 MHz |
| Rated Memory Speed |
2666 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
4 (Total) / 3 (empty) |
| Features |
Unbuffered |
| Configuration Features |
1 x 16 GB |
| RAM Supported |
128 GB - Intel Xeon E processors - unbuffered - ECC
64 GB unbuffered - ECC |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID |
| Controller Interface Type |
SATA 6Gb/s |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| Optical Storage |
| Type |
DVD-Writer - SATA |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Matrox G200 |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Ethernet Controller |
Broadcom BCM5720 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol |
SNMP 3, CIM, IPMI 2.0 |
| Remote Management Controller |
XClarity Controller (XCC) Standard |
| Features |
PXE support, Teaming support |
| Expansion / Connectivity |
| Bays |
2 (total) / 1 (free) x external 5.25" x 1/2H
8 (total) / 8 (free) x hot-swap 2.5" |
| Slots |
1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x4 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height (x4 mode)
1 (total) / 1 (free) x M.2 Card |
| Interfaces |
3 x USB 3.1 Gen 1 (1 front, 2 rear)
1 x USB 2.0 (1 in front)
2 x USB 3.1 Gen 2
1 x serial
1 x VGA
2 x LAN (Gigabit Ethernet) - RJ-45
1 x management - RJ-45
1 x USB 3.0 (1 internal) |
| Miscellaneous |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
TUV GS, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, GB 17625.1, GB 9254 Class A, CECP, GB 4943.1, BIS, NOM-019, EK1-ITB2000, CNS 13438 Class A, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, TR CU 020/2011, TR CU 004/2011, UL 62368-1, ASHRAE Class A2 |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Provided |
550 Watt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Operating System / Software |
| OS Provided |
No operating system |
| Sustainability Information |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
2.1 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight |
| Width |
17.5 cm |
| Depth |
56.57 cm |
| Height |
43 cm |
| Weight |
23.56 kg |
