| Marketing Description |

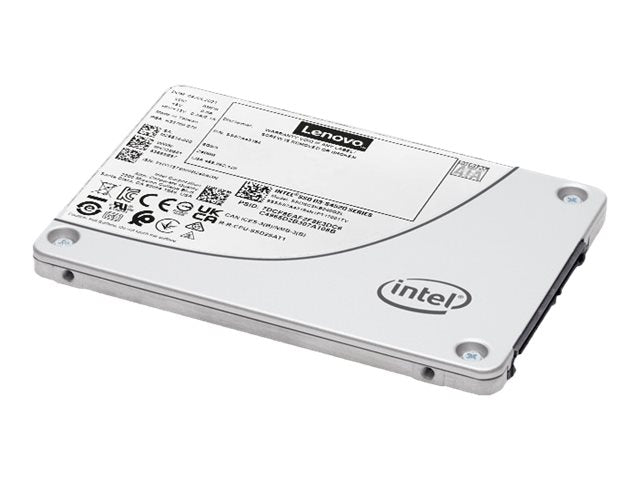

The ThinkSystem S4520 Read Intensive SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with outstanding performance.
Compared with the S4510 series, these Read Intensive (Entry) drives offer improved endurance. The S4520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics. |
| Product Features |
-
Enhanced durability
Built to withstand extreme conditions, this solid state drive features shock acceleration operating at 1000 g and non-operating at 1000 g, alongside vibration tolerance for both operating and non-operating states. Its robust design ensures data integrity and drive longevity, making it a reliable choice for demanding environments.
-
High performance
With 4KB random read IOPS of 90,000 and write IOPS of 43,000, coupled with an internal data rate of 550 MBps (read) and 510 MBps (write), this drive delivers swift and efficient performance. The integration of 3D NAND technology and enhanced power loss protection further optimizes speed and data security.
-
Advanced security
Equipped with 256-bit AES hardware encryption, the drive offers reliable data protection. This feature, combined with end-to-end data protection and enhanced power loss protection, provides a secure environment for your data against unauthorized access and data loss incidents.
|
| General |
| Device Type |
Solid state drive |
| Capacity |
960 GB |
| Hardware Encryption |
Yes |
| Encryption Algorithm |
256-bit AES |
| NAND Flash Memory Type |
3D triple-level cell (TLC) |
| Form Factor |
3.5" |
| Interface |
SATA 6Gb/s |
| Features |
Thermal throttling, End-to-end data protection, 3D NAND Technology, Standard Endurance Technology (SET), Enhanced Power Loss Protection, S.M.A.R.T. |
| Width |
70 mm |
| Depth |
100 mm |
| Height |
7 mm |
| Weight |
70 g |
| Performance |
| Drive Writes Per Day (DWPD) |
3 |
| SSD Endurance |
5.3 PB |
| Drive Class |
Read Intensive |
| Drive Transfer Rate |
600 MBps (external) |
| Internal Data Rate |
550 MBps (read) / 510 MBps (write) |
| 4KB Random Read |
90000 IOPS |
| 4KB Random Write |
43000 IOPS |
| Average Latency |
36 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
3.5" |
| Power |
| Power Consumption |
3 Watt (typical) |
| Miscellaneous |
| Compliant Standards |
VCCI, ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, BSMI CNS 13438, RoHS 2011/65/EU, EN55022:2006, AS/NZS CISPR22:2009+A1:2010, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, FCC CFR47 Part 15 B Class B, EN 55032:2012, KCC Article 11.1, AS/NZS CISPR 32:2015, EN 55035:2017, Morocco Decree # 2574-14 (EMC), China EFUP, UL/CSA 62368-1 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (operating) |
1000 g @ 0.5 ms |
| Shock Tolerance (non-operating) |
1000 g @ 0.5 ms |
| Vibration Tolerance (operating) |
2.17 g @ 5-700 Hz |
| Vibration Tolerance (non-operating) |
3.13 g @ 5-800 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkSystem ST50 7Y48 (3.5"), 7Y49 (3.5") |
