| Marketing Description |

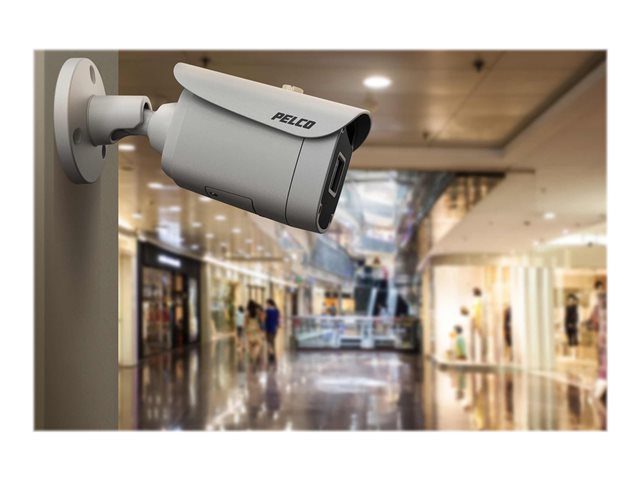

Sarix Value IBV Series cameras are ideal for overt surveillance that can help deter criminal activity. The Sarix Value Series features excellent image quality with great low light performance, color fidelity and true wide dynamic range (WDR) for increased visibility in difficult lighting situations. And with built-in IR illumination, the camera can provide coverage even in total darkness. The vari-focal lensing gives you the flexibility to set a range of fields of view. With IP66 rated ingress protection, the Sarix Value IBV Series can be deployed in a variety of indoor and environmental settings.
Sarix Value Series cameras provide options for three simultaneous video streams. The three streams can be compressed with efficient H.265, H.264 High or Main profiles, or MJPEG encoding. The streams can be configured to a variety of resolutions and frame rates. Pelco Smart Compression is available on both H.264 and H.265 to minimize storage and bandwidth utilization. |
| Product Features |
-
Standard web interface
Pelco cameras use a standard Web browser interface for easy remote setup and administration. Controls are optimized for convenient one-step camera configuration for features including color, exposure, flicker control, wide dynamic range, and streaming.
-
Basic analytics
Sarix Value Series cameras feature basic video analytics including Simple Motion Detection and Camera Tampering. Simple Motion Detection algorithms allow the camera to record or send an alarm when there is motion detected in a selected zone or within the entire scene. A Camera Tampering alarm is triggered if the lens is obstructed or when the camera is repositioned.
-
Smart Compression Technology
Smart Compression Technology lowers bandwidth and storage requirements by up to 70%. It allows the user to make informed optimization between storage savings and image quality. Pelco's Smart Compression Technology dynamically analyzes motion occurring within live video in realtime, to intelligently compress the information you don't need, while retaining details with clear quality in the areas that are important in the scene. By enabling Dynamic GOP, an added feature of Smart Compression, the number of I-frames are automatically reduced in scenes with low motion.
|
| General |
| Device Type |
Network surveillance camera |
| Form Factor |
Bullet |
| Connectivity Technology |
Wired |
| Width |
8.5 cm |
| Depth |
21.45 cm |
| Height |
8.5 cm |
| Weight |
738 g |
| Camera |
| Type |
Colour - Day&Night - fixed - dustproof / waterproof / vandal-proof |
| Digital Video Format |
MJPEG, H.264, H.265 |
| Max Digital Video Resolution |
2560 x 1920 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Digital Zoom |
48 |
| Exposure Range |
1/5 sec - 1/32000 sec |
| Minimum Illumination |
0.2 lux - colour |
| Infrared LEDs |
Yes |
| Infrared Distance |
30 m |
| Digital Video Capture Resolution |
2560 x 1920 |
| Frame Rate (max) |
20 frames per second |
| Features |
Backlight Compensation (BLC), date/time stamp, sharpness control, digital image rotation, white balance, saturation control, brightness control, contrast control, image flip, image mirror, infrared cut filter, Privacy Mask Function, Highlight Compensation (HLC), NAS-Ready, tamper-detection, password protection, triple video stream, adaptive IR auto adjustment, Defog, 3D Digital Noise Reduction Technology, True Wide Dynamic Range (TWDR), ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, signed firmware, ONVIF (Profile T) support, Pelco Smart Compression Technology, up to 10 channels simultaneous live view, gamma correction, Gain Control |
| Image Sensor |
| Type |
5 MP PS CMOS 1/2.7" |
| Lens Construction |
| Type |
Motorized zoom |
| Optical Zoom |
2.8 x |
| Focal Length |
3.4 mm - 9.4 mm |
| Lens Iris |
Fixed iris |
| Focus Adjustment |
Motorised |
| Horizontal Field of View (degree) |
30 - 88 |
| Vertical Field of View (degree) |
23 - 65 |
| Diagonal Field of View (degree) |
38 - 115 |
| Panning |
| Range (degree) |
180 |
| Tilting |
| Range (degree) |
90 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, SSL, QOS, CoS, DSCP, IGMPv3, CIFS |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Compliant Standards |
FCC Class B certified, UL, cUL, NOM, ICES-003 Class B, AES-256, RSA-2048, SHA-256, X.509, IP66, KC, VCCI Class B, EAC, RCM, IEC 60950-22, BIS, EN 60950-22, UL 60950-22, TLS v1.2, EN 62368-1, IEC 62368-1, IEC/EN 62471, IEEE 802.3af, UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, IEC 62676-5, IEC/EN 62262 IK10 |
| Colour |
RAL 9003 |
| Power |
| Power Requirements |
PoE Class 3 |
| Power Device |
12.95 Watt |
| Software / System Requirements |
| OS Required |
Microsoft Windows 7 / 8 / 10 |
| Environmental Parameters |
| Min Operating Temperature |
-10 °C |
| Max Operating Temperature |
60 °C |
| Relative Humidity (operating) |
0 - 90% |
