| Marketing Description |

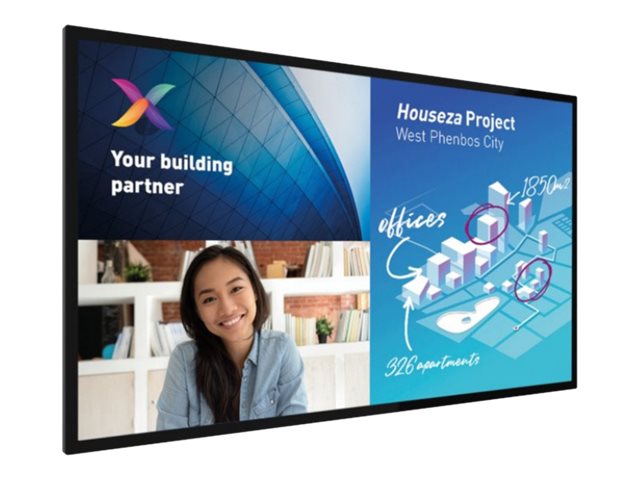

| Maximize engagement and inspire collaboration with an interactive Philips C-Line display. This Android powered display is made to withstand heavy daily usage and features up to 10 touch points, edge-to-edge glass and flush design. |
| Product Features |
-
Wireless screen sharing
Display four feeds on the one screen. Wireless screen sharing allows you to connect up to 32 devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices.
-
HID Capacitive Touch
Capacitive Touch gives you the cutting edge appearance of edge to edge glass with a bezel width of just 1.5 mm! Create a memorable interactive experience with up to 10 touch points at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings.
-
Powered by Android
Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android OS ensures the software is kept secure and remains to the latest specification for longer.
-
OPS slot
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
-
CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
-
Whiteboard mode built-in
Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be captured for easy printing or file sharing.
|
| General |
| Product Type |
LED-backlit LCD flat panel display |
| Energy Label QR Code URL |
Https://eprel.ec.europa.eu/qr/401997 |
| Energy Class |
Class G |
| Power Consumption (On mode) |
128 W |
| Power Consumption SDR (On mode) |
128 kWh/1000h |
| Diagonal Class |
55" |
| Diagonal Size |
54.5" |
| Commercial Use |
Yes - interactive digital signage |
| Combined With |
Touchscreen (multi touch) |
| Series |
C-Line |
| Operating System |
Android OS 9.0 |
| TV Tuner |
No tuner |
| TV Tuner Presence |
No |
| Video Interface |
HDMI |
| HDMI Ports Qty |
4 ports |
| PC Interface |
DVI, DisplayPort, USB-C |
| Modes |
Portrait mode, landscape mode, whiteboard mode |
| Picture Enhancements |
Dynamic contrast enhancement, Pixel Shift, Low Bright, 3D Combfilter |
| Design |
Flush Design |
| Dimensions |
Without stand |
| Width |
126.44 cm |
| Depth |
8.69 cm |
| Height |
73.52 cm |
| Display |
| Resolution |
3840 x 2160 |
| Display Format |
4K UHD (2160p) |
| Image Aspect Ratio |
16:9 |
| LCD Backlight Technology |
LED backlight |
| Coating |
Anti-glare |
| Image Contrast Ratio |
1000:1 |
| Dynamic Contrast Ratio |
500000:1 |
| Brightness |
350 cd/m² |
| Viewing Angle |
178 degrees |
| Viewing Angle (Vertical) |
178 degrees |
| Pull-Down Compensation |
3:2, 2:2 |
| Touchpoints Qty |
10 |
| Response Time |
8 ms |
| Display Menu Language |
Danish, Chinese (traditional), Chinese (simplified), English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Turkish, Arabic, Japanese |
| Backlight Life |
50,000 hour(s) |
| Commercial Features |
CMND management, Crestron Connected Certified, Open Pluggable Standard (OPS) support |
| Features |
3D MA deinterlacing, Smart Insert, capacitive touch technology, edge-to-edge glass, OPS Slot |
| Stands & Mounts |
| Stand |
Optional |
| Flat Panel Mount Interface |
400 x 400 mm |
| VESA Compatibility |
Yes |
| Video Features |
| Input Video Formats |
1080/60i, 480/60p, 720/60p, 1080/50i, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i, 3840/25p, 3840/24p, 3840/30p, 3840/60p, 4096/24p |
| Supported Computer Resolutions |
1366 x 768, 1440 x 1050, 1920 x 1200 (WUXGA), 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1280 x 768 (WXGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1152 x 864, 1280 x 960, 1280 x 720, 640 x 350, 720 x 400, 848 x 480, 1152 x 900, 1360 x 768, 1680 x 1050 (WSXGA+), 1920 x 1080, 1440 x 900, 1280 x 800, 1400 x 1050, 1600 x 900, 960 x 720 |
| Media Player |
| Supported Video Formats |
MPEG-4, WMV, ASF, AVI, MKV, VOB, FLV, TS, WebM, MPG, MPEG |
| Supported Audio Formats |
MP3, WMA, AAC, M4A |
| Supported Pictures Formats |
BMP, JPG, JPEG, PDF |
| Supported Memory Cards |
SD Memory Card |
| USB Port |
Yes |
| USB Ports Qty |
2 |
| Configuration |
MTK5680 - 4 GB - 32GB eMMC |
| Remote Control |
| Type |
Remote control |
| Battery Form Factor |
AAA type |
| Battery Included |
Yes |
| Audio System |
| Speaker System |
2 speakers |
| Output Power / Total |
40 Watt |
| Speakers |
2 x speaker - 20 Watt |
| Network & Internet Multimedia |
| Connectivity |
Wi-Fi, LAN |
| Wi-Fi Protocol |
802.11b, 802.11g, 802.11n, 802.11ac |
| Supported Consumer Electronics Control (CEC) |
One Wire |
| Connections |
| Connector Type |
DisplayPort input
4 x HDMI input
DVI-D input
USB
DisplayPort output
HDMI output
Audio line-in
Audio line-out
2 x USB 2.0
Remote control
Serial input
Serial output
Infrared input
Infrared output |
| Miscellaneous |
| Included Accessories |
2 styluses, SD card cover slot, 2 x Wi-Fi aerials, screws |
| Cables Included |
RS-232 cable
IR sensor cable - 1.8 m |
| Compliant Standards |
Plug and Play, FCC Class B certified, UL, VCCI, C-Tick, BSMI, GOST, cUL, CB, CCC, RoHS, PSE Mark, J-MOSS |
| Sustainability Information |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
7.0 |
| Power |
| Power Device |
Power supply |
| Input Voltage |
AC 120/230 V (50/60 Hz) |
| Power Consumption Stand by |
0.5 Watt |
| Features |
Smart power |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% |
