| Marketing Description |

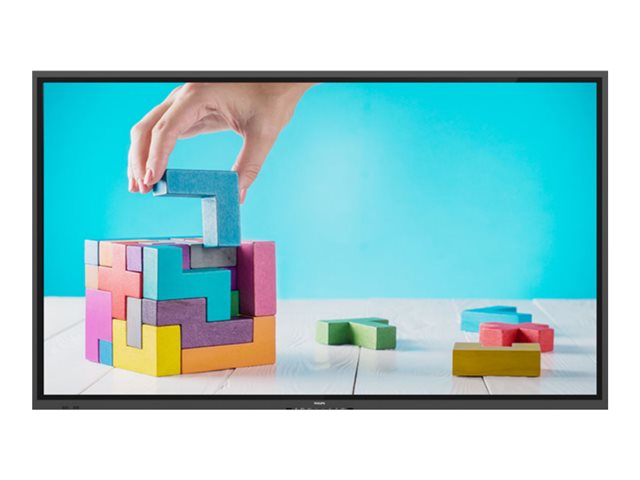

| The Philips E-Line touch display maximizes engagement and inspires collaboration with up to 20 touchpoints. Featuring a toughened anti-glare glass, it's made to withstand heavy daily usage in the classroom. |
| Product Features |
-
Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
-
OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
-
Multi-touch technology capable of 20 touchpoints
Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings. The touch panel is HID compliant, providing true Plug-and-Play operation.
-
Whiteboard mode built-in
Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be captured for easy printing or file sharing.
|
| General |
| Product Type |
LED-backlit LCD flat panel display |
| Energy Class |
Class G |
| Power Consumption (Max) |
376 Watt |
| Power Consumption Operational |
155 Watt |
| Diagonal Class |
65" |
| Commercial Use |
Yes - interactive digital signage |
| Combined With |
Touchscreen (multi touch) |
| Series |
E-Line |
| Platform |
Android |
| Operating System |
Android OS 8.0 |
| TV Tuner |
No tuner |
| TV Tuner Presence |
No |
| Video Interface |
HDMI |
| HDMI Ports Qty |
3 ports |
| PC Interface |
DVI, VGA (HD-15) |
| Modes |
Whiteboard mode |
| Picture Enhancements |
Dynamic contrast enhancement, Pixel Shift, Low Bright, 3D Combfilter, motion compensation deinterlacing, progressive scan |
| Dimensions |
Without stand |
| Width |
149.43 cm |
| Depth |
9.95 cm |
| Height |
88.32 cm |
| Weight |
43.15 kg |
| Display |
| LCD Display Technology |
ADS |
| Pixel Pitch |
0.372 mm |
| Colour Support |
1070000000 colours |
| Resolution |
3840 x 2160 |
| Display Format |
4K UHD (2160p) |
| Image Aspect Ratio |
16:9 |
| LCD Backlight Technology |
LED backlight |
| Coating |
Anti-glare, 7 MOHS hardness |
| Image Contrast Ratio |
1200:1 |
| Brightness |
350 cd/m² |
| Viewing Angle |
178 degrees |
| Viewing Angle (Vertical) |
178 degrees |
| Pull-Down Compensation |
3:2, 2:2 |
| Touchpoints Qty |
20 |
| Response Time |
10 ms |
| Display Menu Language |
Multilingual |
| Backlight Life |
50,000 hour(s) |
| Commercial Features |
CMND management |
| Operation Hours / Days |
18 / 7 |
| Features |
Infrared touch technology, 3D MA deinterlacing, remote lock, OPS Slot |
| Stands & Mounts |
| Flat Panel Mount Interface |
400 x 400 mm |
| VESA Compatibility |
Yes |
| Video Features |
| Input Video Formats |
1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i, 2160/30p, 2160/60p |
| Supported Computer Resolutions |
1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1280 x 1024 (SXGA), 1280 x 720, 720 x 400, 1152 x 870, 1680 x 1050 (WSXGA+), 1920 x 1080, 1440 x 900, 1600 x 900, 3840 x 2160 |
| Media Player |
| Supported Video Formats |
MPEG-1, MPEG-2, MPEG-4, H.264, H.263, H.265 |
| Supported Audio Formats |
AAC, HE-AAC |
| Supported Pictures Formats |
BMP, PNG, JPEG |
| Supported Memory Cards |
microSD |
| USB Port |
Yes |
| Configuration |
2 x ARM Cortex-A73 Quad-Core + 2 x ARM Cortex-A53 (1.5 GHz) - 3 GB DDR3 - 16GB eMMC - Mali-G51 |
| Remote Control |
| Type |
Remote control |
| Battery Form Factor |
AAA type |
| Battery Included |
Yes |
| Audio System |
| Speaker System |
2 speakers |
| Output Power / Total |
30 Watt |
| Speakers |
2 x speaker - 15 Watt |
| Network & Internet Multimedia |
| Connectivity |
LAN |
| Connections |
| Connector Type |
DVI-D input
VGA input
3 x HDMI
Audio input / output
Infrared input/output
RS-232C input/output
Remote control
4 x USB 2.0
3 x USB
USB |
| Miscellaneous |
| Included Accessories |
Cleaning cloth, 2 touch pens, batteries, 3 cable clips |
| Cables Included |
HDMI cable - 3 m
IR sensor cable - 1.8 m
DVI-D cable
USB-A to USB-B cable - 3 m
RS-232 daisy chain cable
RS-232 cable |
| Compliant Standards |
Plug and Play, CB, FCC, RoHS, ETL, EMF, EAC, Class A |
| Power |
| Power Device |
Power supply |
| Input Voltage |
AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by |
0.5 Watt |
| Features |
Smart power |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Dimensions & Weight (Shipping) |
| Weight (Shipping) |
52.7 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% RH (non-condensing) |
