| Marketing Description |

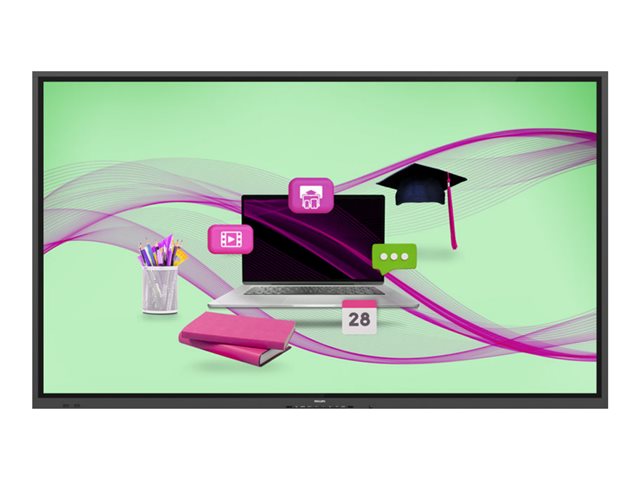

| Inspire collaboration. Maximize engagement. This top-spec Philips E-Line touch display is powered by Android and features enhanced educational software and programs compatibility, 20 touchpoints, and a toughened anti-glare glass. |
| Product Features |
-
Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
-
OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
-
Multi-touch technology capable of 20 touchpoints
Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings. The touch panel is HID compliant, providing true Plug-and-Play operation.
-
Whiteboard mode built-in
Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be captured for easy printing or file sharing.
-
Wireless screen sharing and advanced collaboration
Display four feeds on the one screen. Wireless screen sharing allows you to connect multiple devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices.
|
| General |
| Product Type |
LED-backlit LCD flat panel display |
| Energy Class |
Class G |
| Diagonal Class |
65" |
| Diagonal Size |
64.5" |
| Commercial Use |
Yes - interactive digital signage |
| Combined With |
Touchscreen (multi touch) |
| Series |
E-Line |
| Platform |
Android |
| Operating System |
Android OS 11 |
| TV Tuner |
No tuner |
| TV Tuner Presence |
No |
| Video Interface |
HDMI |
| HDMI Ports Qty |
3 ports |
| PC Interface |
DVI |
| Modes |
Whiteboard mode |
| Picture Enhancements |
Dynamic contrast enhancement, Pixel Shift, Low Bright, 3D Combfilter, motion compensation deinterlacing, progressive scan |
| Dimensions |
Without stand |
| Width |
149.43 cm |
| Depth |
9.95 cm |
| Height |
88.32 cm |
| Weight |
44.26 kg |
| Display |
| LCD Display Technology |
IPS |
| Pixel Pitch |
0.372 mm |
| Colour Support |
1070000000 colours |
| Resolution |
3840 x 2160 |
| Display Format |
4K UHD (2160p) |
| Image Aspect Ratio |
16:9 |
| LCD Backlight Technology |
LED backlight |
| Coating |
Anti-glare, 7 MOHS hardness |
| Image Contrast Ratio |
1200:1 |
| Dynamic Contrast Ratio |
500000:1 |
| Brightness |
350 cd/m² |
| Viewing Angle |
178 degrees |
| Viewing Angle (Vertical) |
178 degrees |
| Pull-Down Compensation |
3:2, 2:2 |
| Touchpoints Qty |
20 |
| Response Time |
8 ms |
| Display Menu Language |
Multilingual |
| Backlight Life |
50,000 hour(s) |
| Commercial Features |
CMND management, remote lock, Open Pluggable Standard (OPS) support, keyboard lock |
| Operation Hours / Days |
18 / 7 |
| Features |
3D MA deinterlacing |
| Stands & Mounts |
| Flat Panel Mount Interface |
400 x 400 mm |
| VESA Compatibility |
Yes |
| Video Features |
| Input Video Formats |
1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 480/60i, 2160/50p, 2160/60p |
| Supported Computer Resolutions |
1366 x 768, 1920 x 1200 (WUXGA), 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1280 x 768 (WXGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1152 x 864, 1280 x 960, 1280 x 720, 640 x 350, 720 x 400, 848 x 480, 1152 x 900, 1920 x 1080, 1440 x 900, 1600 x 900, 960 x 720 |
| Media Player |
| Supported Video Formats |
MPEG-1, MPEG-2, MPEG-4, H.264, H.263, H.265, VP8 |
| Supported Audio Formats |
AAC, HE-AAC |
| Supported Pictures Formats |
BMP, PNG, JPEG |
| Supported Memory Cards |
microSD |
| USB Port |
Yes |
| Configuration |
MTK 9970A - 4 GB - 32GB eMMC |
| Remote Control |
| Type |
Remote control |
| Battery Form Factor |
AAA type |
| Battery Included |
Yes |
| Audio System |
| Speaker System |
2 speakers |
| Output Power / Total |
30 Watt |
| Speakers |
2 x speaker - 15 Watt |
| Network & Internet Multimedia |
| Connectivity |
Wi-Fi, LAN |
| Connections |
| Connector Type |
3 x HDMI input
3 x USB 2.0
USB-C with 45W Power Delivery
DVI-D input
3 x USB 3.0
Audio line-in
Audio line-out
HDMI output
Infrared output
Infrared input
RS-232C output
RS-232C input
Remote control |
| Miscellaneous |
| Included Accessories |
Cleaning cloth, 2 touch pens, batteries, USB dust cover, 3 cable clips |
| Cables Included |
HDMI cable - 3 m
RS-232 cable
USB-A to USB-B cable - 3 m
IR sensor cable - 1.8 m
RS-232 daisy chain cable
DVI cable - 1.8 m |
| Compliant Standards |
Plug and Play, CB, FCC, RoHS, ETL, EMF, EAC, Class A |
| Power |
| Power Device |
Power supply |
| Input Voltage |
AC 100-240 V (50 - 60 Hz) |
| Power Consumption Stand by |
0.5 Watt |
| Features |
Smart power |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Dimensions & Weight (Shipping) |
| Weight (Shipping) |
53.8 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% RH (non-condensing) |
