| Marketing Description |
| The QGD-3014-16PT Desktop Guardian PoE managed switch has sixteen 30-watt Gigabit PoE ports, two Gigabit SFP/RJ45 combo ports and two 2.5GbE host management ports. With a dual-processor design the QGD-3014-16PT meets requirements for high-speed transmission, storage space, and virtual machine performance in surveillance applications. Supporting VMs and QTS for versatile applications such as QVR Pro, HBS 3 and QuWAN, the QGD-3014-16PT combines surveillance deployment, video storage computing, remote backup and WAN optimization to create intelligent surveillance infrastructure and remote backup solutions. |
| Product Features |
-
Next-generation intelligent IP surveillance and remote backup solution
Modern enterprises need to deploy surveillance systems in various sites with multiple IP cameras, switches, NAS/NVR, and then transmit local data to central servers. This can often be a complicated, inefficient, and expensive process. The QGD-3014-16PT integrates PoE power capabilities, surveillance server, and data backup management, thus simplifying the software and hardware requirements and increasing the transmission and backup efficiency of surveillance videos.
-
Complete surveillance infrastructure deployment for smart retail
Combining QVR Pro surveillance software, HBS remote backup, and QuWAN SD-WAN solutions, the QGD-3014-16PT is a total package for surveillance deployment. Businesses can centrally manage video capture, playback, and processing to benefit from a cost-optimized smart surveillance solution.
-
Minimalist design with 4K 60 Hz HDMI output for fashionable retail space
The QGD-3014-16PT has a modern design and quiet cooling system to balance system performance, noise, and noise. This stylish appearance allows the QGD-3014-16PT to easily fit in with modern retail spaces and showrooms. The QGD-3014-16PT combines the functions of a PoE switch, NVR, NAS and router, and provides HDMI 2.0 output for direct playback of live feeds up to 4K (3840x2160) 60 Hz resolution. By consolidating the functions of multiple devices in a near-silent and stylish form factor, the QGD-3014-16PT satisfies the requirements for smart retail surveillance environments.
-
Intelligent PoE management for high-power IP cameras
Compliant with the IEEE 802.3at PoE+ standards, the QGD-3014-16PT has sixteen ports with 30-watt Gigabit PoE capabilities. The QGD-3014-16PT can supply a total power budget of 140 watts to meet the demands of bullet cameras, fisheye cameras, 4K PTZ cameras and Speed Dome cameras compliant with the ONVIF standard; or high-power devices such as 4K PTZ camera, IP phones, LED lights, and digital signage. The QGD-3014-16PT supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling/disabling. You can obtain real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
-
A total smart IP surveillance system with QVR Pro
QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the QGD-3014-16PT and leverage the advantages of scalable storage including four drive bays space and flexible storage expansion. With camera management, storage space allocation, playback, failover, and remote live viewing, QVR Pro helps you deploy a comprehensive smart IP surveillance system.
-
Deploy a multi-site VPN with SD-WAN solution
QuWAN SD-WAN provides full mesh IPsec VPN topology between the QGD Switches and local/remote QNAP devices to fulfill enterprise surveillance video, system data transmission, and filing needs. QuWAN optimizes the network service by using bandwidth aggregation, QoS, and failover, providing a stable surveillance working environment. QuWAN also adopts software defined networking to achieve optimum surveillance network connectivity and supports cloud-centric management over multiple NAS for deploying a resilient IP surveillance infrastructure.
-
Flexible storage expansion
Connect a TR RAID, TL USB JBOD, or TL SATA JBOD to expand the storage capacity of the QGD-3014-16PT to accommodate data and business growth.
|
| General |
| Device Type |
Switch - 16 ports - smart |
| Enclosure Type |
Desktop |
| Subtype |
Gigabit Ethernet |
| Ports |
16 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
140 W |
| Performance |
Non-blocking switching throughput: 16 Gbps
Switching capacity: 32 Gbps |
| MAC Address Table Size |
8K entries |
| Remote Management Protocol |
HTTP, SSH, HTTPS, CLI, Telnet, SNMP 2, SNMP 3 |
| Encryption Algorithm |
AES-NI, 256-bit AES, FIPS 140-2 |
| Authentication Method |
Active Directory |
| Features |
VLAN support, LACP, QoS, IGMP snooping, WOL, Energy Efficient Ethernet, full duplex capability, flow control, reset button, Jumbo Frames support, dual firmware images, auto-negotiation, schedule PoE, bandwidth control, rate limit, port trunking, loop prevention, E-mail alert, SMS alert, push notification, audible alarm notification, LLDP support, SNTP support, DHCP client, port mirroring, IPv4 and IPv6 dual stack, IPv4 support, IPv6 support, Link Aggregation, failover protection, load balancing, DHCP server, Wi-Fi USB dongle support, NAT support, STP support, static routing, DynDNS, web server, iSCSI LUN clone/snapshot, LDAP support, myQNAPcloud, Qsync, file sharing, event log, Syslog support, FTP server, FXP support, Google Drive support, Dropbox support, Microsoft OneDrive support, HiDrive support, Amazon Cloud Drive support, Yandex Disk support, cloud backup, Qfiling, hybrid backup sync, Amazon Glacier suport, Amazon S3 support, Microsoft Azure support, OpenStack Swift-compatible, WebDAV server support, Alibaba Cloud OSS support, Backblaze B2 support, hubiC support, RTRR client, RTRR server, Rsync compatible, Apple Time Machine compatible, Qsirch, surveillance station, VPN Server, OpenVPN client, OpenVPN server, VPN client, Q'center (NAS CMS), Qfinder Pro, Qcontactz, anti-malware protection |
| Compliant Standards |
IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, UPnP |
| Processor |
1 x Intel Celeron J4125: 2 GHz |
| RAM |
8 GB (installed) / 8 GB (max) - SO-DIMM 260-pin - DDR4 SDRAM |
| Flash Memory |
4 GB |
| Built-in Devices |
Status LCD, 4 x 3.5"/2.5" SATA 6Gb/s hot swap drive bays, RAID controller, led panel |

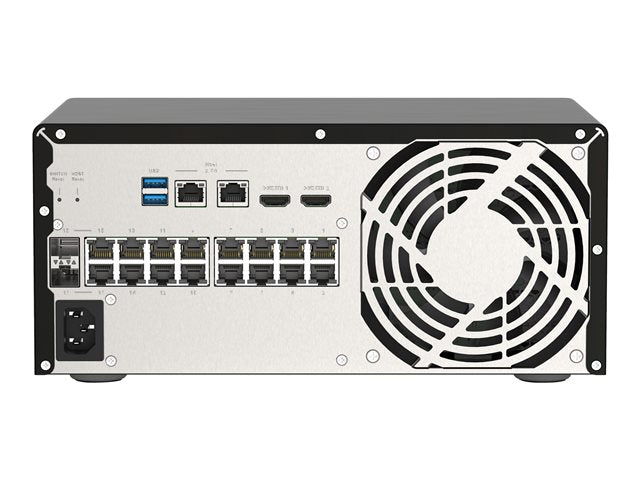

| Expansion / Connectivity |
| Interfaces |
16 x 1000Base-T RJ-45 PoE+ - 30 W
2 x Gigabit LAN RJ-45/SFP
3 x USB 3.2 Gen 1 Type A
2 x 2.5GBase-T RJ-45 management
2 x HDMI output
1 x audio input mini-jack
1 x audio output mini-jack |
| Expansion Slots |
2 (total) / 2 (free) x M.2 2230 |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational |
250 Watt |
| Miscellaneous |
| Included Accessories |
12 x flat head screws (for 2.5" HDD), 16 x flat head screws (for 3.5" HDD), 2 x security keys, power cord |
| Cables Included |
1 x network cable |
| Compliant Standards |
VCCI, BSMI, FCC |
| Software / System Requirements |
| Software Included |
QTS 4.4.1 |
| OS Required |
UNIX, Linux, Apple MacOS X 10.7 or later, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 2 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
