| Marketing Description |

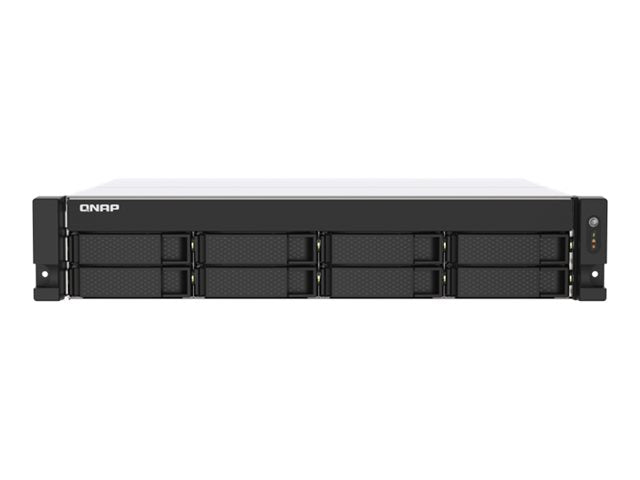

| With its powerful AMD Ryzen V1000 series V1500B Quad-core processor, the TS-873AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-873AU-RP includes two 2.5GbE ports and a PCIe Gen 3 slot, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-873AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AU-RP the preeminent choice to tackle resource-demanding applications and tasks. The TS-873AU-RP supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements. |
| General |
| Device Type |
NAS server |
| Host Connectivity |
2.5 Gigabit Ethernet |
| Enclosure Type |
Rack-mountable - 2U |
| Total Storage Capacity |
0 GB |
| Installed Devices / Modules Qty |
0 (installed) / 8 (max) |
| Width |
48.2 cm |
| Depth |
29.74 cm |
| Height |
8.9 cm |
| Weight |
8.15 kg () |
| Built-in Devices |
Led panel |
| Processor / Memory |
| Processors Installed |
1 x AMD Ryzen Embedded V1500B 2.2 GHz |
| Number of Cores |
Quad-Core |
| Max Supported Qty |
1 |
| RAM |
4 GB (installed) / 64 GB (supported) - DDR4 |
| Flash Memory Installed |
5 GB |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SATA 6Gb/s |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 50, RAID 60 |
| Networking |
| Data Link Protocol |
10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Network / Transport Protocol |
iSCSI, FTP, SFTP, IPv4, IPv6, DHCP, DDNS, HTTP, HTTPs, PPTP, L2TP, IPSec, SMB, NFS |
| Remote Management Protocol |
SFTP, TFTP, SNMP 2, SNMP 3, DHCP, HTTP, HTTPS, RADIUS, SSH, Telnet |
| Network Services Compatibility |
Network File System v3 (NFS v3), Network File System v4 (NFS v4), Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), FTP, SFTP, FTPS, File Level Security (ACLs), DHCP, DDNS, HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
| Performance |
Concurrent connections (CIFS): 2000 - (with maximum memory) |
| Features |
Hardware encryption, dual firmware images, wake on LAN (WOL), Jumbo Frames support, USB One Touch Copy, EXT4 file system, SSD trim, snapshot (folder and LUN), file sharing, FTP server, FXP support, Access Control List (ACL) support, system log, event notification, Smart Fan, port trunking, VLAN support, DHCP server, anti-malware protection, black list, white list, firewall protection, Windows ODX, Qsync, hybrid backup sync, Qsirch, QuMagie, Photo album server, anti-virus protection, VPN support, LDAP support, RADIUS support, SQL Server, download client, Qfiling, Q'center (NAS CMS), QmailAgent, QuWAN, web server, backup server, file station, VJBOD Cloud, online RAID capacity expansion, online RAID level migration, reset button |
| Encryption Algorithm |
AES-NI, SSL, FIPS 140-2, 256-bit AES, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3 |
| Security DVR |
| IP Cameras Supported |
8 |
| Compression Format |
H.264, MPEG-4 |
| Expansion / Connectivity |
| Expansion Bays |
8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots |
2 (total) / 1 (free) x SO-DIMM 260-pin
2 (total) / 2 (free) x M.2 2280
1 (total) / 1 (free) x PCI Express 3.0 x8 |
| Interfaces |
2 x 2.5 Gigabit Ethernet - RJ-45
2 x USB 3.2 Gen 2 - Type A
2 x USB 3.2 Gen 2 - Type C |
| Miscellaneous |
| Cables Included |
1 x network cable |
| Features |
Dual boot, hardware encryption, wake on LAN, reset button, built-in 3 cooling fans, alarm buzzer, Online RAID Level Migration (RLM), S.M.A.R.T. support, Secure Erase, array roaming, scheduled power on/off |
| Compliant Standards |
FIPS 140-2, ISO 7779 |
| Included Accessories |
24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD) |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
1+1 |
| Voltage Required |
AC 100-240 V |
| Power Provided |
300 Watt |
| Software / System Requirements |
| Storage Operating System |
QNAP QuTS hero h5.0.0 |
| Software Included |
McAfee AntiVirus |
| OS Required |
Oracle Solaris 10 or later, IBM AIX 7, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Apple MacOS X 10.10 or later, CentOS 7.0, SuSE Linux 12 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
10.92 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% RH (non-condensing) |
