| Marketing Description |

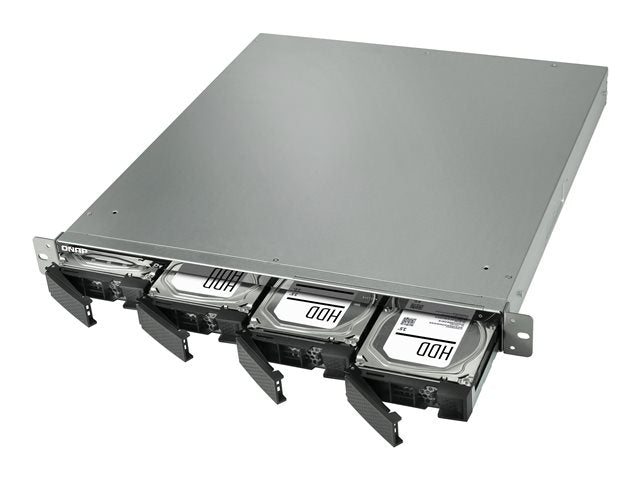

| Powered by AMD's powerful Ryzen processor, the TS-977XU-RP delivers high system performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. The TS-977XU-RP features a hybrid structure with four 3.5-inch HDD and five 2.5-inch SSD drive bays, allowing for enabling SSD caching and Qtier auto-tiering technology to greatly boost IOPS to meet the performance requirements of demanding applications. The TS-977XU-RP features two SFP+ 10 GbE ports and two Gigabit ports for high-speed connectivity, providing businesses and organizations with an ideal solution for quickly deploying a high-bandwidth, high-reliability storage environment. The TS-977XU-RP also features a redundant power supply to ensure maximum system uptime. |
| Product Features |
-
Hybrid structure for enabling SSD and tiered storage
The TS-977XU-RP features an HDD+ SSD hybrid structure (including five 2.5-inch and four 3.5-inch drive bays), allowing you to leverage the benefits of both hard drives and SSD to provide high storage capacity and high performance. Qtier Technology empowers the TS-977XU-RP with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity hard drives.
-
Dual-channel memory to delivers power-smart performance
The TS-977XU-RP supports dual-channel DDR4 memory and features four Long-DIMM slots. When using paired memory modules, the TS-977XU-RP leverages the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 64GB RAM) of the TS-977XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.
-
Extend NAS functionality with PCIe cards
The TS-977XU-RP features a PCIe slot that allows for installing a 10GbE/40GbE network card, a QM2 M.2 SSD/10GbE PCIe card, or a wireless network card to provide greater application potential.
|
| General |
| Device Type |
NAS server |
| Host Connectivity |
Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type |
Rack-mountable - 1U |
| Total Storage Capacity |
0 GB |
| Installed Devices / Modules Qty |
0 (installed) / 9 (max) |
| Width |
48.26 cm |
| Depth |
50.554 cm |
| Height |
4.33 cm |
| Weight |
8.62 kg () |
| Built-in Devices |
Led panel |
| Processor / Memory |
| Processors Installed |
1 x AMD Ryzen 5 3600 3.6 GHz |
| Number of Cores |
6-core |
| Max Supported Qty |
1 |
| Max Turbo Speed |
4.2 GHz |
| RAM |
8 GB (installed) / 64 GB (supported) - DDR4 |
| Features |
Dual channel memory architecture |
| Flash Memory Installed |
5 GB |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SATA 6Gb/s |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD |
| Networking |
| Data Link Protocol |
10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Network / Transport Protocol |
TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, SMB, DDNS, IPv4, IPv6 |
| Remote Management Protocol |
SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Network Services Compatibility |
Microsoft Active Directory (AD), File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
| Features |
NAT support, hardware encryption, trunking, LDAP support, wake on LAN (WOL), Syslog support, E-mail alert, Spanning Tree Protocol (STP) support, web server, backup server, download client, file sharing, event log, Access Control List (ACL) support, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, reset button, bandwidth control, surveillance station, online RAID capacity expansion, online RAID level migration, teaming support, DLNA Media Server, Apple Time Machine compatible, DHCP client, cloud backup, VPN Server, Apple AirPlay, Dropbox support, automated backup scheduling, Wi-Fi USB dongle support, Photo album server, Google Drive support, failover protection, built-in hardware transcoding, VPN client, push notification, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, Chromecast support, file station, hubiC support, OpenStack Swift-compatible, port trunking, IFTTT agent, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, HiDrive support, FXP support, RTRR server, RTRR client, hybrid backup sync, Qfiling, Qsirch, Qcontactz, Qfinder Pro, Q'center (NAS CMS), Rsync compatible, snapshot (folder and LUN), thin provision for LUN, OpenVPN client, Backblaze B2 support, myQNAPcloud, Qsync |
| Encryption Algorithm |
SSL, TLS, FIPS 140-2, 256-bit AES, AES-NI |
| Compliant Standards |
DLNA CERTIFIED, UPnP |
| Security DVR |
| IP Cameras Supported |
80 |
| Expansion / Connectivity |
| Expansion Bays |
4 (total) / 4 (free) x hot-swap - 3.5"
5 (total) / 5 (free) x hot-swap - 2.5" |
| Expansion Slots |
4 (total) / 2 (free) x DIMM 288-pin
1 (total) / 1 (free) x PCI Express 3.0 x16 |
| Interfaces |
2 x Ethernet 10Gb - SFP+
2 x Ethernet 1000Base-T - RJ-45
4 x USB 3.2 Gen 1 - Type A
1 x USB 3.2 Gen 2 - Type A |
| Miscellaneous |
| Cables Included |
2 x network cable |
| Features |
Audible alarm, wake on LAN, built-in 3 cooling fans, scheduled power on/off, power on after power fail, S.M.A.R.T. support, reset button, dual boot |
| Compliant Standards |
AES-256 |
| Included Accessories |
16 x flat head screws (for 3.5" HDD), 36 x flat head screws (for 2.5" HDD), 2 x power cables |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
1+1 |
| Voltage Required |
AC 120/230 V |
| Power Provided |
300 Watt |
| Software / System Requirements |
| Storage Operating System |
QNAP QTS 4.3.4 |
| OS Required |
UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016 |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Sound Emission |
43.8 dBA |
