| Marketing Description |

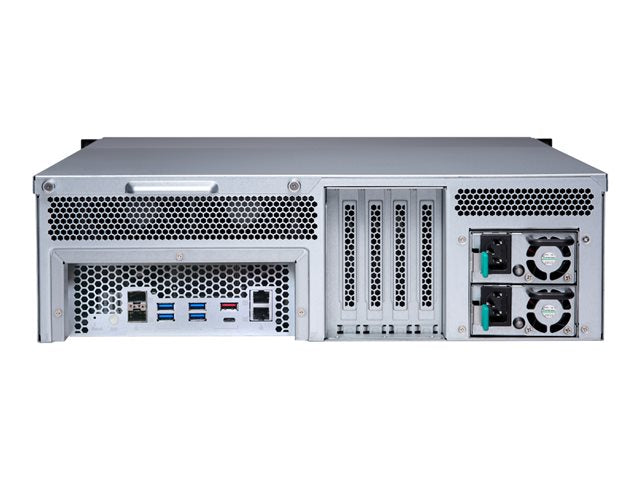

| The TS-h1677XU-RP QuTS hero NAS is powered by an AMD Ryzen 7 processor that delivers supreme system and virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the ZFS-based QuTS hero operating system, the TS-h1677XU-RP prioritizes data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, SNMP protocol, and Azure AD Domain Services. Used as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup/recovery solution, the TS-h1677XU-RP helps your business achieve the outstanding service-level agreement performance. |
| Product Features |
-
Top-class hardware engineering with high I/O expandability
The TS-h1677XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification requirements.
-
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
-
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
|
| General |
| Device Type |
NAS server |
| Host Connectivity |
Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type |
Rack-mountable - 3U |
| Total Storage Capacity |
0 GB |
| Installed Devices / Modules Qty |
0 (installed) / 16 (max) |
| Width |
48.1 cm |
| Depth |
57.35 cm |
| Height |
13 cm |
| Weight |
15.26 kg () |
| Processor / Memory |
| Processors Installed |
1 x AMD Ryzen 7 3700X 3.6 GHz |
| Number of Cores |
8-core |
| Max Supported Qty |
1 |
| Max Turbo Speed |
4.4 GHz |
| RAM |
32 GB (installed) / 128 GB (supported) - DDR4 |
| Flash Memory Installed |
5 GB |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SATA 6Gb/s |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 60, RAID 10 hot spare, RAID TP |
| Networking |
| Data Link Protocol |
1GbE, 10GbE |
| Remote Management Protocol |
SNMP 2, SNMP 3 |
| Network Services Compatibility |
Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP) |
| Features |
ALERT notification, LDAP support, VLAN support, wake on LAN (WOL), Syslog support, Access Control List (ACL) support, iTunes server, Jumbo Frames support, DLNA Media Server, Apple Time Machine compatible, VPN Server, Apple AirPlay, anti-virus protection, Link Aggregation, Google Drive support, Chromecast support, port trunking, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, Qsirch, deduplication (volume and LUN), snapshot (folder and LUN), compression (volume and LUN) |
| Encryption Algorithm |
AES-NI |
| Compliant Standards |
UPnP |
| Expansion / Connectivity |
| Expansion Bays |
16 (total) / 16 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots |
2 (total) / 2 (free) x PCI Express 3.0 x8
2 (total) / 2 (free) x PCI Express 3.0 x4
4 (total) / 2 (free) x DIMM 288-pin |
| Interfaces |
2 x Ethernet 1000Base-T - RJ-45
4 x USB 3.2 Gen 1 - Type A
2 x USB 3.2 Gen 2 - Type A
1 x USB 3.2 Gen 2 - Type C
2 x Ethernet 10Gb - SFP+ |
| Miscellaneous |
| Cables Included |
1 x 10GBase-T cable |
| Features |
Audible alarm, built-in 4 cooling fans |
| Included Accessories |
64 x flat head screws (for 3.5" HDD), 64 x flat head screws (for 2.5" HDD), 2 x power cables |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
1+1 |
| Voltage Required |
AC 120/230 V |
| Power Consumption Operational |
136.45 Watt |
| Power Provided |
500 Watt |
| Software / System Requirements |
| Storage Operating System |
QNAP QTS hero 4.5 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
21.38 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Sound Emission |
46.6 dBA |
