| Marketing Description |

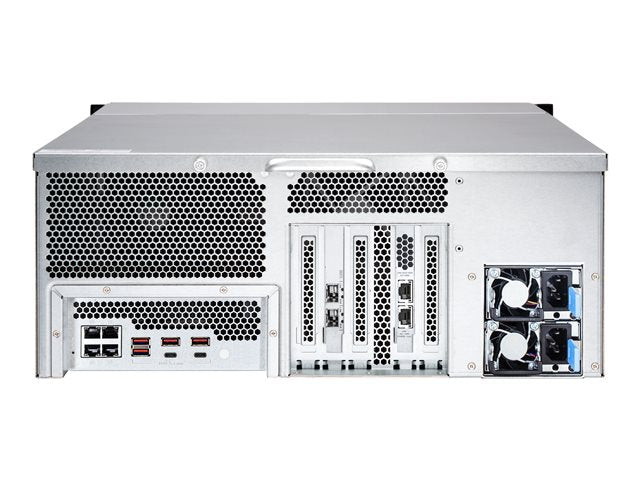

| The QuTS hero NAS TS-h2483XU-RP is powered by an Intel Xeon E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the ZFS-based QuTS hero operating system, the TS-h2483XU-RP supports near-limitless snapshots, real-time SnapSync, block-level inline data deduplication, and inline data compression. The TS-h2483XU-RP helps your business achieve reliable service-level agreement performance, whether as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications. |
| Product Features |
-
Intel Xeon E processor delivers extraordinary performance
Powered by an Intel Xeon E-2236 3.4GHz processor (Burst up to 4.8 GHz), the TS-h2483XU-RP has enormous processing power to drive virtual machine performance. Combined with 128GB DDR4 ECC memory and a redundant power supply, the TS-h2483XU-RP delivers cost-effective server-grade performance for complex multitasking and dependable reliability in enterprise IT environments.
-
Server-grade hardware: sturdy and expandable
The TS-h2483XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification requirements.
-
10GbE connectivity for high-speed data transfer
The TS-h2483XU-RP provides four Gigabit RJ45 ports and also supports 10GbE connectivity with a pre-installed dual-port 10GBASE-T network expansion card and a dual-port 10GbE SFP+ SmartNIC to satisfy bandwidth-demanding applications (including virtualization, large file sharing, and high-speed backup and recovery). QNAP also offers numerous options of managed and unmanaged 10GbE switches with 10GbE SFP+/RJ45 and Multi-Gigabit NBASE-T support, assisting organizations in implementing high-speed, secure and scalable network environments.
|
| General |
| Device Type |
NAS server |
| Host Connectivity |
Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+ |
| Enclosure Type |
Rack-mountable - 4U |
| Total Storage Capacity |
0 GB |
| Installed Devices / Modules Qty |
0 (installed) / 24 (max) |
| Width |
48.104 cm |
| Depth |
67.202 cm |
| Height |
17.615 cm |
| Weight |
20.67 kg () |
| Processor / Memory |
| Processors Installed |
1 x Intel Xeon E-2136 3.3 GHz |
| Number of Cores |
6-core |
| Max Supported Qty |
1 |
| Max Turbo Speed |
4.5 GHz |
| RAM |
128 GB (installed) / 128 GB (supported) - DDR4 |
| Features |
ECC |
| Flash Memory Installed |
5 GB |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SATA 6Gb/s |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP |
| Networking |
| Data Link Protocol |
1GbE, 10GbE, 10 GigE optical |
| Network / Transport Protocol |
iSCSI, DHCP, SMB, DDNS, IPv4, IPv6 |
| Remote Management Protocol |
SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
| Network Services Compatibility |
DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Features |
Firewall protection, VPN support, LDAP support, VLAN support, wake on LAN (WOL), anti-malware protection, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, DHCP server, built-in hardware transcoding, file station, port trunking, RAID migration, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), SQL Server, Qsync, QuMagie, QmailAgent, QuWAN |
| Encryption Algorithm |
AES-NI |
| Expansion / Connectivity |
| Expansion Bays |
24 (total) / 24 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots |
4 (total) / 0 (free) x DIMM 288-pin
3 (total) / 3 (free) x PCI Express 2.0 x4
1 (total) / 0 (free) x PCI Express 3.0 x4
1 (total) / 0 (free) x PCI Express 3.0 x8 |
| Interfaces |
2 x Ethernet 10Gb - RJ-45
2 x USB 3.2 Gen 2 - Type C
4 x USB 3.2 Gen 2 - Type A
2 x Ethernet 10Gb - SFP+
4 x Ethernet 1000Base-T - RJ-45 |
| Miscellaneous |
| Cables Included |
2 x network cable
2 x 10GBase-T cable |
| Features |
Audible alarm, built-in 3 cooling fans, Secure Erase, dual boot |
| Compliant Standards |
TLS v1.2, TLS v1.0, TLS v1.1, TLS v1.3 |
| Included Accessories |
96 x flat head screws (for 2.5" HDD), 96 x flat head screws (for 3.5" HDD), 2 x power cables |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
2 |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Redundancy Scheme |
1+1 |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Consumption Operational |
168.97 Watt |
| Power Provided |
800 Watt |
| Software / System Requirements |
| Storage Operating System |
QNAP QuTS hero h5.0.0 / QTS 5.0.0 |
| Software Included |
IronWolf Health Management |
| OS Required |
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows 7 / 8 / 10, SUSE Linux 12.2, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, Oracle Solaris 10 or later |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
28.56 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% RH (non-condensing) |
