| Marketing Description |

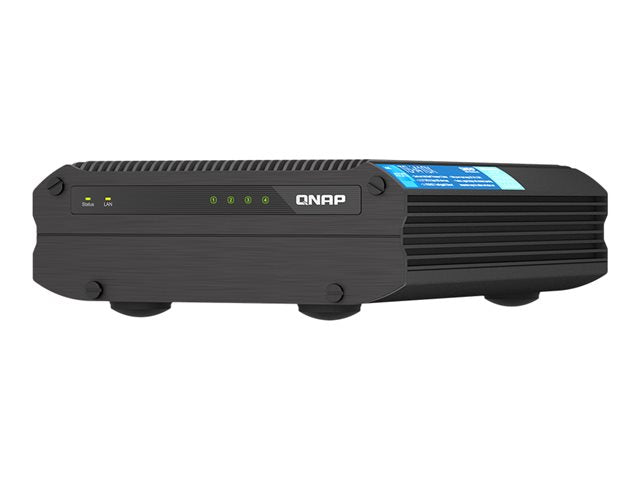

| With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40-70 Celsius (-40°F-158°F) while its 9 V-36 V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments. |
| Product Features |
-
Quad cores up to 3.0 GHz with AES-NI accelerated encryption
The TS-i410X is powered by Intel Atom x6425E quad-core processor (burst up to 3.0 GHz) and equipped with a large memory. With hardware-accelerated AES-NI encryption, the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6 Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications.
-
Long-term availability
The TS-i410X will be available and supported for an extended period, making it an ideal choice for MSP, SI, and other IT-related businesses and commercial use requiring matching NAS models for long-term projects.
-
Multiple USB ports for UPS, and more
With four USB 3.2 Gen 2 (10Gbps) ports, you can quickly backup and transfer large files to/from the TS-i410X. A wide range of USB devices, such as external hard drive or uninterruptible power supply (UPS), are also supported to provide greater functionality and application potential.
-
Industrial-grade hardened hardware design with 9 V-36 V DC wide-range power supply
With a fanless design and rock-solid chassis and compliant with the military-grade MIL-STD-810H the TS-i410X can operate in -40-70 Celsius (-40°F-158°F) environments. It can be used as a set-top box, or used with the optional VESA 75 wall-mount to provide installation flexibility. With the 9 V-36 V DC wide-range power supply, the TS-i410X is suitable for industrial and transportation applications with a variety of input voltage requirements.
-
Use with industrial wide temperature SSDs
When using industrial wide temperature SSDs, adjust the disk warning setting to 85°C (185°F) in the Storage and Snapshots to match the upper limit of SSD operating temperature. (The default temperature is 70°C for SSDs).
-
Build a high-speed 10GbE network environment
The TS-i410X provides two 10GBASE-T (10G/5G/2.5G/1G) ports. With QNAP's comprehensive, budget-friendly storage and networking solutions you can easily and flexibly upgrade workplace or home networks to handle bandwidth-hungry applications.
-
Direct 4K HDMI output for multimedia and virtual machines
The TS-i410X features Intel UHD Graphics that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K @ 30 Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution as well as intensive media storage, transfer and display. By connecting the TS-i410X to an HDMI display, you can operate virtual machines from Virtualization Station or Linux Station, or directly watch multimedia content saved on the NAS.
-
Smart surveillance solution for 24/7 security
QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-i410X and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
-
Comprehensive backup and disaster recovery solution
The TS-i410X supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
-
Multi-version snapshots mitigate ransomware threats
The TS-i410X supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
-
Comprehensive security and privilege settings
The TS-i410X is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
|
| General |
| Device Type |
NAS server |
| Host Connectivity |
10 Gigabit Ethernet |
| Total Storage Capacity |
0 GB |
| Installed Devices / Modules Qty |
0 (installed) / 4 (max) |
| Width |
18 cm |
| Depth |
25.4 cm |
| Height |
6.5 cm |
| Weight |
2.54 kg () |
| Processor / Memory |
| Processors Installed |
1 x Intel Atom X6425E |
| Number of Cores |
Quad-Core |
| Max Supported Qty |
1 |
| Max Turbo Speed |
3 GHz |
| RAM |
8 GB |
| Features |
Dual channel memory architecture |
| Flash Memory Installed |
4 GB |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SATA 6Gb/s |
| RAID Level |
JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Networking |
| Data Link Protocol |
1GbE, 2.5GbE, 5GbE, 10GbE |
| Network / Transport Protocol |
FTP, SFTP, TFTP, IPv4, IPv6, DDNS, PPTP, L2TP, IPSec, WireGuard, QBelt |
| Remote Management Protocol |
SNMP 2, SNMP 3, SSH, Telnet, HTTP, HTTPS, RADIUS |
| Network Services Compatibility |
Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Web-based Distributed Authoring and Versioning (WebDAV) |
| Performance |
Concurrent connections (CIFS): 1500 - (with maximum memory)
Maximum pool size: 308 TB
Maximum number of storage pool: 128
Maximum volume size: 250 TB
Maximum number of volume: 128
Maximum shared folder size: 250 TB
Maximum number of shared folder: 512
Maximum LUN size: 250 TB
Maximum number of targets LUN: 256
Minimum snapshot interval: 5 min
Maximum FTP connection: 1024
Local user account: 4096
Local group account: 512
Domain user/group account: 200000
Log recording: 3000 events per second
Virtual hosts: 32 |
| Features |
Built-in hardware transcoding, SSD cache, floating point unit, wake on LAN (WOL), Jumbo Frames support, built-in buzzer, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Level Migration, RAID Sync/Rebuild/Scrubbing, EXT4 file system, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), FTP server, FXP support, file station, Object Storage, domain security, Domain Controller, shared folder permission, advanced folder permission, Access Control List (ACL) support, user quota managerment, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, port trunking, VLAN support, DHCP server, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, firewall protection, Windows ODX, Qsync, HybridMount, hybrid backup sync, Hyper Data Protector, Boxafe, Qsirch, QuMagie, McAfee protection, HD Station, LDAP server, SQL Server, Qfiling, QmailAgent, QuWAN, DA Driver Analyzer, Q'center (NAS CMS) |
| Encryption Algorithm |
AES-NI, SSL, 256-bit AES, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3 |
| Expansion / Connectivity |
| Expansion Bays |
4 (total) / 4 (free) x hot-swap - 2.5" |
| Interfaces |
2 x Ethernet 10Gb - RJ-45
4 x USB 3.2 Gen 2 - Type A
1 x HDMI output |
| Miscellaneous |
| Cables Included |
1 x network cable |
| Features |
Dual boot, security lock slot (cable lock sold separately), Secure Erase, Smart Fan, scheduled power on/off, fanless |
| Security Slot Type |
Kensington security slot |
| Included Accessories |
16 x flat head screws (for 2.5" HDD) |
| Power |
| Power Device |
External power adapter |
| Voltage Required |
AC 100-240 V |
| Software / System Requirements |
| Storage Operating System |
QNAP QTS 5.0.0 |
| Software Included |
IronWolf Health Management |
| OS Required |
Apple MacOS X 10.10 or later, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Ubuntu 14.04, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
3.73 kg |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% RH (non-condensing) |
