| Marketing Description |

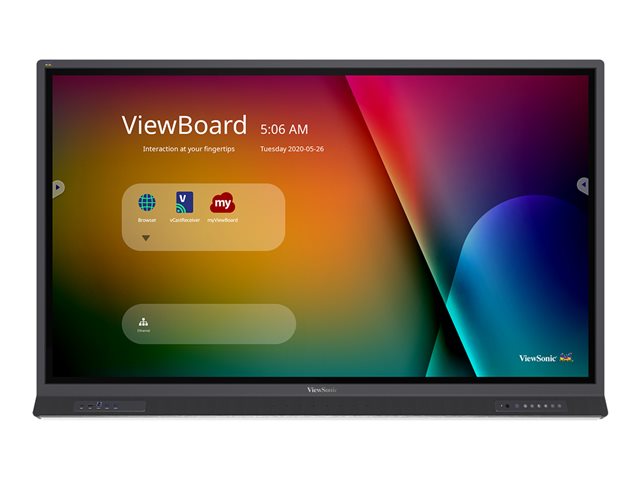

| From executive boardrooms to kindergarten classrooms, the ViewSonic ViewBoard IFP6562 enables limitless collaboration and endless innovation. Designed to help teams connect, collaborate, and create, this next-generation digital whiteboard delivers exactly what you need to move your ideas forward. A premium, state-of-the-art design features a bezel-less PCAP (projected capacitive) touchscreen with incredible 4K Ultra HD resolution. This highly accurate interactive screen provides for an incredibly natural and responsive handwriting experience. Using fingers, styluses, or both, multiple users can simultaneously write or draw on the huge 65" ViewBoard panel. What's more, meetings and presentations start fast thanks to convenient one-wire USB-C connectivity. |
| Product Features |
-
High-performance 4K touchscreen
Perfect for heavy usage in meeting rooms or classrooms, this display features an anti-glare and tempered glass screen for enhanced durability and clarity. 20-point PCAP (projected capacitive) touch technology delivers an ultra-smooth and natural handwriting experience, while 4K Ultra HD resolution provides incredibly vivid and lifelike images.
-
Sleek and slim design
Sleek, slim, and less than an inch thick, this premium LCD display looks as good as it performs. An edge-to-edge glass screen and bezel-less design enhance interactivity and viewing.
-
Convenient USB Type-C
Meetings and presentations start fast with single cable USB Type-C connectivity. Users can simply walk into a room, plug in their device, and immediately begin sharing info on the ViewBoard display. In addition to fast data, audio, and video transfer, USB Type-C also provides quick 65W charging and touch pass-through over a single cable.
-
Built-in microphone array
An integrated microphone array with echo cancellation and noise reduction technology delivers clear speech and sound during video conferences. The microphone can also pick up sound from up to 26 feet away.
|
| General |
| Product Type |
LED-backlit LCD flat panel display |
| Power Consumption Operational |
115 Watt |
| Diagonal Class |
65" |
| Diagonal Size |
64.5" |
| Commercial Use |
Yes - interactive |
| Combined With |
Touchscreen (multi touch) / 6-microphone array / optional slot-in PC capability |
| Series |
62 Series |
| TV Tuner |
No tuner |
| TV Tuner Presence |
No |
| Video Interface |
HDMI |
| HDMI Ports Qty |
4 ports |
| PC Interface |
VGA (HD-15), USB-C |
| Width |
149.2 cm |
| Depth |
7.8 cm |
| Height |
90.7 cm |
| Weight |
37.4 kg |
| Display |
| Colour Support |
1070000000 colours |
| Resolution |
3840 x 2160 |
| Display Format |
4K UHD (2160p) |
| Image Aspect Ratio |
16:9 |
| LCD Backlight Technology |
Direct LED |
| Coating |
9H Hard |
| Image Contrast Ratio |
5000:1 |
| Brightness |
450 cd/m² |
| Viewing Angle |
178 degrees |
| Viewing Angle (Vertical) |
178 degrees |
| Touchpoints Qty |
20 |
| Response Time |
6.5 ms |
| Features |
Ultra Fine Touch Technology (UFT), Open Pluggable Specification slot, Low Blue Light Technology, Frame Rate Control (FRC), 8-bit support |
| Stands & Mounts |
| Flat Panel Mount Interface |
600 x 400 mm |
| VESA Compatibility |
Yes |
| Media Player |
| USB Port |
Yes |
| Configuration |
ARM Cortex-A73 Dual-Core + ARM Cortex-A53 Dual-Core - 3 GB - 32GB eMMC |
| Remote Control |
| Type |
Remote control |
| Battery Form Factor |
AAA type |
| Battery Included |
Yes |
| Battery Included Qty |
2 |
| Audio System |
| Speaker System |
2 speakers, subwoofer |
| Speakers |
2 x main channel speaker - 12 Watt
1 x subwoofer - 15 Watt |
| Network & Internet Multimedia |
| Connectivity |
LAN |
| LAN Protocol |
Fast Ethernet |
| Connections |
| Connector Type |
4 x HDMI input
VGA input
RS-232 input
HDMI output
Audio output
SPDIF output
2 x LAN
USB 2.0
5 x USB 3.0
2 x touch
USB-C with 65W Power Delivery |
| Miscellaneous |
| Included Accessories |
2 pen styluses, RS232 adapter, 5 clamps, 8 screws, plate |
| Cables Included |
USB-C cable
HDMI cable
Touch cable |
| Compliant Standards |
cTUVus, FCC, ICES-003, Mexico NOM, Mexico Energy label, CE/EMC, CB, LVD, GOST-R, EAC, UkrSEPRO, UKCA, Low Blue Light certified (LBL), Green BOM, RoHS, REACH, ERP, SCIP, WEEE, TPCH, CA65, PAIA |
| Sustainability Information |
| EPEAT Compliant |
EPEAT Silver |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
8.0 |
| Power |
| Power Device |
Power supply |
| Input Voltage |
AC 100-240 V (50/60 Hz) |
| Power Consumption (Off Mode) |
0.5 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Dimensions & Weight (Shipping) |
| Width (Shipping) |
160.7 cm |
| Depth (Shipping) |
21.5 cm |
| Height (Shipping) |
101 cm |
| Weight (Shipping) |
48.9 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% RH (non-condensing) |
