| Marketing Description |

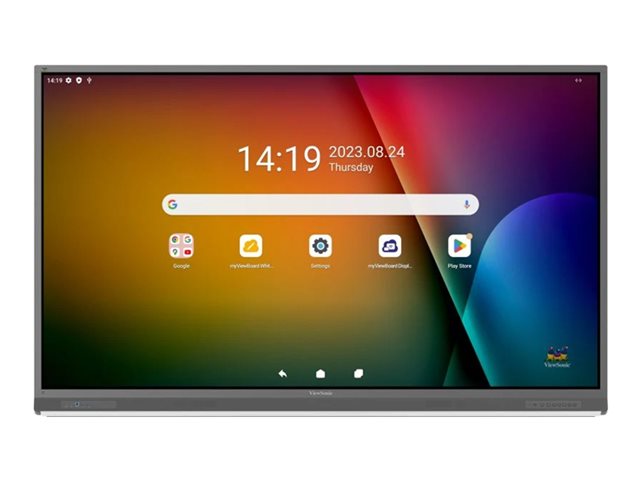

The ViewSonic ViewBoard IFP8652-2F is designed to enhance any presentation, meeting, or collaborative session. This 86-inch LED-backlit LCD flat panel display not only offers a 4K UHD resolution for incredibly vivid visuals but also integrates technology to support up to 40 touchpoints, making it ideal for interactive communication. With its built-in 8-array microphone and a robust speaker system that includes a subwoofer, it delivers clear audio for an immersive experience.
Efficiency and connectivity are at the core of the IFP8652-2F's design. It is ENERGY STAR certified and EPEAT Silver compliant, ensuring energy use is optimized without compromising performance. The display offers a variety of connectivity options, including HDMI, VGA, DisplayPort, and USB-C, facilitating easy integration with a wide range of devices. Whether it's for educational purposes, business meetings, or creative sessions, the ViewSonic ViewBoard IFP8652-2F is engineered to deliver interactive experiences. |
| Product Features |
-
Enhanced connectivity
Equipped with a wide range of ports including HDMI, VGA, DisplayPort, and USB-C, this ViewSonic ViewBoard IFP8652-2F ensures seamless connection to a variety of devices for an integrated user experience.
-
Immersive audiovisual experience
Featuring a 86-inch 4K UHD display with LED backlight and a dynamic contrast ratio of 5000:1, complemented by a built-in speaker system including a subwoofer, this model delivers vivid image clarity and powerful sound.
-
Interactive technology
With Ultra Fine Touch Technology (UFT) and a multi-touch screen supporting up to 40 touchpoints, users can enjoy an intuitive and responsive touch experience, ideal for interactive communication and presentations.
-
Smart and efficient design
This ENERGY STAR certified and EPEAT Silver compliant display not only offers energy efficiency but also includes features like Eye Care and Flicker-Free technology, ensuring a comfortable viewing experience for extended periods.
-
Robust connectivity options
The inclusion of USB-C with DisplayPort, Ethernet, and Power Delivery alongside traditional connectivity options ensures this display can serve as a hub for both power and data, simplifying workspace setups.
|
| General |
| Product Type |
LED-backlit LCD flat panel display |
| Power Consumption Operational |
148.12 Watt |
| Diagonal Class |
86" |
| Diagonal Size |
85.6" |
| Commercial Use |
Yes - interactive |
| Combined With |
Touchscreen (multi touch) / 8-microphone array |
| Series |
IFP52-2F Series |
| Operating System |
Android OS 13 |
| TV Tuner |
No tuner |
| TV Tuner Presence |
No |
| Sensors |
Light sensor |
| Video Interface |
HDMI |
| HDMI Ports Qty |
3 ports |
| PC Interface |
VGA (HD-15), DisplayPort, USB-C |
| Modes |
Landscape mode |
| Width |
197.116 cm |
| Depth |
12.138 cm |
| Height |
121.254 cm |
| Weight |
70 kg |
| Display |
| LCD Display Technology |
VA |
| Resolution |
3840 x 2160 |
| Display Format |
4K UHD (2160p) |
| Image Aspect Ratio |
16:9 |
| Frame Rate & Enhancement Technology |
60 Hz Refresh Rate |
| LCD Backlight Technology |
Direct LED |
| Coating |
Anti-glare, 7H Hard |
| Image Contrast Ratio |
4000:1 |
| Dynamic Contrast Ratio |
5000:1 |
| Brightness |
450 cd/m² |
| Viewing Angle |
178 degrees |
| Viewing Angle (Vertical) |
178 degrees |
| Touchpoints Qty |
40 |
| Response Time |
7 ms |
| Backlight Life |
50,000 hours |
| Features |
Eye Care, Open Pluggable Specification slot, Flicker free technology, Ultra Fine Touch Technology (UFT), USB SmartPort, 1.07 billion colours, CEC Support, ARC Support through HDMI, Pen-On-Paper technology |
| Stands & Mounts |
| Flat Panel Mount Interface |
800 x 600 mm |
| VESA Compatibility |
Yes |
| Media Player |
| USB Port |
Yes |
| Configuration |
ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 8 GB - 64 GB |
| Remote Control |
| Type |
Remote control |
| Battery Form Factor |
AAA type |
| Battery Included |
Yes |
| Battery Included Qty |
2 |
| Audio System |
| Speaker System |
2 speakers, subwoofer |
| Output Power / Total |
40 Watt |
| Features |
Built-in 8-array microphone |
| Speakers |
2 x main channel speaker - 20 Watt
1 x subwoofer - 20 Watt |
| Network & Internet Multimedia |
| Connectivity |
LAN |
| LAN Protocol |
Gigabit Ethernet |
| Connections |
| Connector Type |
3 x HDMI input
VGA input
DisplayPort input
RS-232 input
Audio input
2 x LAN
4 x USB 3.0
USB 2.0 - rear
Audio output
HDMI output
SPDIF output
3 x USB 3.0
USB-C with DisplayPort 1.2, Ethernet 100M, 65W Power Delivery - front
USB-C with DisplayPort 1.2, Ethernet 100M, 100W Power Delivery - rear
USB-C data transfer only - rear |
| Miscellaneous |
| Included Accessories |
Camera plate, 5 clamps, 8 x screws, RS232 adapter, myViewBoard WhiteBoard software, 2 x touch pen |
| Cables Included |
Touch cable - 3 m
RS-232 adapter
HDMI cable - 3 m |
| Compliant Standards |
FCC Class B certified, CB, RoHS, WEEE, LVD, ERP, CE/EMC, REACH SvHC, DOE, Energy Efficiency Label (EEL), RoHS DoC, Green BOM, US NRTL w/ CA, Google EDLA |
| Sustainability Information |
| EPEAT Compliant |
EPEAT Silver |
| ENERGY STAR Certified |
Yes |
| Power |
| Power Device |
Power supply |
| Input Voltage |
AC 100-240 V |
| Power Consumption (Off Mode) |
0.5 Watt |
| Dimensions & Weight (Shipping) |
| Width (Shipping) |
211.6 cm |
| Depth (Shipping) |
22.5 cm |
| Height (Shipping) |
133 cm |
| Weight (Shipping) |
83 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% RH (non-condensing) |
