| Marketing Description |

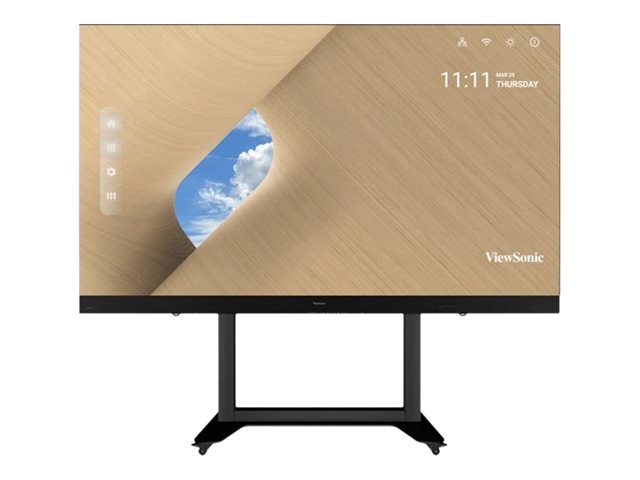

| The ViewSonic LDS135-151 is a 135" All-in-One Direct View LED Display Solution Kit that boasts instant use, easy delivery, and convenient maintenance, making it an ideal rental-ready solution for events, exhibitions, or any other short-term usage. The pre-assembled design and built-in motorized height adjustment stand enables effortless set up within just a few minutes. Delivery convenience is greatly enhanced with foldable screen design, reducing the packaging size of the movable flight case, thus minimizing shipping costs. With the seamless large screen and superior built-in Harman Kardon speakers, be ready to impress your audience everywhere from high-end board rooms and receptions to galleries, auditoriums, and other large venues. |
| Product Features |
-
Pre-assembled kit ready for instant use
The 135" LED display comes pre-assembled with LED modules, cabinets, a system control box, and the motorized floor stand. It can be set up and is ready to use within just a few minutes, saving time and effort as well as lowering the technical barrier for installers.
-
Foldable screen design enhancing mobility
Moving between spaces is greatly enhanced as the LDS series can not only be transported via traditional freight elevators but also in large passenger elevators, minimizing cost and maximizing convenience.
-
Simple delivery with movable flight case
The movable flight case design not only provides secure protection of the advanced LED display, but also makes for swift and effortless delivery from one venue to another.
-
Built-in motorized height adjustment stand
With a built-in motorized floor stand, you can easily adjust the height to a maximum range of 65cm with a press of control buttons. To facilitate recurring use of the stand, you can conveniently save up to 3 different sets of height preference.
-
Easy to move around with 360° silent wheels
With the 360° silent wheels and push-button locking, freely move and position the impressive LED display anywhere you want - even after unpacking it from the flight case.
-
All-in-one integration without complicated setup
Free yourself from a complicated setup of power supplies, control systems, stitching machines, etc. - all you need to do is turn the display on.
-
Engaging large screen and bezel-free design
With a huge 135" screen, this frameless display seamlessly delivers content without stitching bezels for a more immersive visual experience. Impress the audience with engaging visual impact from everywhere.
-
Powerful sound by Harman Kardon speakers
Equipped with studio-grade Harman Kardon speakers, soak in high-fidelity audio that is tuned to pinpoint clarity no matter where you're standing. The dual 20W sets of professional passive radiators, woofers, and tweeters deliver impressive sound for a true audiovisual feast.
-
Wireless content sharing solution across devices
The pre-installed ViewBoard Cast enables content to be streamed from mobile devices onto the display over wireless networks, whether one-to-one or many-to-one.
-
Multiple content in a single screen
Video conferences and online collaborations will now be more flexible and creative with the LED display's intuitive split screens. The display can support Picture-by-Picture or Picture-in-Picture (a screen within another screen) scenarios in real-time.
|
| General |
| Product Type |
LED-backlit LCD flat panel display |
| Power Consumption (Max) |
2300 Watt |
| Power Consumption Operational |
1200 Watt |
| Diagonal Class |
135" |
| Commercial Use |
Yes - digital signage |
| Operating System |
Android OS 9.0 |
| TV Tuner |
No tuner |
| TV Tuner Presence |
No |
| Video Interface |
HDMI |
| HDMI Ports Qty |
6 ports |
| PC Interface |
USB, serial RS-232 |
| Modes |
Landscape mode |
| Design |
Seamless Design, Non-Bezel Design |
| Width |
301 cm |
| Depth |
77 cm |
| Height |
259.8 cm |
| Weight |
225 kg |
| Display |
| Pixel Pitch |
1.56 mm |
| LED Type |
3-in-1 SMD |
| Resolution |
1920 x 1080 |
| Display Format |
1080p |
| Image Aspect Ratio |
16:9 |
| Frame Rate & Enhancement Technology |
4440 Hz Refresh Rate |
| LCD Backlight Technology |
Direct View LED |
| Image Contrast Ratio |
6000:1 |
| Brightness |
600 cd/m² |
| Viewing Angle |
160 degrees |
| Viewing Angle (Vertical) |
160 degrees |
| Backlight Life |
100,000 hour(s) |
| Operation Hours / Days |
24 / 7 |
| Features |
ViewBoard Cast software, ViewSonic Cinema SuperColor+ Technology, 24/7 operation time |
| Stands & Mounts |
| Stand |
Included |
| Stand Design |
Floor standing |
| Stand Colour |
Black |
| Stand Features |
Height adjustable |
| Video Features |
| Input Video Formats |
480p, 720p, 1080i, 1080p, 480i, 576i, 576p, 2160p |
| Supported Computer Resolutions |
640 x 480 (VGA), 1920 x 1080 |
| Media Player |
| USB Port |
Yes |
| USB Ports Qty |
3 |
| Configuration |
64 GB |
| Remote Control |
| Type |
Remote control |
| Audio System |
| Speaker System |
2 speakers |
| Output Power / Total |
40 Watt |
| Features |
Harman/Kardon Speaker System |
| Speakers |
2 x speaker - 20 Watt |
| Network & Internet Multimedia |
| Connectivity |
Wi-Fi, LAN |
| Connections |
| Connector Type |
6 x HDMI input
3 x USB 2.0
LAN
USB
Audio line-out
Audio line-out
2 x HDMI output
RS-232
Infrared input |
| Miscellaneous |
| Included Accessories |
Maintenance tool, 7 x LED PCB |
| Cables Included |
IR extender cable
Network cable - 5 m |
| Compliant Standards |
IP30 |
| Power |
| Power Device |
Power supply |
| Input Voltage |
AC 100-120/220-240 V (50/60 Hz) |
| Power Consumption Sleep |
0.5 Watt |
| Power Consumption (Off Mode) |
0 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - parts and labour - 5 years - on-site |
| Dimensions & Weight (Shipping) |
| Width (Shipping) |
190 cm |
| Depth (Shipping) |
203.2 cm |
| Height (Shipping) |
80 cm |
| Weight (Shipping) |
330 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
