| Marketing Description |

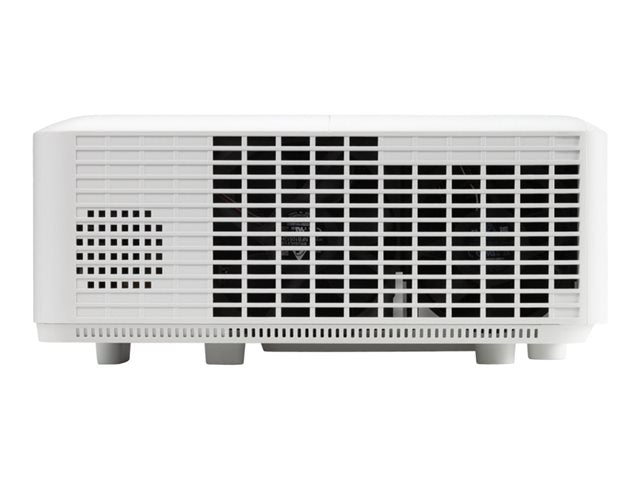

The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Wide lens shift, 1.6x optical zoom, 360° projection, and portrait mode combine for incredible flexibility that gives life to captivating creative installations, especially ideal for auditoriums, board rooms, commercial displays, restaurants, and sports bars.
Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. Add to that the compact size and the built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness. |
| Product Features |
-
High brightness
Packed with 6 000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.
-
2nd generation Laser Phosphor technology
Thanks to the 2nd generation Laser Phosphor technology, it improves brightness (by 20%), heat-resistance and reduces the product size in addition to excellent color performance, lamp-free design and instant on/off switch.
-
Larger screen size, lower cost-per-inch
Flexible installation and effortless transportation of the projector allows for an up-to-300" image size, which is much larger and easier to install than multiple commercial displays combined.
-
Installation flexibility
The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy. It provides flexible installation options with a wide adjustable range and less placement restrictions.
-
Adaptable to any environment
Equipped with a 1.6x optical zoom lens, the projector empowers users to choose the most ideal set-up location within a wider throw distance range that doesn't interfere with existing interior design while still getting the desired image size.
-
360° creative applications
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.
-
90° portrait mode
Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.
|
| General |
| Device Type |
DLP projector - 4K |
| Built-in Devices |
Keypad, infrared receiver |
| Networking |
Ethernet |
| Projector |
| Microdisplay |
DarkChip 3 |
| Brightness |
6000 ANSI lumens |
| Contrast Ratio |
3000000:1 (dynamic) |
| Image Size |
76.2 cm - 762 cm |
| Projection Distance |
88 cm - 14.09 m |
| Throw Ratio |
1.36 - 2.18:1 |
| Resolution |
Ultra HD 4K - WUXGA (1920 x 1200) (native) / 3840 x 2160 (resized) |
| Native Aspect Ratio |
16:10 |
| Colour Support |
1.07 billion colours |
| Max Sync Rate (V x H) |
120 Hz x 135 kHz |
| Bulb type |
2 x laser/phosphor 74 Watt |
| Bulb life cycle |
Up to 20000 hours - normal mode |
| Controls & Adjustments |
Keystone correction |
| OSD Languages |
Czech, Indonesian, Thai, Chinese (traditional), Chinese (simplified), Vietnamese, English, German, French, Italian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Turkish, Arabic, Japanese, Korean, Indic (Indian Languages) |
| Features |
4K HDR technology, Hybrid Log-Gamma (HLG), portrait mode, 360° projection, 24/7 operation, Crestron RoomView, AMX Control System, Extron Control System, ViewSonic SuperColor |
| Lens |
| Type |
Zoom lens |
| Focus Type |
Manual |
| Zoom Type |
Manual |
| Zoom Factor |
1.6x |
| Keystone Correction Direction |
Horizontal, vertical |
| Vertical Keystone Correction |
-40 / +40 |
| Horizontal Keystone Correction |
-40 / +40 |
| Lens Shift Direction |
Horizontal, vertical |
| Vertical Lens Shift |
50% / 50% |
| Horizontal Lens Shift |
23% / 23% |
| Video Input |
| TV System |
NTSC, SECAM, PAL |
| Video Interfaces |
HDMI, HDBaseT, composite video, VGA |
| Video Modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Speakers |
| Type |
Internal |
| Sound Output Mode |
Stereo |
| Output Power / Channel |
10 Watt |
| Speakers |
2 x right / left channel |
| Expansion / Connectivity |
| Interfaces |
1 x VGA input - 15 pin HD D-Sub (HD-15)
1 x composite video input - RCA
1 x audio line-in - mini-phone 3.5 mm
1 x audio line-in - RCA x 2
1 x S-video input
2 x HDMI input - 19 pin HDMI Type A
1 x 3D Sync in
1 x VGA output - 15 pin HD D-Sub (HD-15)
1 x audio line-out - mini-phone 3.5 mm
1 x USB (power only) - 4 pin USB Type A (power only)
1 x serial RS-232 - 9 pin D-Sub (DB-9)
1 x network - RJ-45
1 x 12V programmable trigger - mini-phone 3.5 mm
1 x HDBaseT - RJ-45 |
| Miscellaneous |
| Included Accessories |
Remote control with laser pointer |
| Cables Included |
1 x VGA cable |
| Security Features |
Security lock slot (cable lock sold separately) |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
HDCP 2.2, IP5X |
| Power |
| Power Source |
AC |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational |
450 Watt |
| Power Consumption Stand by |
0.5 Watt |
| Dimensions & Weight |
| Width |
40.5 cm |
| Depth |
30.5 cm |
| Height |
14.5 cm |
| Weight |
6.5 kg |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
8.9 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years
Limited warranty - 5 years / 20000 hours with product registration |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Sound Emission (Economic Mode) |
29 dB |
